Vibration damper

رقم الصنف : 215881

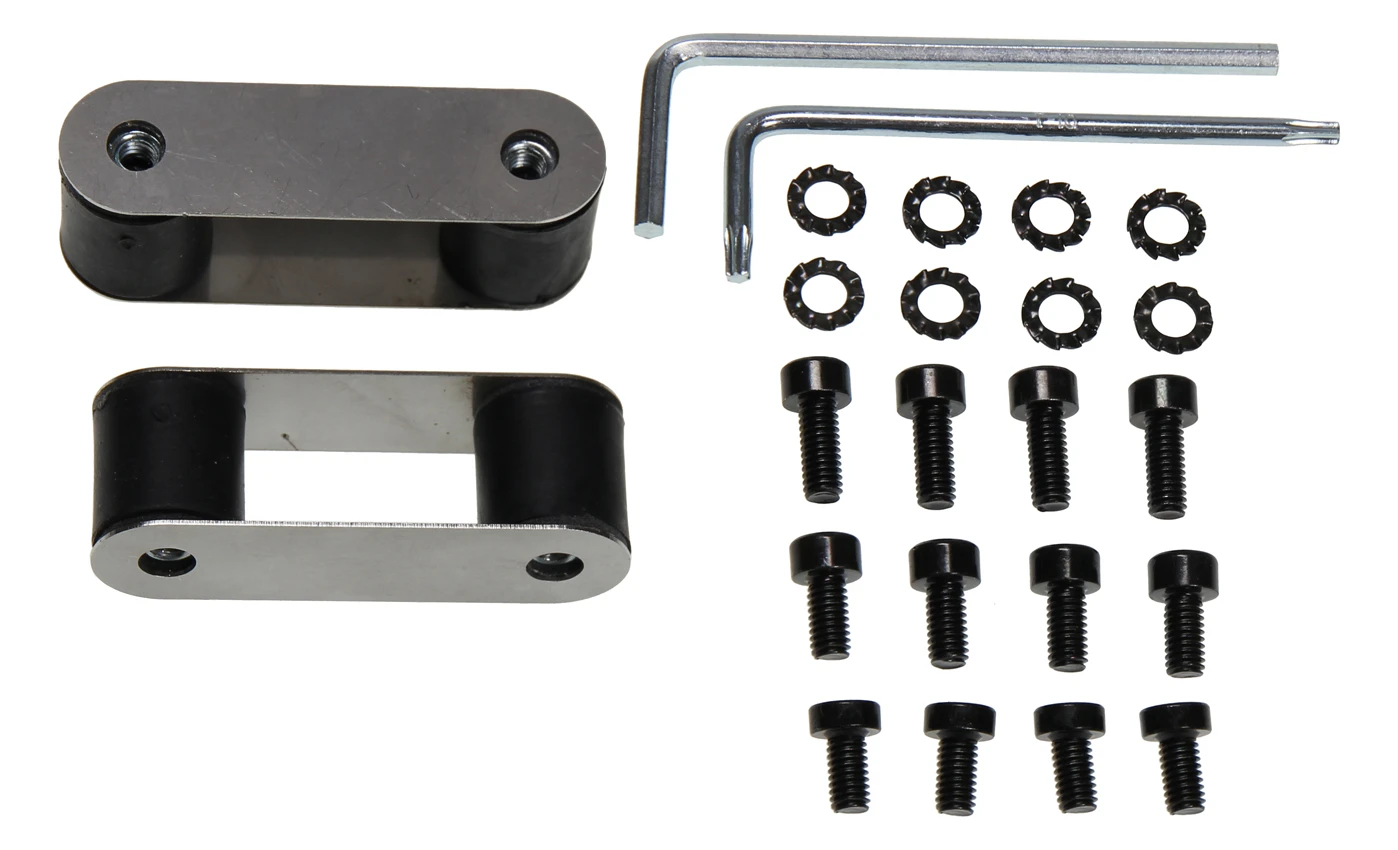

Vibration dampener, hard. For installations weighing up to 1500g.

الكمية

إنتهى من المخزن

الوصف

Vibration dampener, hard. For installations weighing up to 1500g.

معلومات فنية

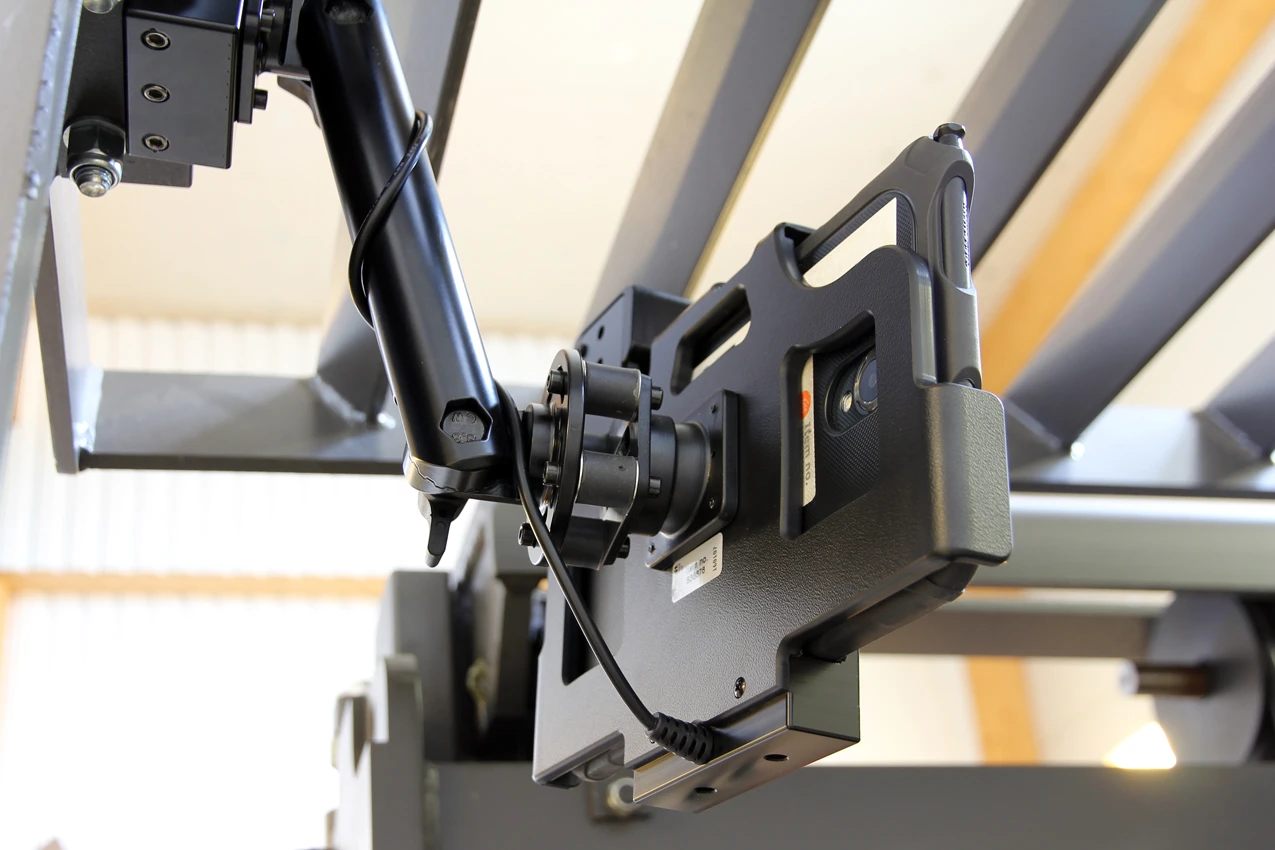

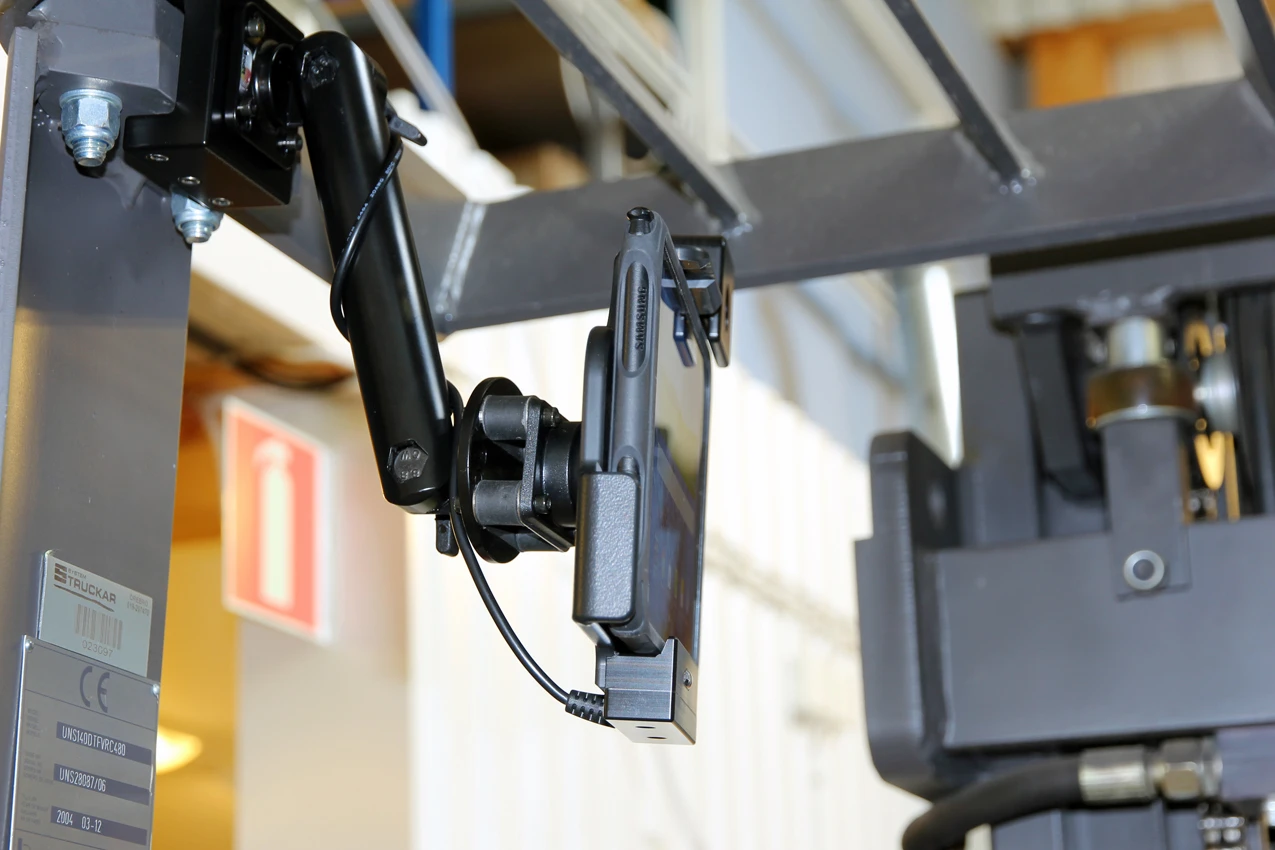

An accessory for reducing vibrations and chocks, for use in rough environments. Is to be placed between the holder and the mounting platform. Can be used for installations weighing up to 1500g. Builds 17mm.

التعليمات

Read all of the instructions and look at the pictures before the installation.

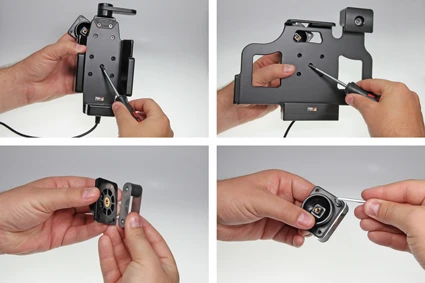

  • 1. Mount the vibration pads onto a holder with tilt swivel: Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the vibration pads onto the back of the attaching plate. Use the short screw with small head to attach the vibration pads onto the mounting plate. Continue to step 2.
  • Technical Information Illustration

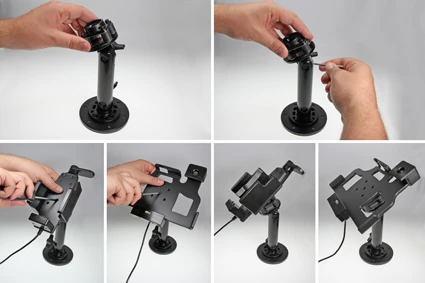

  • 2. Place the attaching plate onto the desired position. Screw the attaching plate into place, for mounting surface ≤ 3mm thick use the short screw. place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Screw the holder onto the attaching plate. Tighten the screw so the holder is firmly in place, but still can be adjusted.
  • Technical Information Illustration

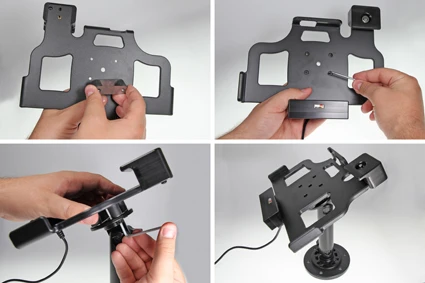

  • 3. Mount the vibration pads onto a holder without tilt swivel: Place the vibration pads on the back side of the holder. Use the short screw with small head to fasten the pad onto the holder. Place the holder onto the desired position and screw into place, for mounting surface ≤ 3mm thick use the short screw.
  • Technical Information Illustration

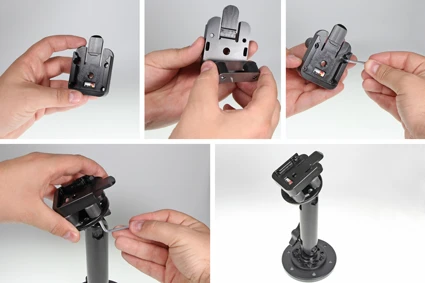

  • 4. Mount the vibration pads onto a MultiMoveClip: Place the vibration pads onto the back side of the MultiMoveClip. Use the short screw with small head to fasten the pad onto the MultiMoveClip. Place the MultiMoveClip onto the desired position and screw into place, for mounting surface ≤ 3mm thick use the short screw.
  • Technical Information Illustration
