Tough Sleeve
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The choice for you who use your device every day in a rough environment! Your device is protected in a tough sleeve, in the same time as it gets charged. You can easily take the device with you and move it between vehicle-vehicle or vehicle-office.

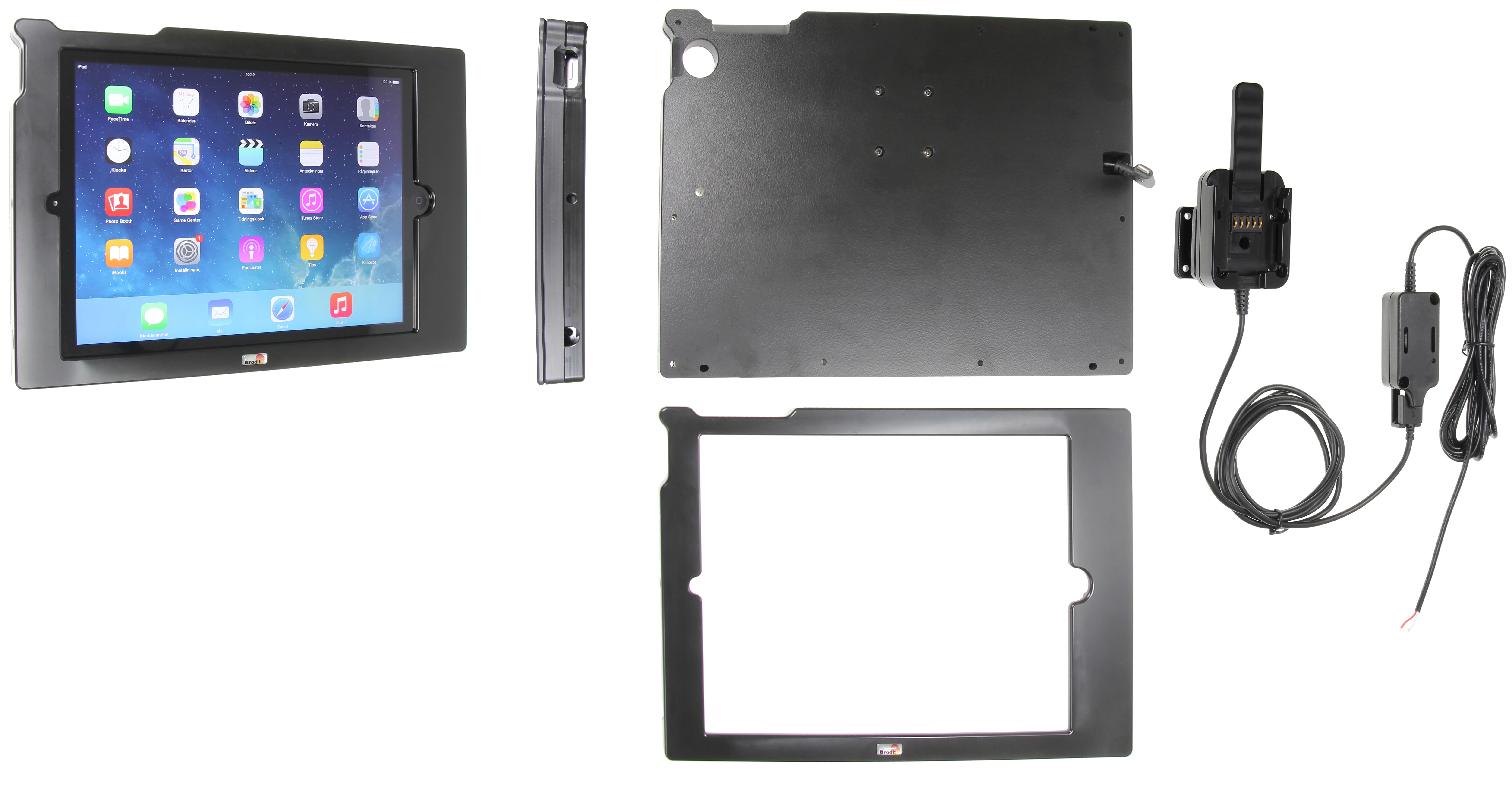

First you place your device in the tough sleeve, which is a slimmed version of a rubost case/jacket with built in bumpers (the Heavy Duty Tough Sleeve). The bumpers help to protect the device in case of minor bumps and drops. Then you attach the sleeve onto an active MultiMoveClip by pressing it downward onto the mount. When it snaps into place, the charging is automatically connected via the Sliding Power Block. Thanks to the quick connector, you also remove the sleeve from the MultiMoveClip in an instant. The charging connector is durable to withstand frequent wear in everyday professional use.

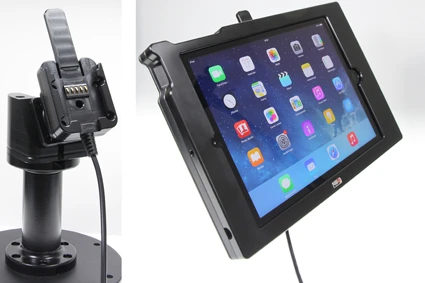

The device is firmly in place in the sleeve and can not be removed without loosening the screws. You have full access to the camera and all buttons when the device is in the sleeve. For fixed installation. 12/24 V. The product is E-approved. Connect the power cable with a 2 A fuse. Professional installation recommended. Equipped with a tilt swivel so you can easily switch between portrait and landscape mode. Made of black ABS- och Acetal plastic. Made in Sweden. Attach onto a Pedestal Mount or extra strength mounting platform.

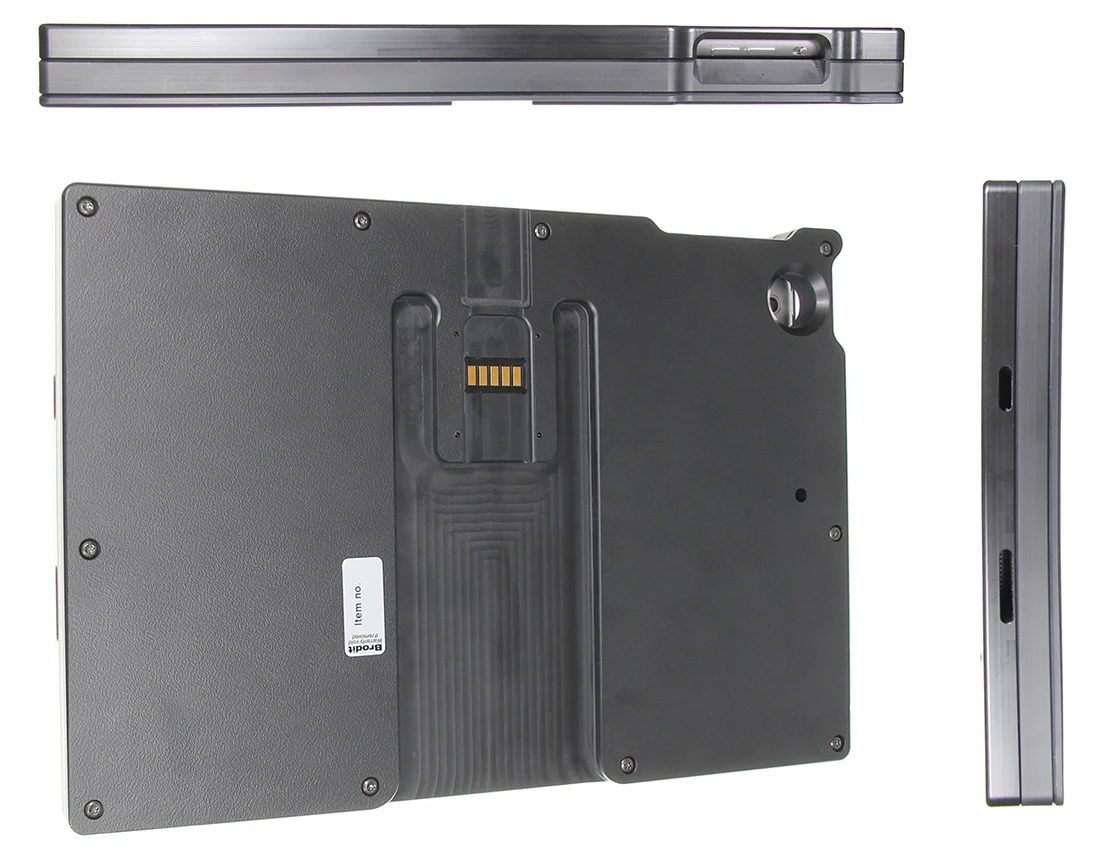

Sleeve Dimensions: 255 x 190 x 24 mm (W x H x D mm)
Sleeve Weight: 825 g
The MultiMoveClip with Sliding Power block builds 35 mm to the sleeve depth. It weighs 115-315 g depending on model.
Charging specifications:
Input voltage: DC/10-30V
Charging voltage: DC/4.75-5.3V
Output current(Typ): 2.0A
Input & output protection: Input polarity reversal/Output over voltage/Output over current/Output short protection
LED charging indicator: Power input indicator(Green), Ovp/Ocp/Output short(Red)
Operating temperature: 0°C ~ +40°C
Storage temperature: -20°C ~ +80°C
RoHS compliant: ROHS
دليل تركيب المنتج
رقم الخطوة 1

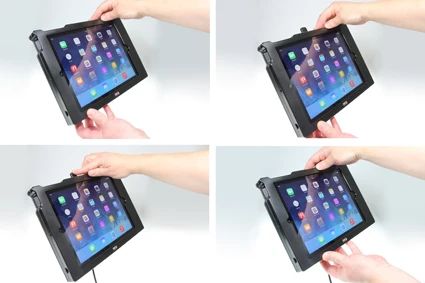

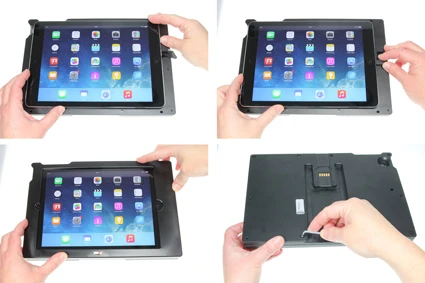

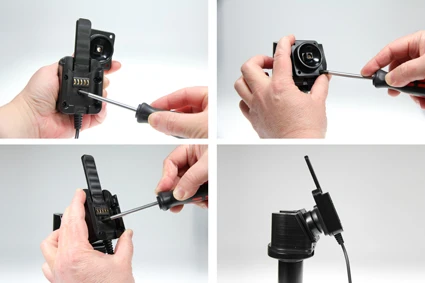

Connect White wire to a Negative Ground connection of vehicle or vehicle chassis. 2. Connect Red wire to a 12/24 Volt power supply in vehicle that is controlled by ignition switch of vehicle. 1. Place device onto backpart. Connect charging STRAIGHT into to device (connecting it askew means risk of damages). Place front frame over device. Screw enclosed screws into place on back side. Now device can not be removed without loosening screws. 2. Loosen screw in center of Power Block and remove tilt swivel attaching plate on back. Place attaching plate onto desired position and screw into place with enclosed screws. Place Power Block over attaching plate so screw fits. Tighten screw so MultiMoveClip is firmly in place, but still can be adjusted. 3. Place sleeve above Power Block and slide/press it straight downward into Power Block so it snaps into place (connects to charging). Press forward on release arm on Power Block so sleeve is set free. Press/lift sleeve straight upward. 4. The product is in place.
