Tough Sleeve

رقم الصنف : 216181

Wall mount. With Vesa 75mm and with ø 4 mm AMPS-holes.

Pepperl+Fuchs Tab-IND 10

Zebra ET51 10.1

more...

الكمية

إنتهى من المخزن

الوصف

Wall mount. With Vesa 75mm and with ø 4 mm AMPS-holes.

معلومات فنية

This holder is to be used when you want to secure your tablet and still have it easy accessable. The holder is also perfect for use in stores, at exhibitions and any place where you want to use your tablet without having it easy removable. The holder is made of extra strong plastic and is equipped with a lock. In order to remove the tablet from the holder you need the key, two keys are included.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

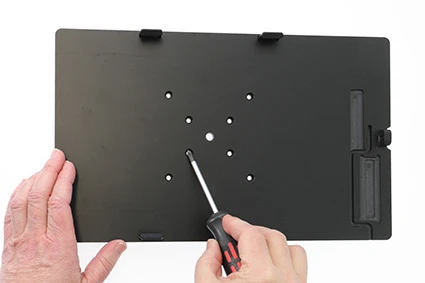

  • 1. Place the holder onto the desired position and screw into place with the enclosed screws.
  • Technical Information Illustration

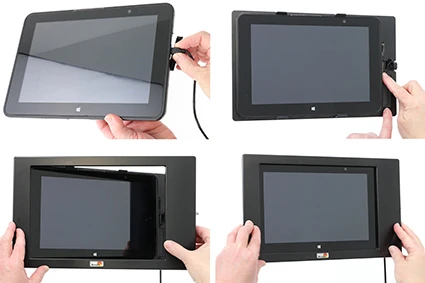

  • 2. Carefully connect the charging connector to the device. NOTE: It is very important to hold the connector straight in front of the device and connect it straight into the device (if you angle the connector/place it askew into the device, you risk to damage the connector/device). Place the device onto the backpart of the sleeve. Pull the cable down into the groove. Place the frame over the unit, push the frame into place.
  • Technical Information Illustration

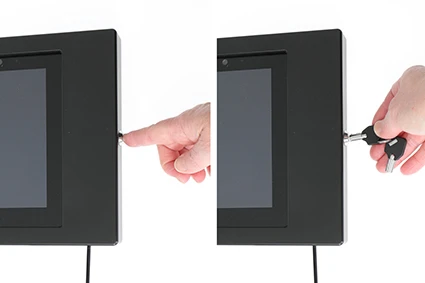

  • 3. To lock: Press the lock button. To unlock: Unlock with key.
  • Technical Information Illustration

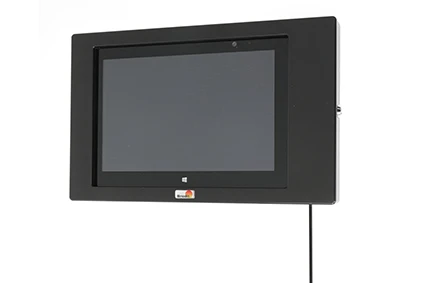

  • 4. The mount is in place.
  • Technical Information Illustration

    التوافق

    • Pepperl+Fuchs : Tab-IND 10
    • Zebra : ET51 10.1
    • Zebra : ET50 10.1
