Table Stand
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

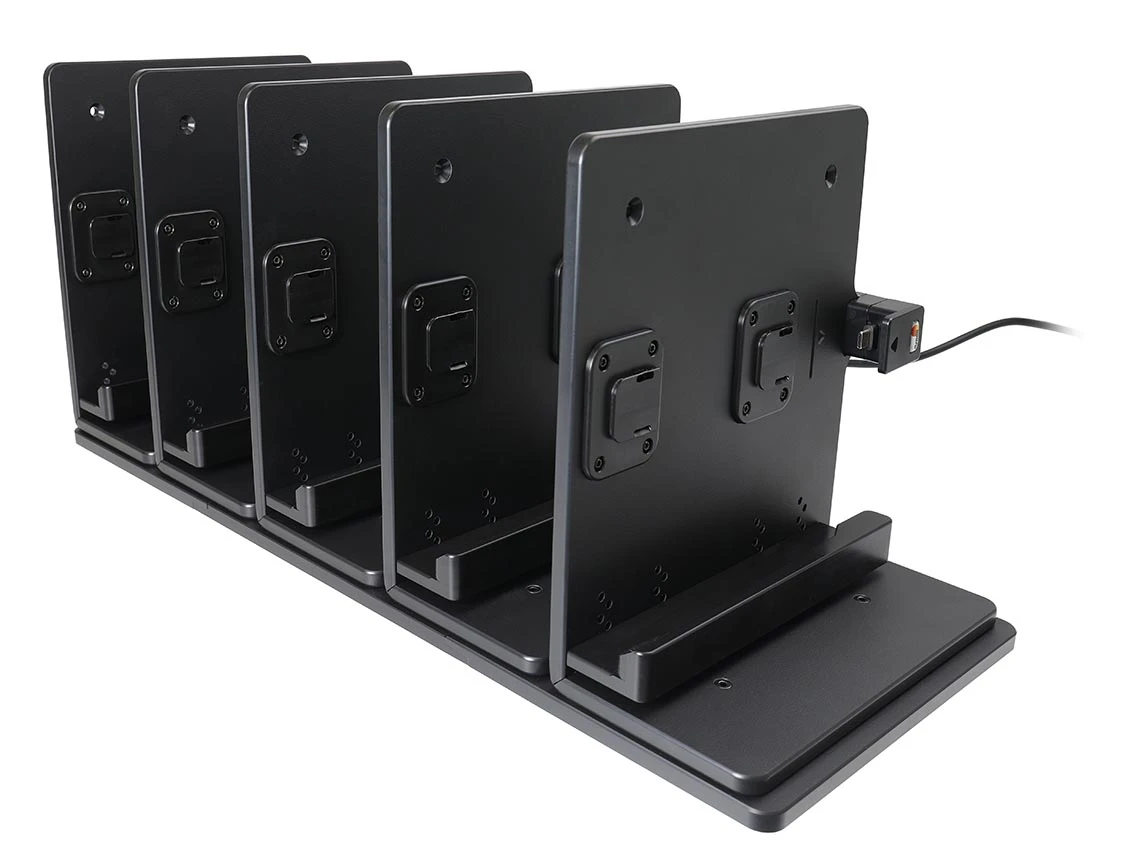

This table stand includes five ModTek mounts, designed for ModTek Case. Perfect for organizing, charging and storing multiple tablets on one common surface. The table stand includes a powerful 5-port multi-charger with support for up to 300 W output, with each USB-C port supporting up to 60 W.
دليل تركيب المنتج
رقم الخطوة 1

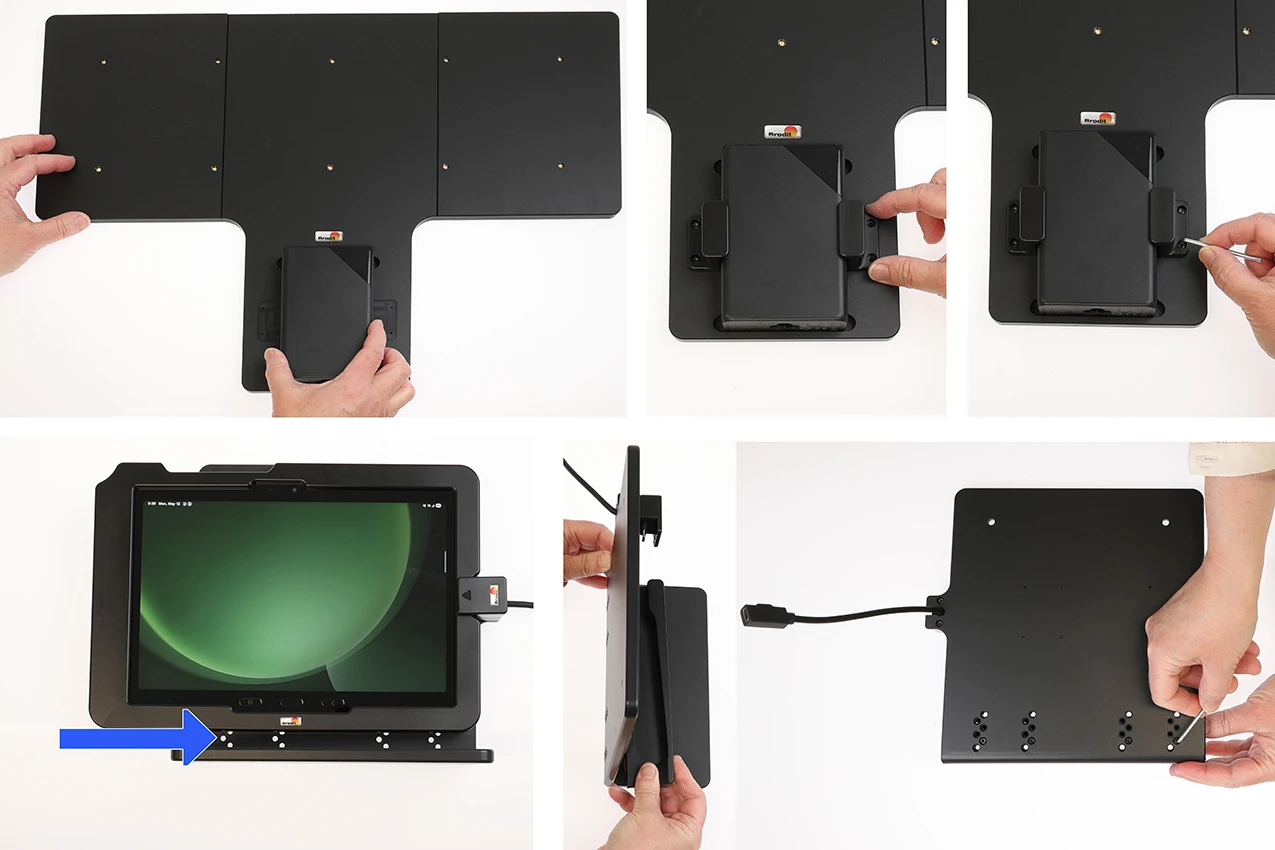

Assembling base plate: Arrange the parts as shown in the picture. Hook the side plates onto the center plate. Attach charger onto base plate: Position the USB-C charger in the cutout so the USB-C slots are facing the center plate. Place both mounts on each side of the charger so the holes match. Attach the mounts with the included screws so the charger sits properly in place. Adapt holder to device size: Slide the device slideways into the holder. Identify the holes placed nearest below the device. Attach the support onto the holder in that row of holes, using the included screws. Assemble all holders the same way.
رقم الخطوة 2

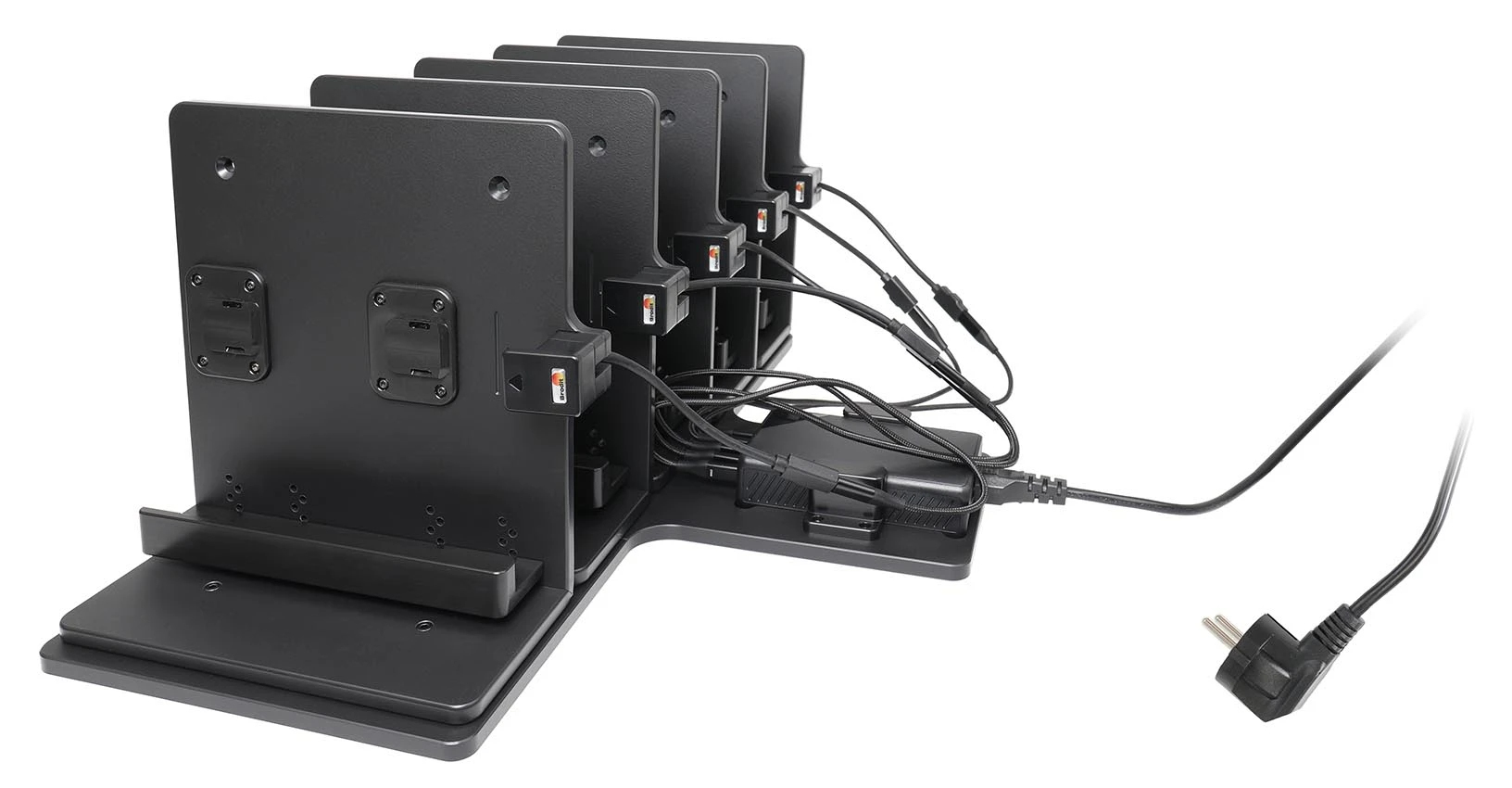

Attach holders onto base plate: Place the holder onto the base plate so the USB-C cable is facing the charger, and the holes match. Attach all holders in place the same way using the included screws. Connect cables to charger: Connect all USB-C cables between the charger and each holder. Connect the power cable to the charger.
رقم الخطوة 3

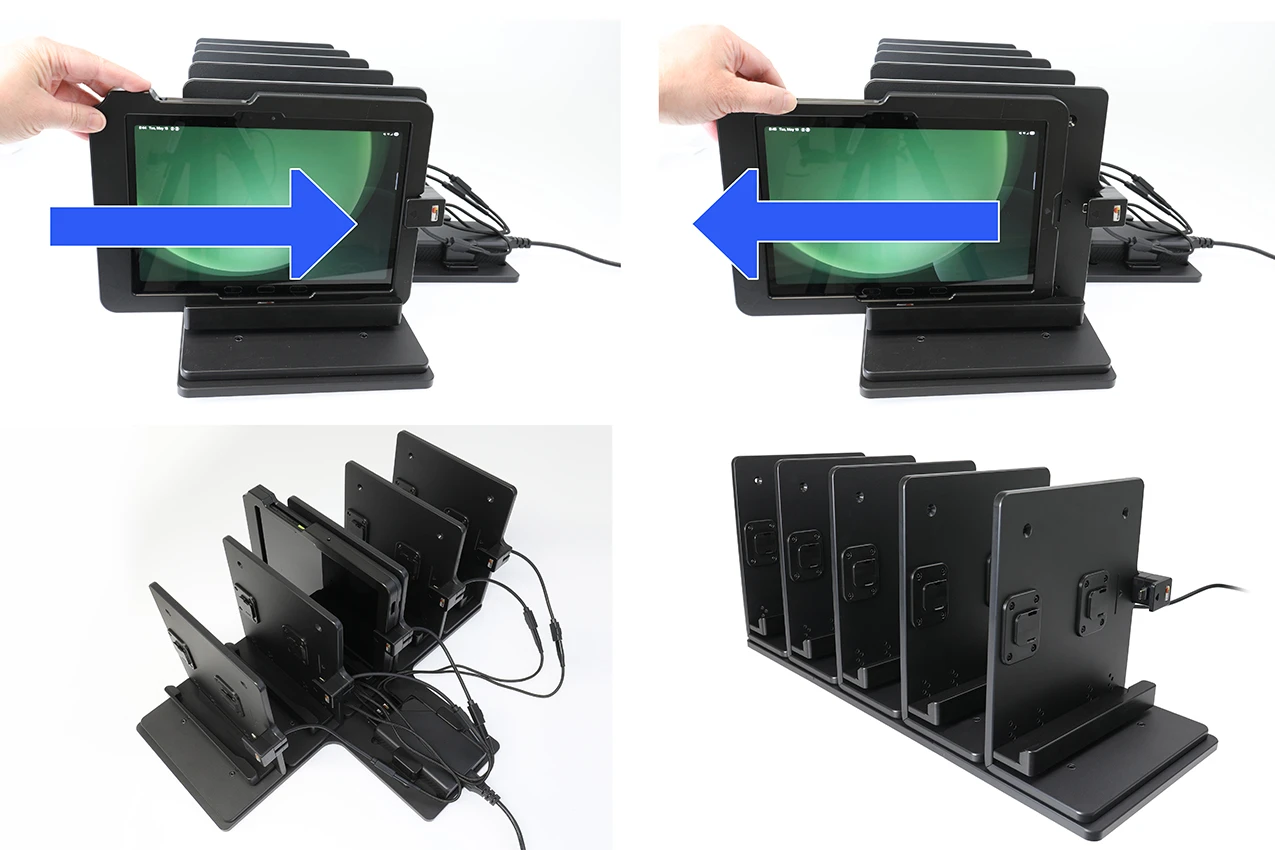

Place/remove device in/from holder: Place the device on the support. Slide the device straight sideways into the holder so the attachments on the backside interlock, and the device connects properly to the charging connector. Slide the device straight sideways out from the charging connector and lift the device up from the holder.
رقم الخطوة 4

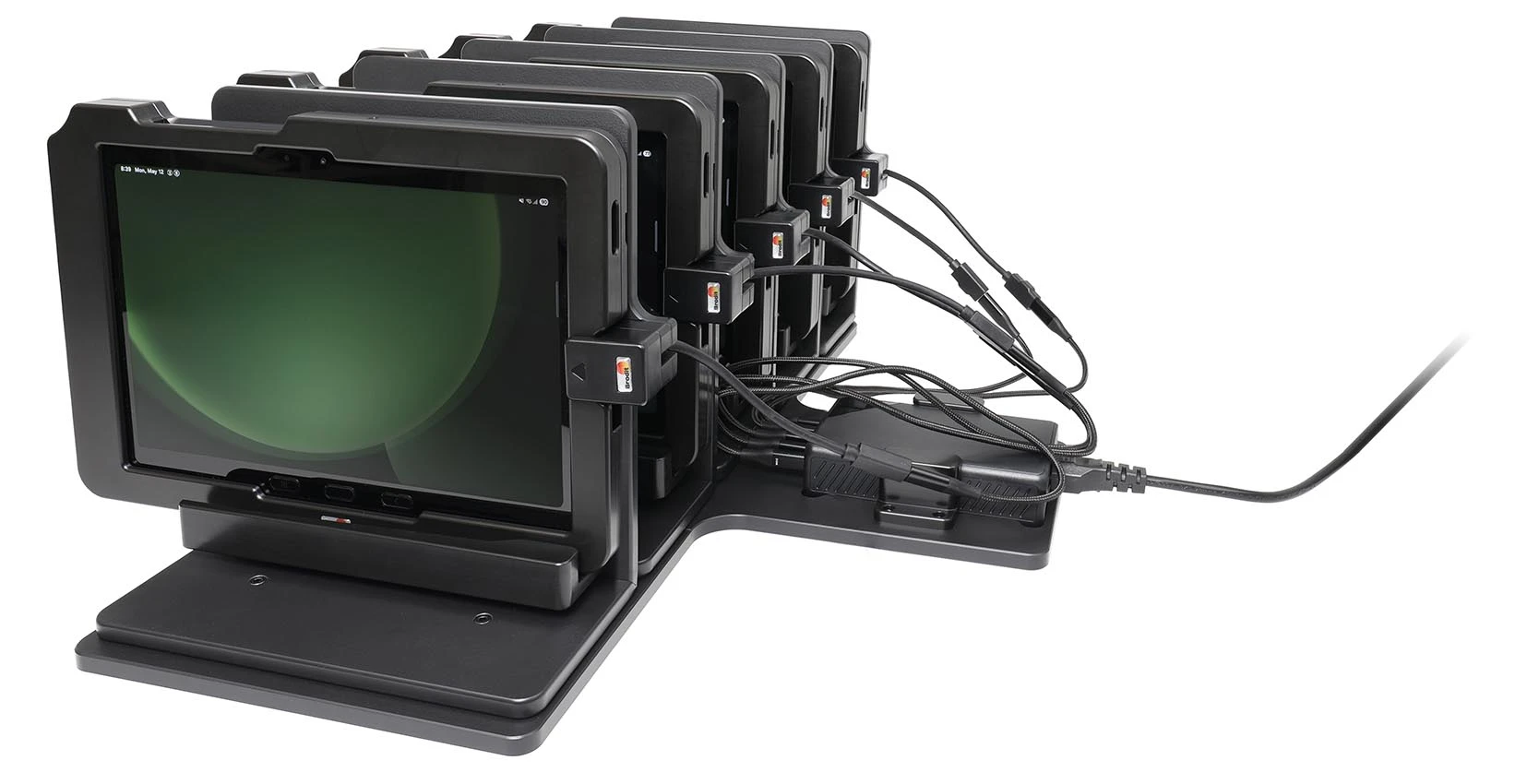

Charging dock with devices in place.
