الوصف

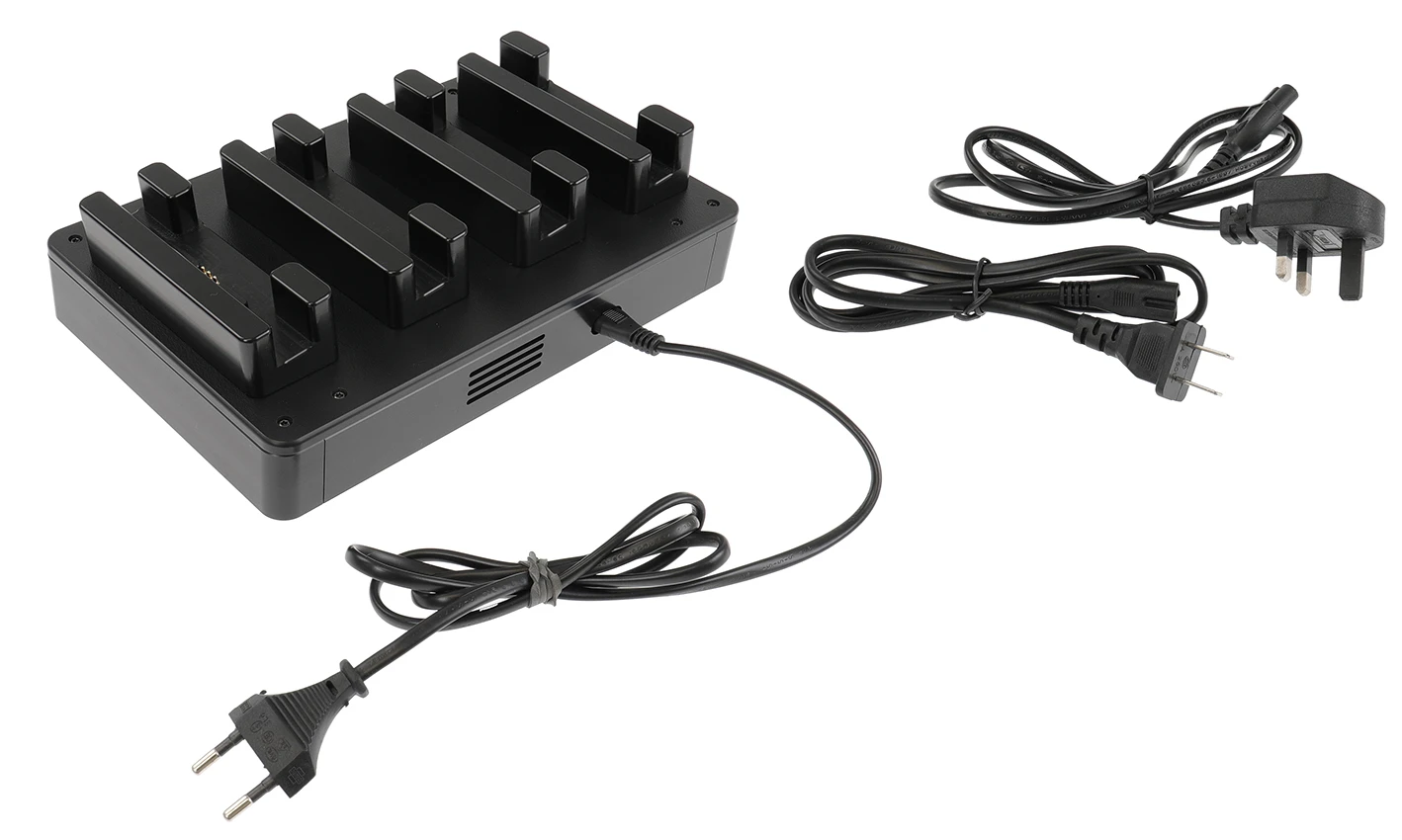

4-way desktop charging dock. With power cable, worldwide adapters included. Fits for devices with original skin.

معلومات فنية

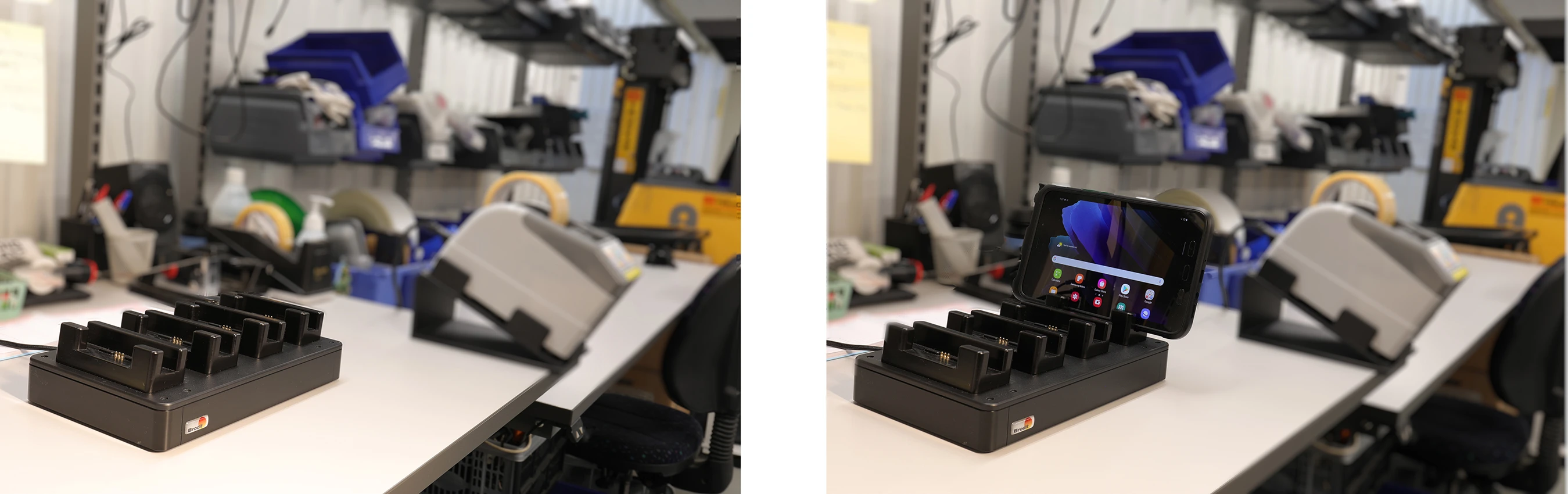

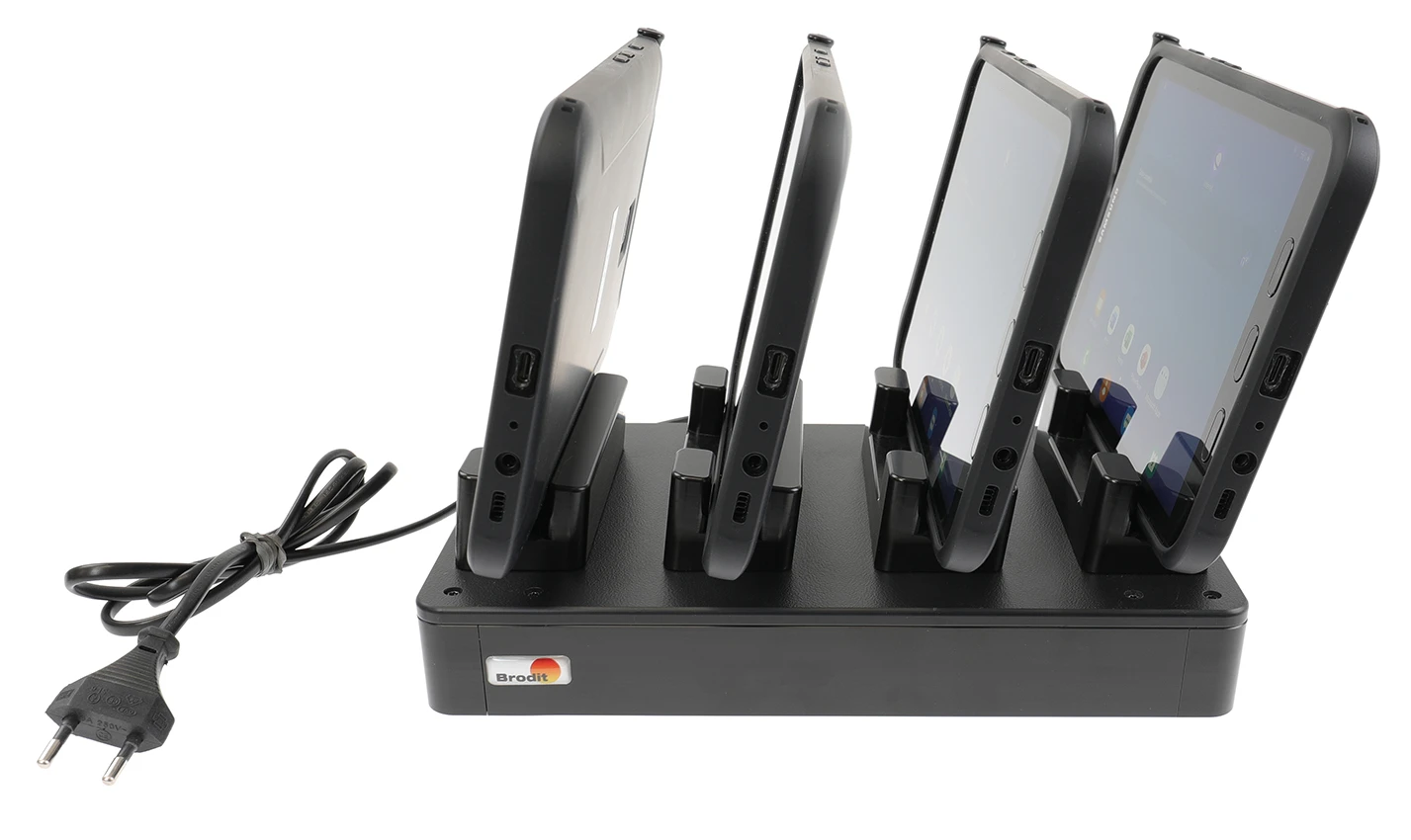

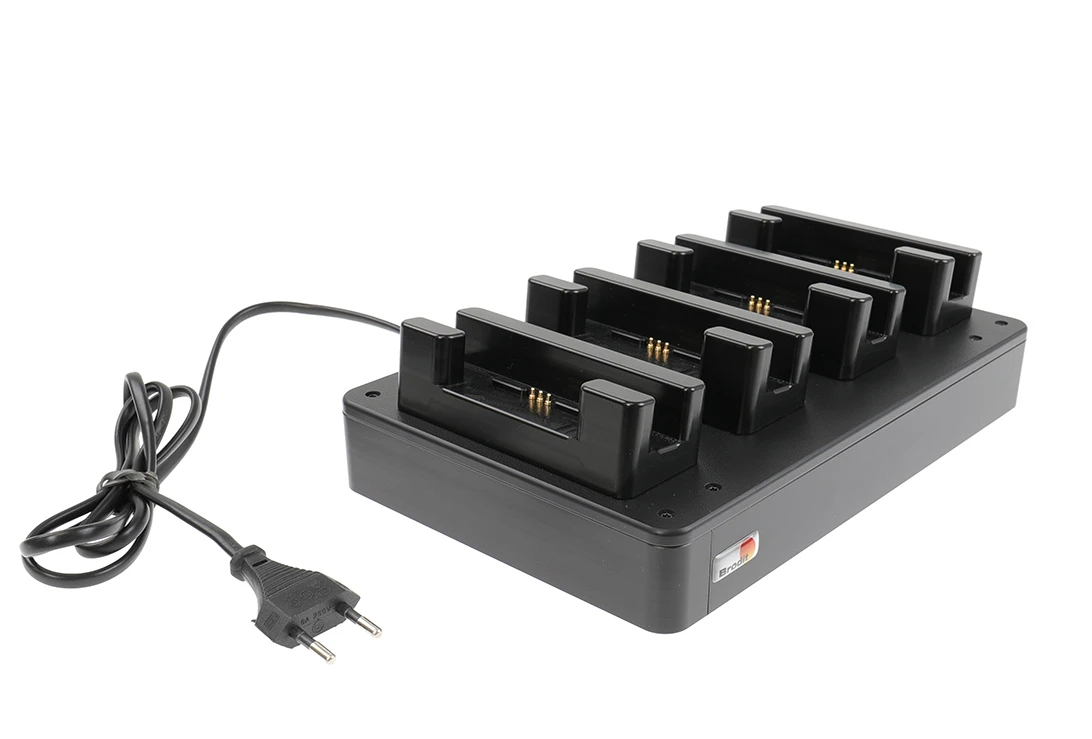

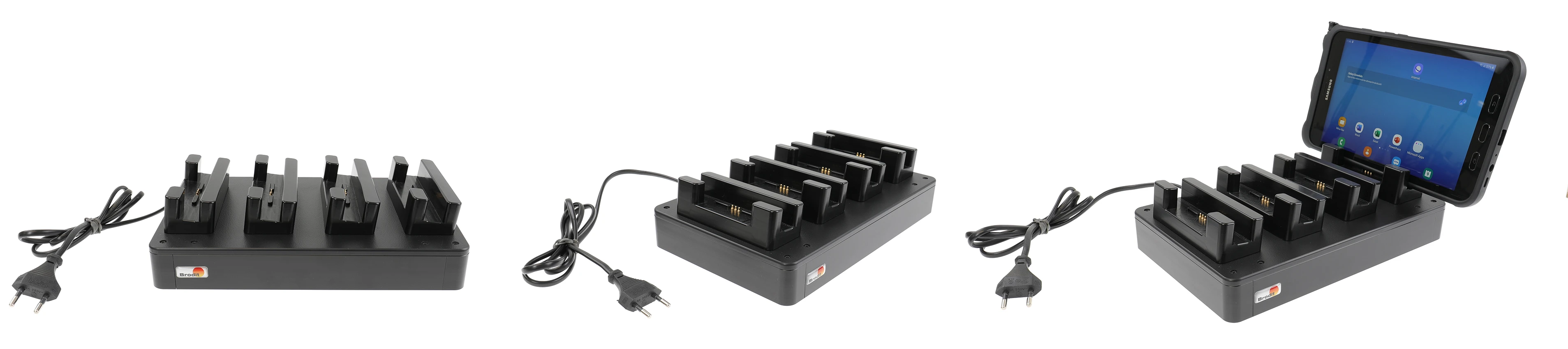

Brodit has developed a desktop charging dock for simultanious charging of four tablets. The charging dock is used by haulage contractors, warehouses, schools and offices, as well as within health care, police and civil protection; everywhere where tablets are used in daily operation. The desktop charging dock can handle up to fore devices simultaneously, it takes up minimum space and if using many tablets, several charging docks can be neatly placed next to each other.

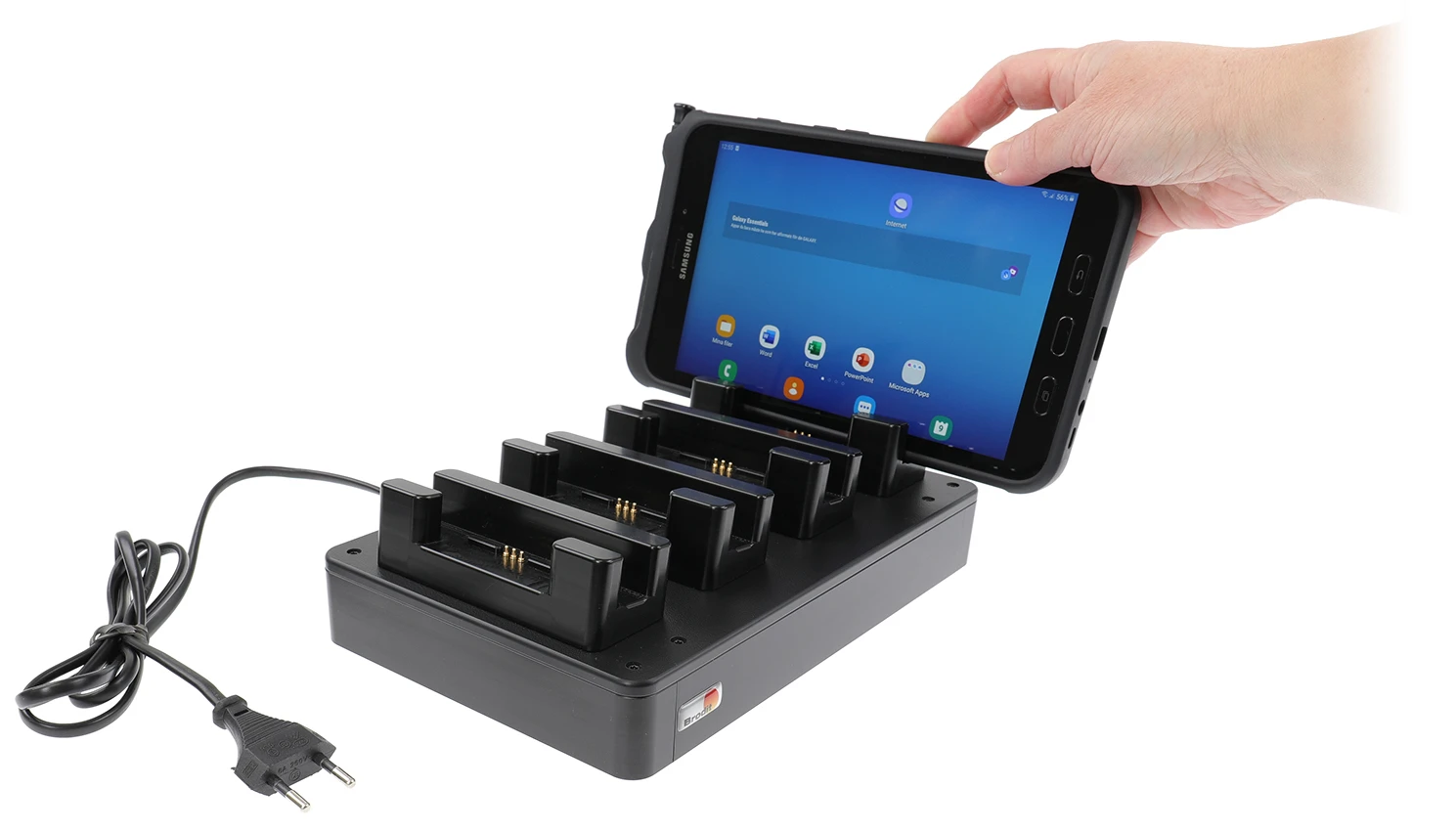

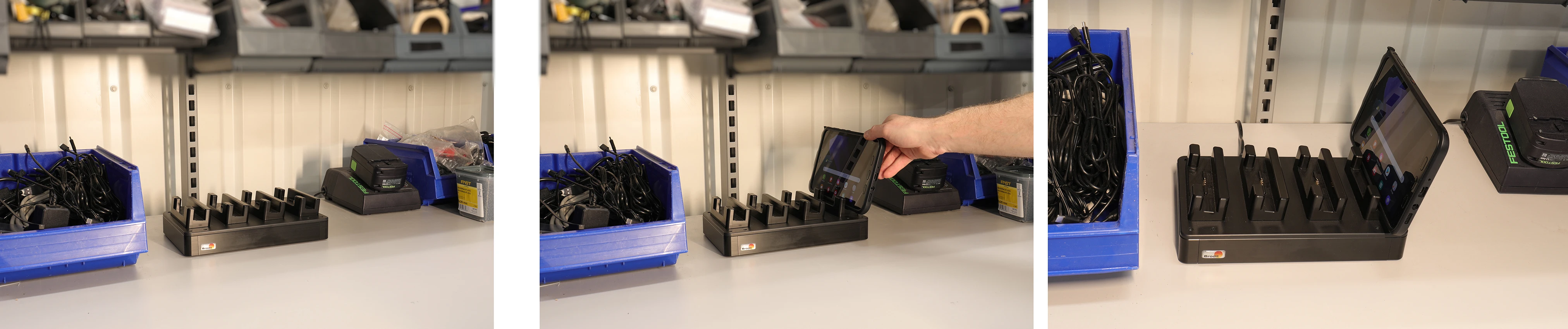

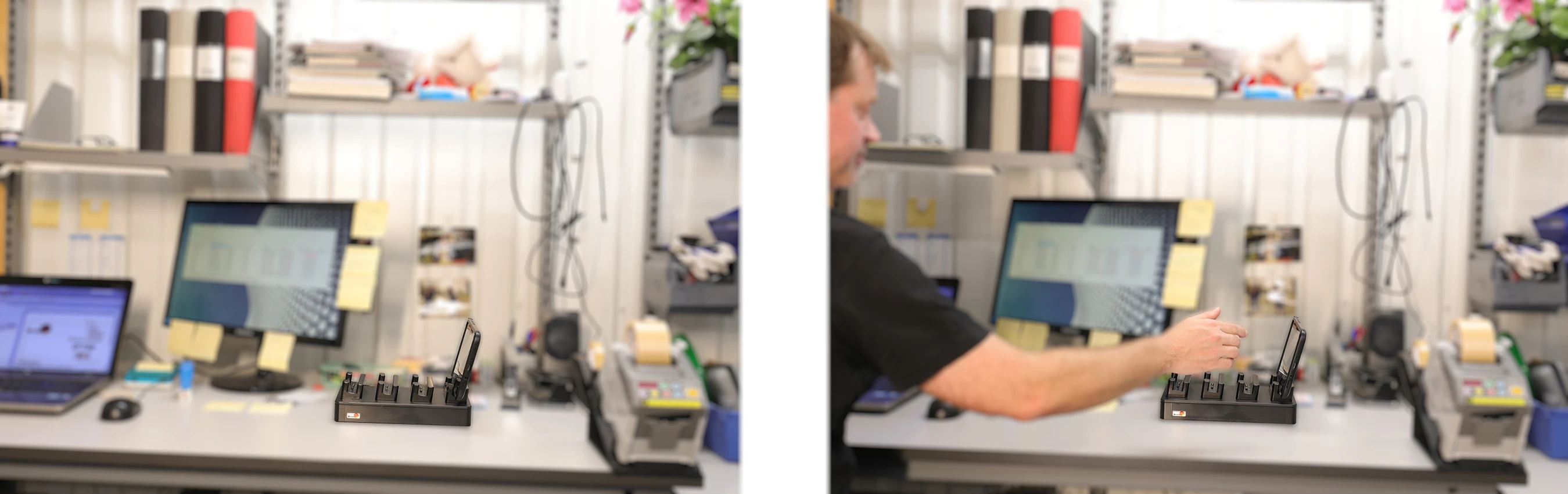

’Grab-and-go’: You can easily grab your tablet on the go. The dock charges the device via the connector on the long side. Just place the device in the charging dock and the charging starts instantly. The desktop charging dock is provided with cellular rubber feet

so it will not slide on the table surface. Length of cable: 112 cm.

Charging is indicated by a red light in front of each charging slot, when the tablet is fully charged the diode switches to green. Charging performance is unaffected by the number of devices. An empty battery takes about 8 hours until fully charged.

Charging specification:

- Output Connector Type: USB, 5 ports

- Output Voltage: 5V

- Output Current: USB 5V 2.4A (Total output current 8A single port maximum output 2.4A)

- Output Voltage Ripple: 200mV pk-pk at Max Load

- Input Voltage Range: AC 110V~240V 50/60HZ

- Input Current: 0.8A (30A at peak)

- Input Current with No device attached: 0.005A

- DC-DC Conversion Efficiency: Over 85% Typical

- Rated Power: 40W

- Dimensions: 89x64x30 mm (WxLxH).

- Weight: 129g.

- Made of black Acetal plastic.

التوافق

• Samsung : Galaxy Tab Active Pro T540/T545/T547/T547U
• Samsung : Galaxy Tab Active 5 SM-X300/SM-X306B
• Samsung : Galaxy Tab Active 5 Pro SM-X356B
• Samsung : Galaxy Tab Active 4 Pro SM-T630/SM-T636
• Samsung : Galaxy Tab Active 3 SM-T570/SM-T575
• Samsung : Galaxy Tab Active 2 SM-T390/SM-T395
