Spacer Plates for Label Rolls – 1.5”
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

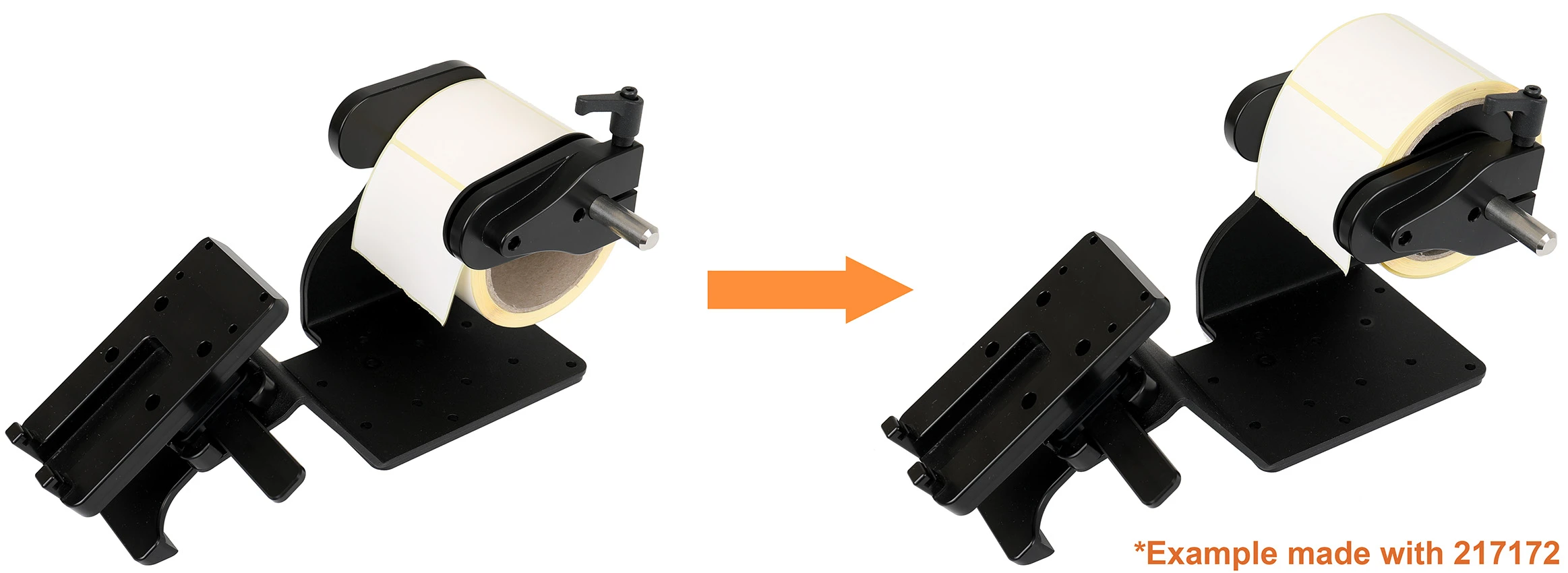

Spacer plates for label and media rolls designed for use with Brodit printer mounts with paper roll function. The plates raise the roll’s center position, allowing larger rolls to be used and ensuring a smoother feed from the roll to the printer.

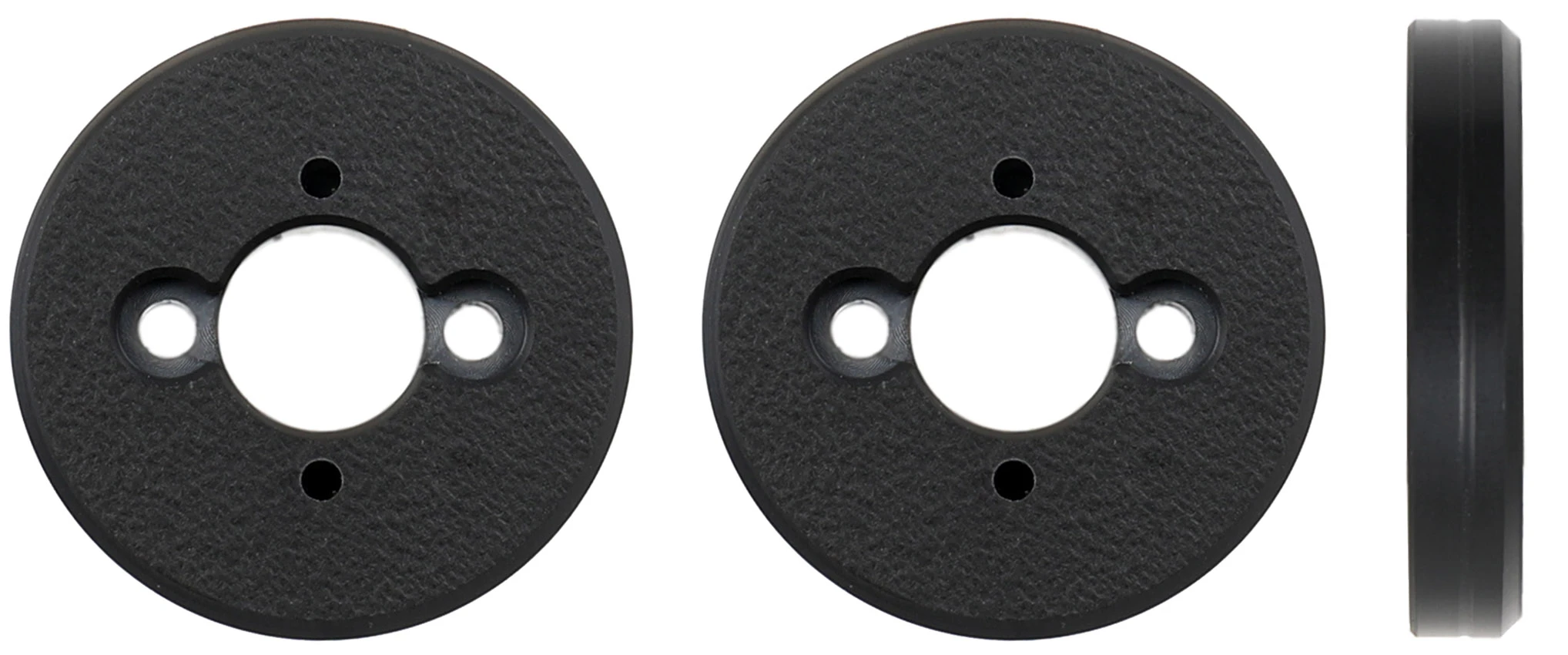

Outer dimensions: diameter 37 mm, thickness 7 mm.
Fits rolls with a minimum inner dimension of 38 mm.

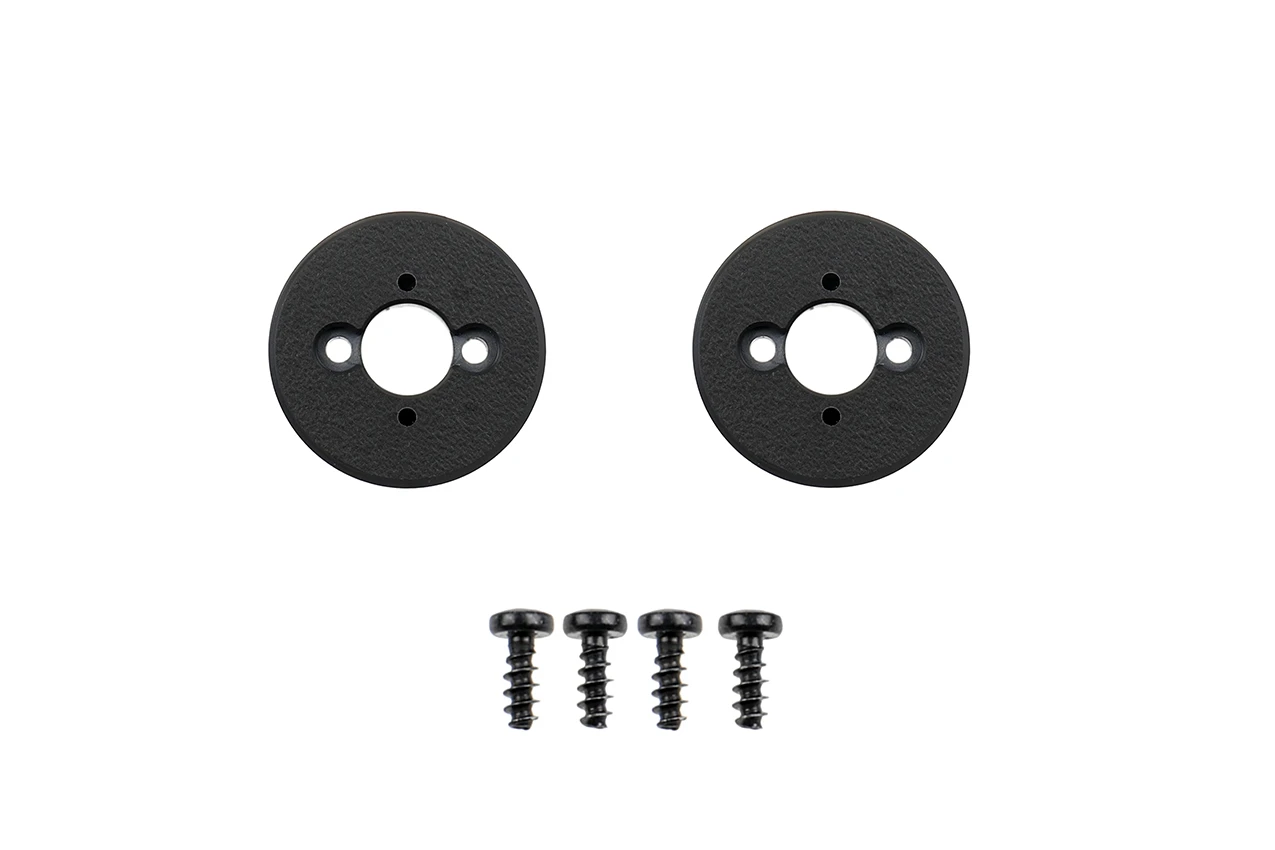

Four screws for installation are included. Made of high-quality ABS plastic. Color: black. Made in Sweden.
دليل تركيب المنتج
رقم الخطوة 1
Note! Some older printer mounts may lack pre-drilled holes. If your mount does not have them, download the drilling instruction (PDF) at www.brodit.com/en/product/217170 Once you have verified that the mount has pre-drilled holes, or drilled them according to the instruction, take out the spacer plates and the supplied screws.
رقم الخطوة 2

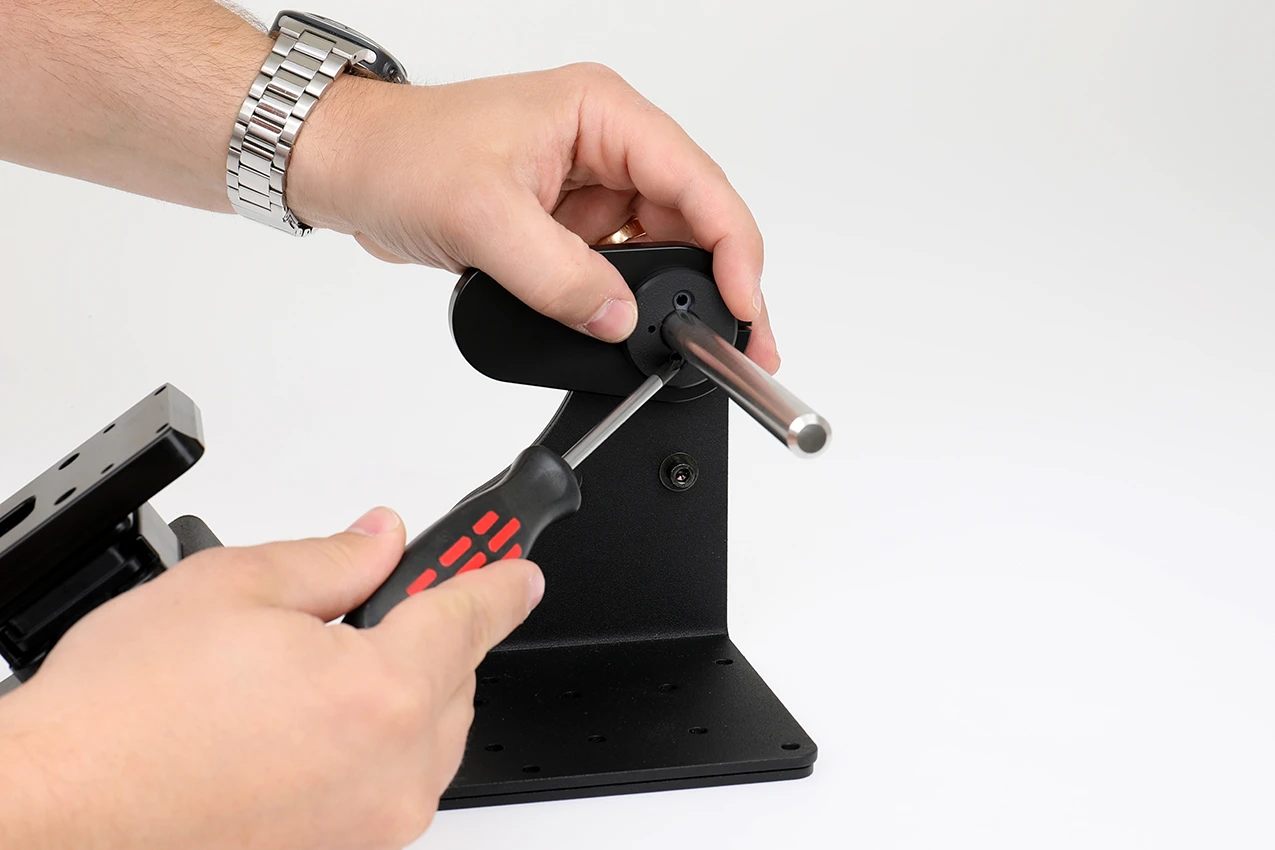

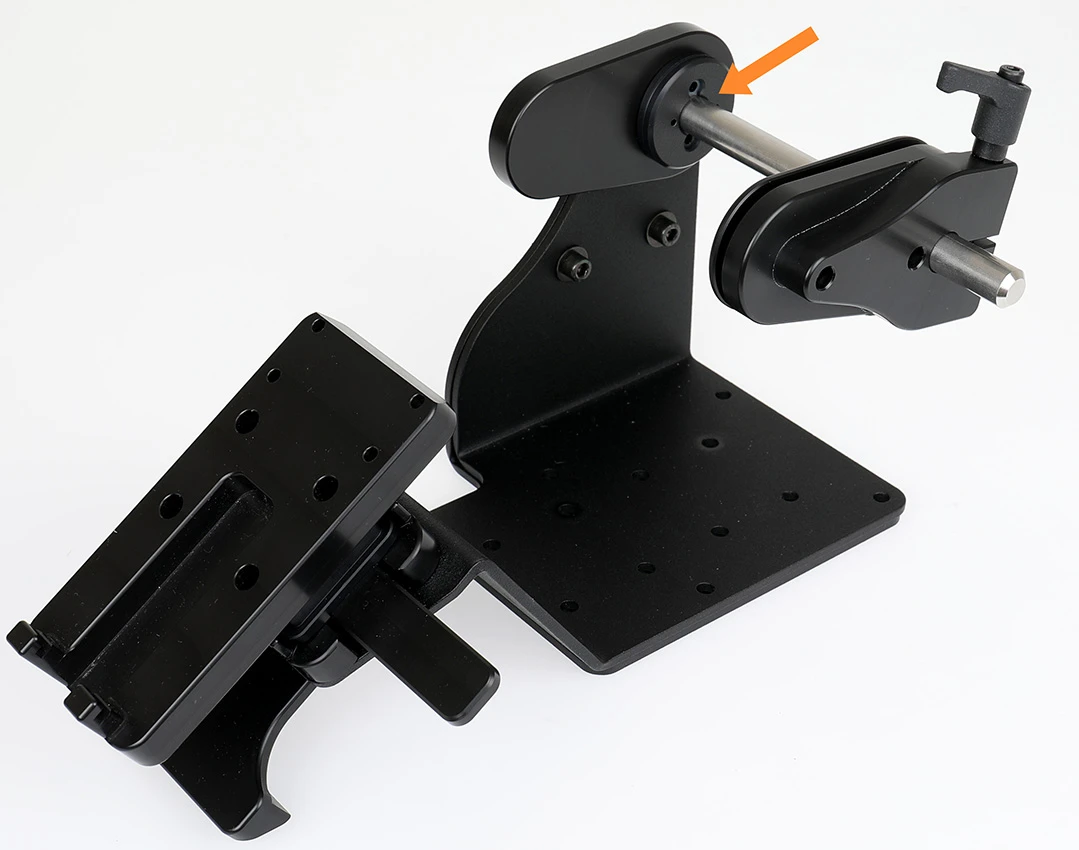

Place one of the spacer plates onto the paper roll side support as shown in the picture. Attach the plate using the supplied screws.
رقم الخطوة 3

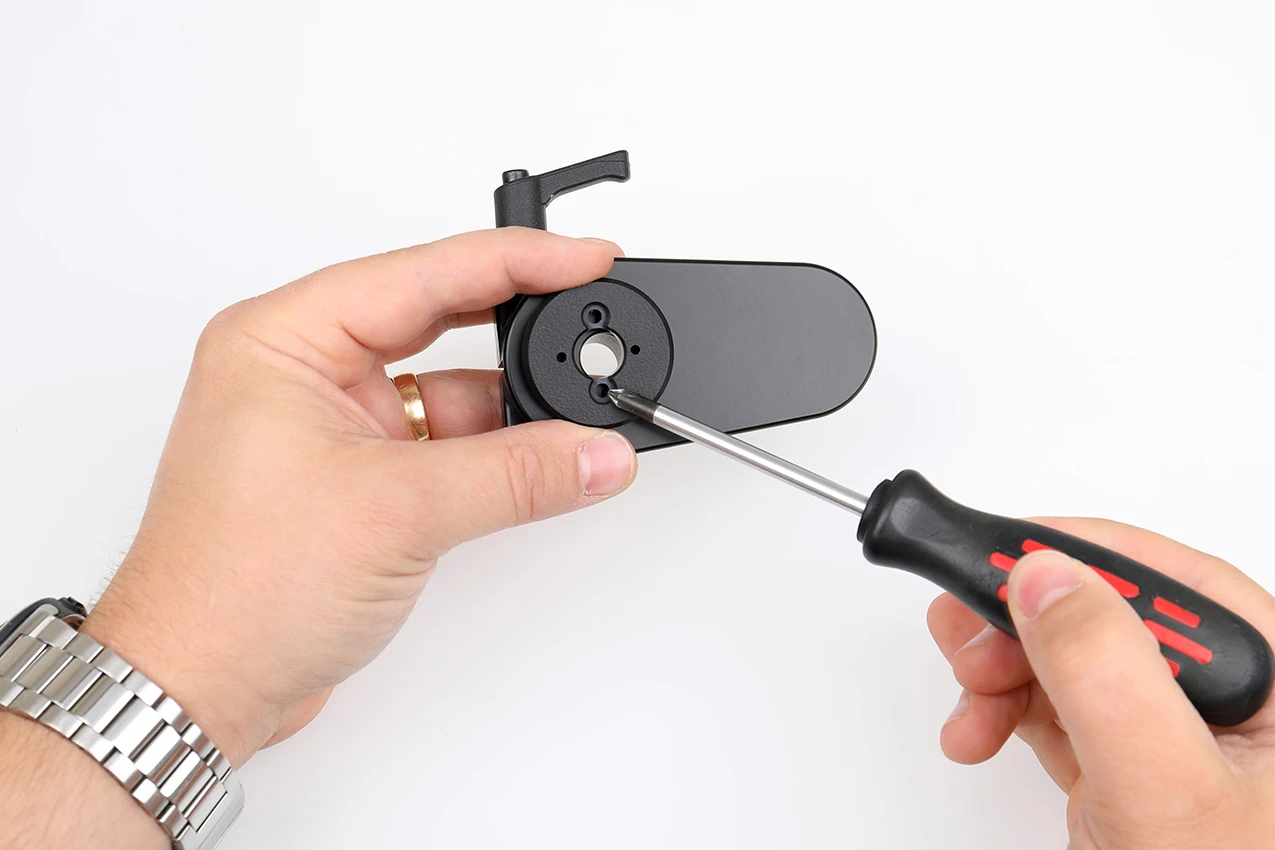

Place the other spacer plate onto the opposite side support as shown in the picture. Attach the plate using the supplied screws.
رقم الخطوة 4

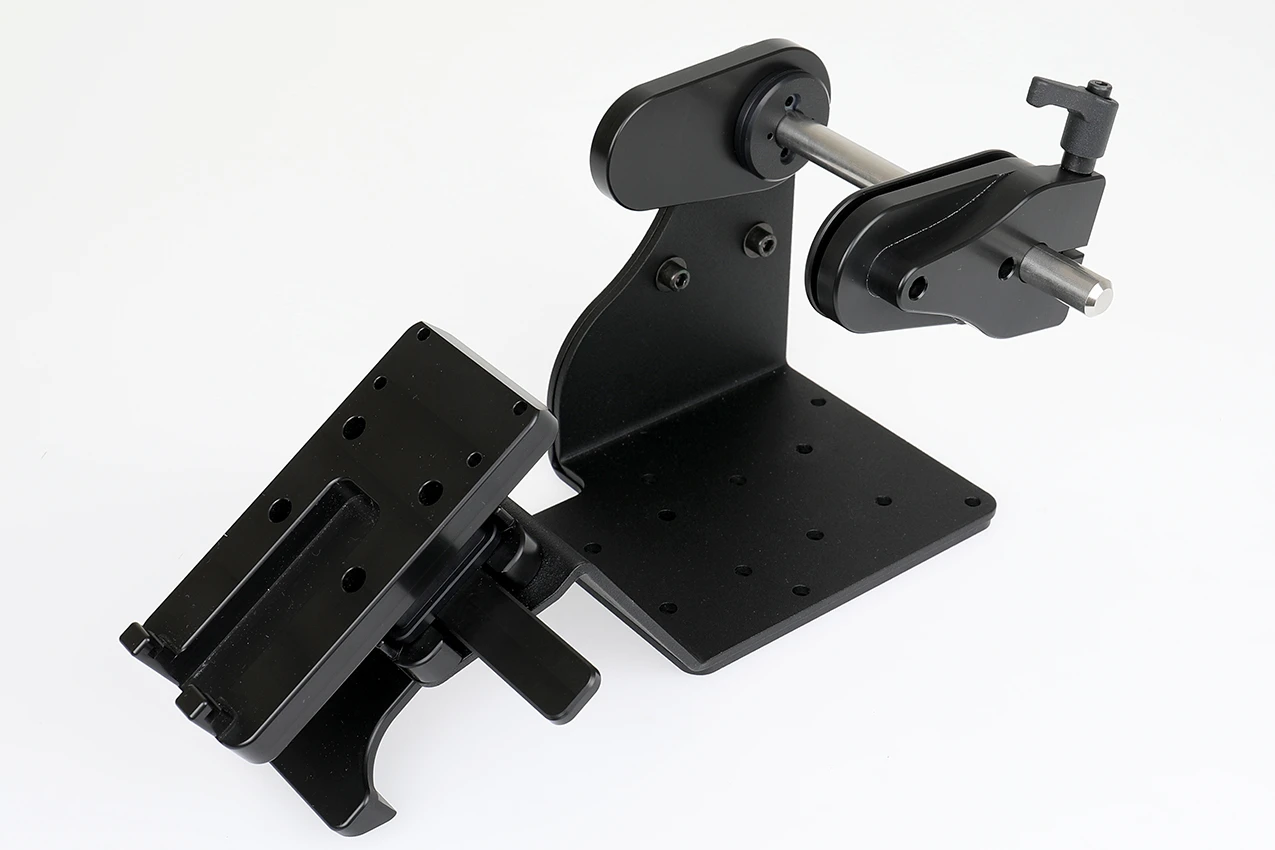

The installation is complete.
