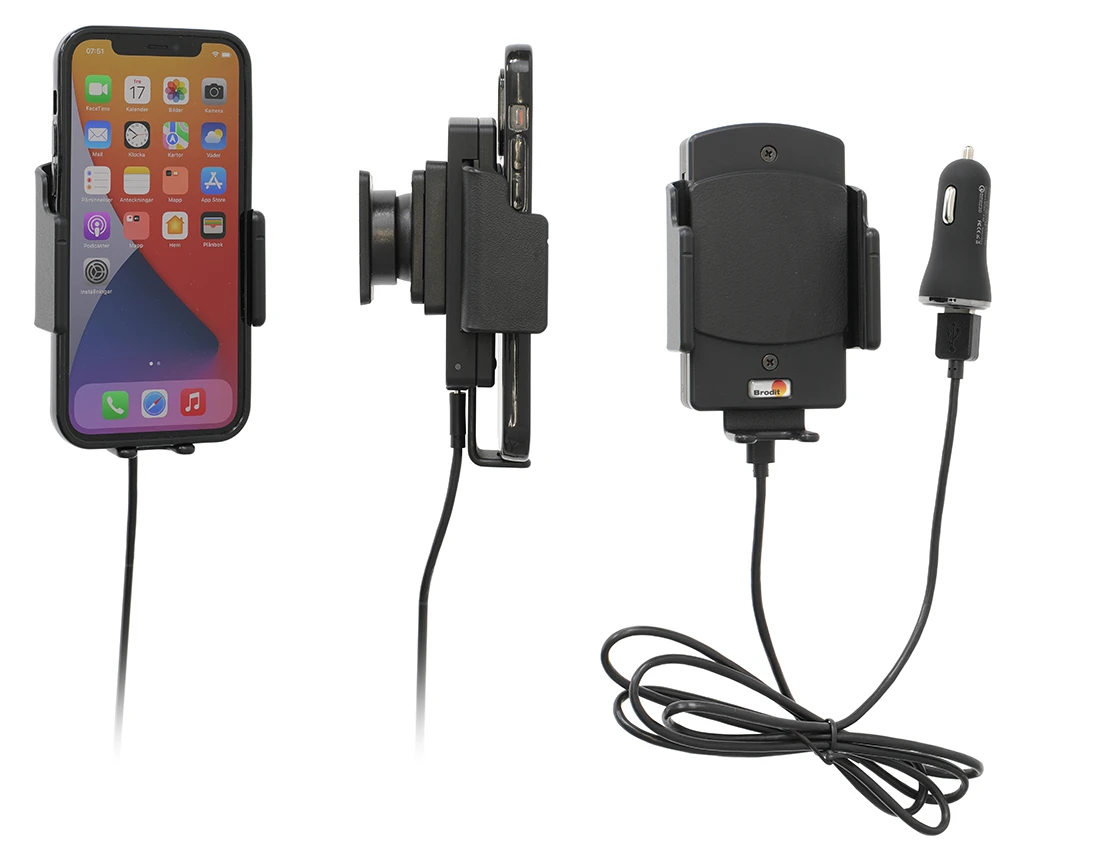

Qi Wireless Charging Phone Holder with car charger
16 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
Active holder that charges your device via wireless Qi technology. Keep your phone's battery fully charged, always within easy sight and reach! Neat, discreet and convenient. Adjustable holder. Fits for devices with and without skin with the following dimensions: Width: 61-83 mm, Thickness: 6-11 mm. Qi certified. 5 / 7.5 / 10 / 15W wireless charging. LED charge status.
With USB-A-cable with car charger for connecting to the vehicle's 12/24V socket. The car charger has two USB-A ports: QC 3.0A + 2.4A. To ensure your holder works in fast charging modes the cable that connects the holder to the power supply should always be connected to the Green USB-A port on the power supply unit (Output: 1). The White USB-A charging port (Output: 2) is spare and can be used to charge secondary devices such as mobile phones / navigation units. This is a 15W fast charging holder. Fast charging is device dependent.
You have full access to the camera and all buttons when the device is in the holder. It is easy to slide the device into place in the holder so it connects to the charging, and to take it out of the holder when leaving the car with a one-hand grip.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. 12/24 Volt. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Manufactured in Sweden. Attach onto a ProClip mounting platform.
دليل تركيب المنتج
رقم الخطوة 1

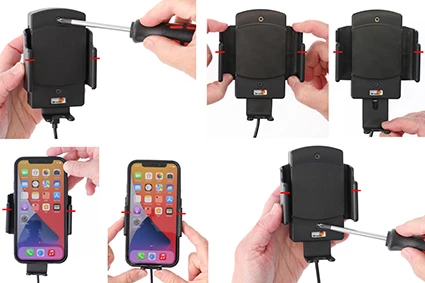

To adjust the holder for your device: Loosen the screws on the front side of the holder, so the sides of the holders can be adjusted. Place the device in the holder and press the sides together so the device is firmly in place. Adjust the height so that the mark showing the center of the charging coil is centered over the unit's charging coil. Tighten the screws on the front side of the holder.
رقم الخطوة 2
Loosen the screw in the center of the mount so you can remove the tilt swivel attaching plate on the back. Place the attaching plate on desired position. Screw the attaching plate into place with the enclosed screws. Place the mount over the attaching plate wo the tilt swivel fits. Screw the mount onto the attaching plate.
رقم الخطوة 3

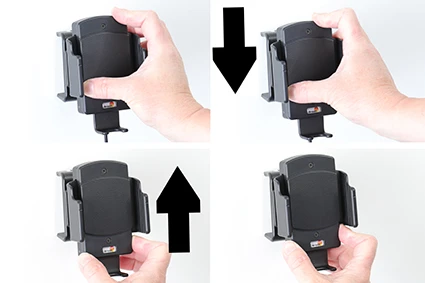

Place the device over the adapter mount and press it straight downward so it slides into place. In order to remove it, press it straight upward and slide it out from the adapter mount.
رقم الخطوة 4

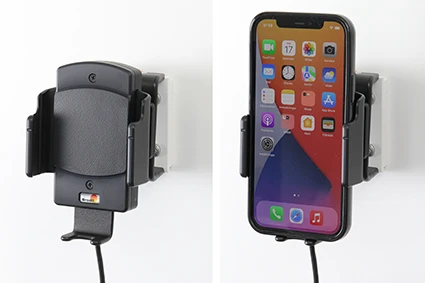

The holder is in place.
