Thabt

ProClip

رقم الصنف : 855509

Volkswagen T-cross 2019-2023

الكمية

إنتهى من المخزن

طلب مسبق

معلومات فنية

The ProClip is a mounting bracket that you attach onto the vehicle’s dashboard. It provides a mounting platform for mobile phones and other devices that you want to have within easy sight and reach in the car. Safe, neat and convenient! The ProClip has a perfect fit, it is custom made for each vehicle to ensure a secure base for installations.

The ProClip is easy to install. The bracket simply snaps into place in gaps in the dashboard, you do not need to drill holes, not use special tools or not dismantle the dashboard. Made in black ABS plastic. Comes with detailed installation instructions. The mounting plate is equipped with predrilled holes which make the installation of equipment on the ProClip easier. The holes suit all Brodit holders and other products with standard holes, the hole pattern constists of one set of AMPS-holes as well as two sets of double-holes placed in different height.

View demo video

التعليمات

Please read all of the instructions and look at the pictures before installing the ProClip.

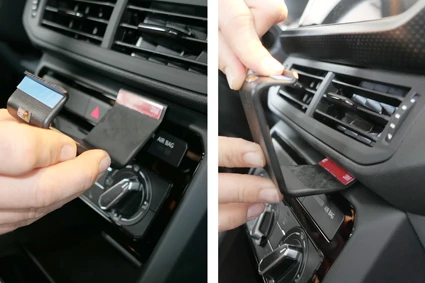

1. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Remove the adhesive tape cover on the ProClip. Press the angled edge on the lower part of the ProClip into the gap between frame surrounding the control panel and the dashboard. Press/Flip the upper part of the ProClip upward/forward so the angled lower edge hooks behind the frame surrounding the control panel.

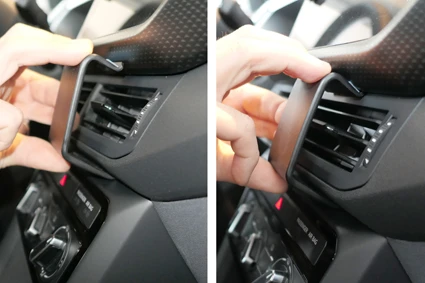

2. Press the upper part of the ProClip downward/forward and hook the angled upper edge into the gap between the frame surrounding the air vent and the dashboard.

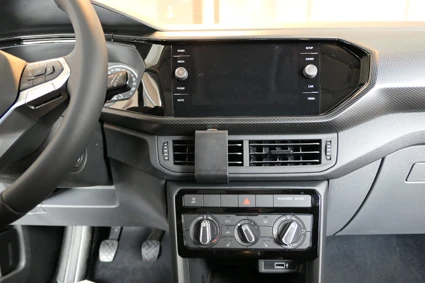

3. This ProClip can also be placed onto the left air vent. A device installed in this position may block the display.

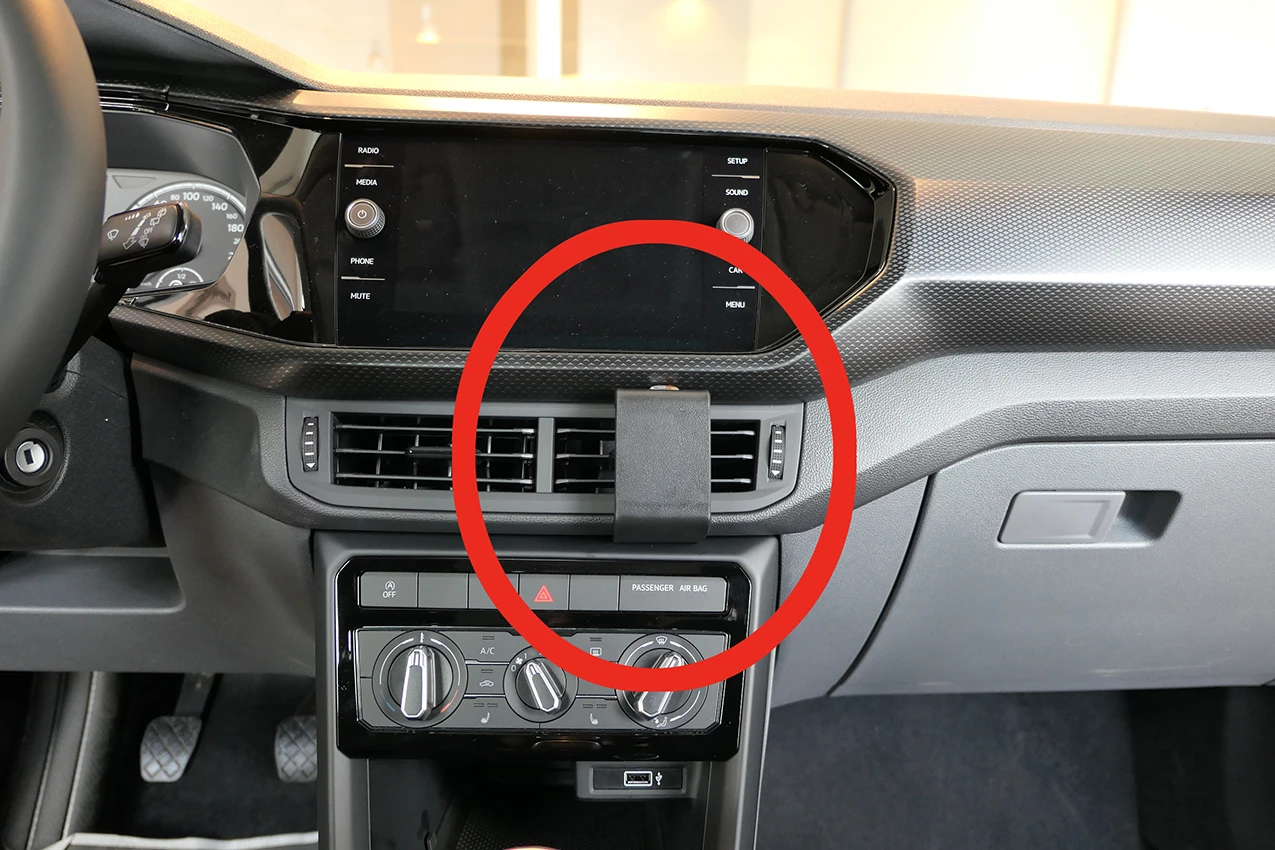

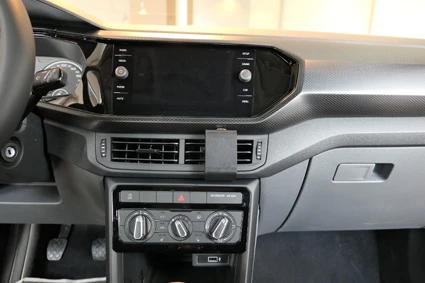

4. The ProClip is in place.

التوافق

Volkswagen : T-cross
