ProClip

رقم الصنف : 855279

Mercedes Benz V-Class 2016-2023

الكمية

إنتهى من المخزن

طلب مسبق

معلومات فنية

The ProClip is a mounting bracket that you attach onto the vehicle’s dashboard. It provides a perfect mounting platform for mobile phones, or other devices that you want to have within easy reach in the car. Safe, neat and convenient!

The ProClip has a perfect fit, it is custom made for each vehicle to ensure a secure base for installations. And the ProClip is easy to install. The bracket simply snaps into place in gaps in the dashboard, you do not need to drill holes, not use special tools or not dismantle the dashboard. With predrilled holes for easy attachment of a holder. Made in black ABS plastic. Comes with detailed instructions. Made in Sweden.

View demo video

التعليمات

Please read all of the instructions and look at the pictures before attaching the ProClip.

This ProClip consists or two parts:

Part 1. Attaching plate.

Part 2. Attaching part (the smallest part)

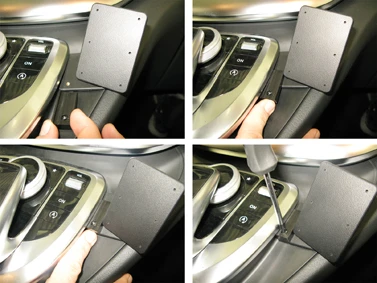

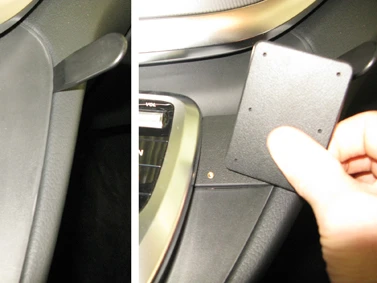

1. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Press the thin end of the enclosed gap opener into the gap between the panel and the center console side wall, just below the upper right corner of the gap. Peel off the adhesive tape covers on Part 1. Press the angled right edge on Part 1 into the gap below the gap opener.

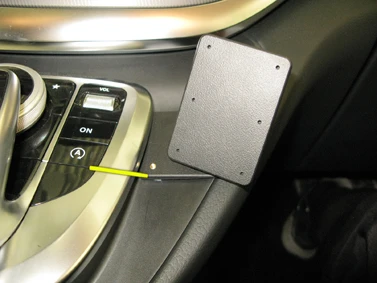

2. Adjust the position so the lower edge of Part 1 is aligned with the seam between the buttons, same position as shown in the picture. Pull out the gap opener.

3. Place the front corner of the angled edge on Part 2 into the gap between the frame surrounding the control panel and the surrounding panel. Press Part 2 forward in the gap so the angled edge goes all the way into the gap and the hole is placed over the hole in Part 1. Attach Part 2 onto Part 1 with the enclosed screw.

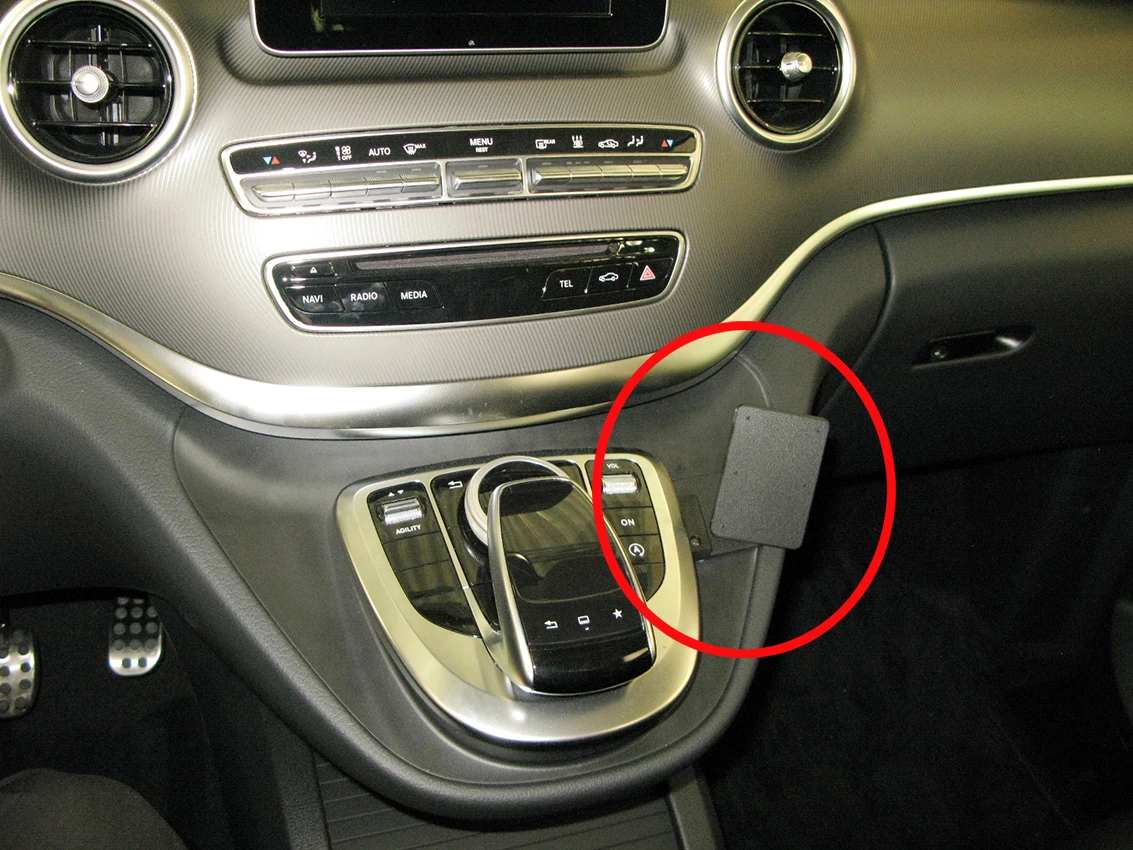

4. The ProClip is in place.

التوافق

Mercedes Benz : V-Class
