ProClip
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

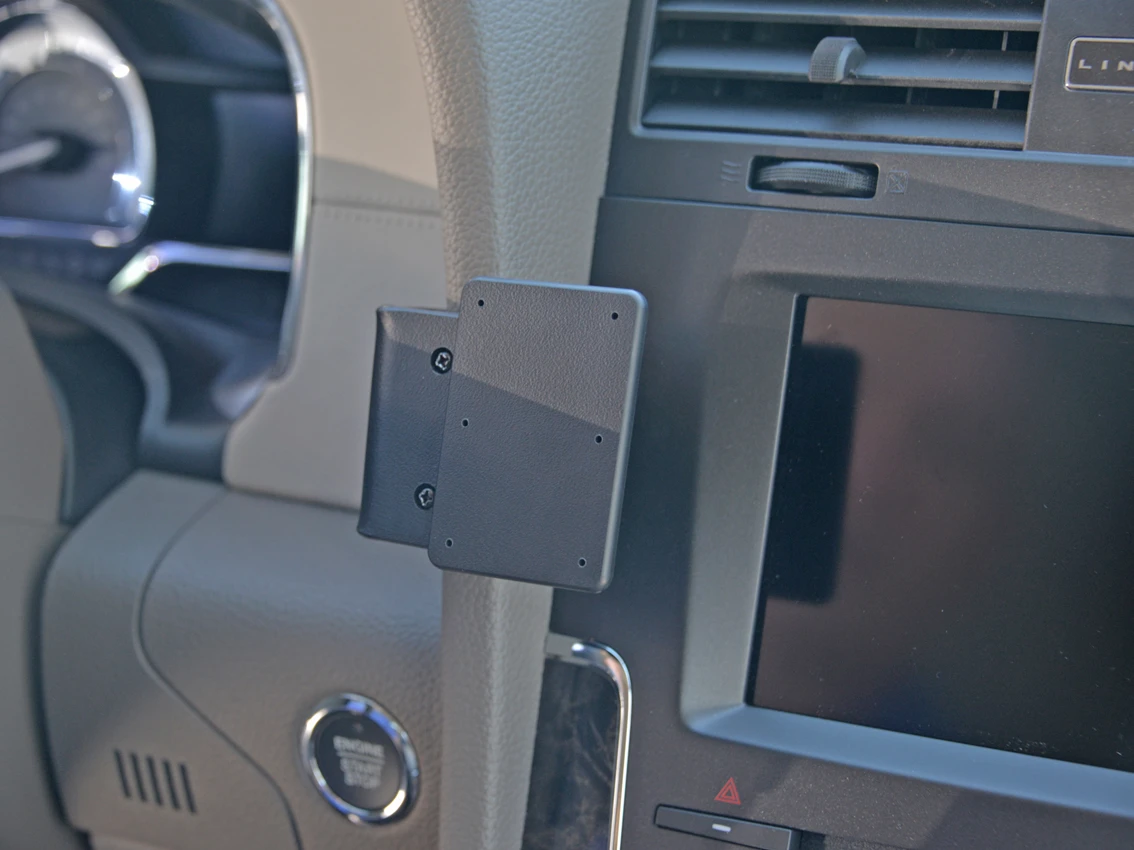

The ProClip is a mounting bracket that you attach onto the vehicle’s dashboard. It provides a mounting platform for mobile phones and other devices that you want to have within easy sight and reach in the car. Safe, neat and convenient! The ProClip has a perfect fit, it is custom made for each vehicle to ensure a secure base for installations.
The ProClip is easy to install. The bracket simply snaps into place in gaps in the dashboard, you do not need to drill holes, not use special tools or not dismantle the dashboard. Made in black ABS plastic. Comes with detailed installation instructions. The mounting plate is equipped with predrilled holes which make the installation of equipment on the ProClip easier. The holes suit all Brodit holders and other products with standard holes, the hole pattern constists of one set of AMPS-holes as well as two sets of double-holes placed in different height.
دليل تركيب المنتج
رقم الخطوة 1

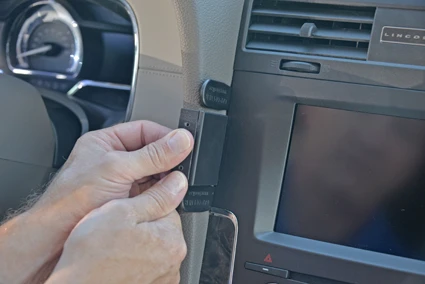

Press the thin ends of the enclosed gap openers into the gap between padded part of the dash and the center console frame, to widen the gap. Make sure the lower gap opener is inserted just above the silver/chrome strip (see photo). Insert the thin end of Part 1 into the gap between the gap openers. When Part 1 is all the way into the gap, remove the gap openers.
رقم الخطوة 2

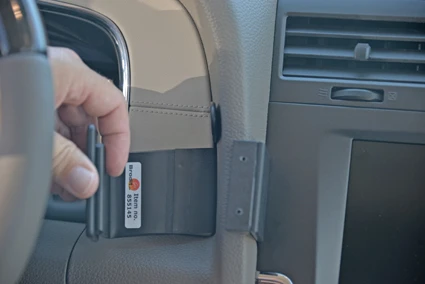

Press the thin end of one of the enclosed gap openers into the gap between the padded part of the dash and the leather paneling surrounding the speedometer, to widen the gap. Insert the L-shaped angled edge of Part 2 into the gap below the gap opener. While making sure the L-shaped edge goes all the way into the gap and hooks behind the panel, rotate the whole Part 2 rightward.
رقم الخطوة 3

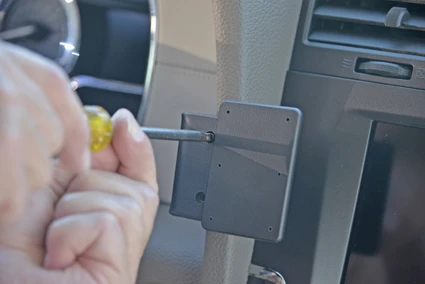

Align the holes in Part 2 with the pre-drilled holes in Part 1. Fasten the two parts together using the enclosed screws. Remove the gap opener.
رقم الخطوة 4

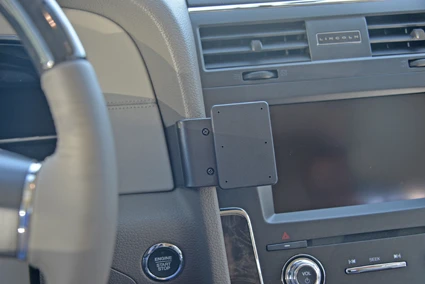

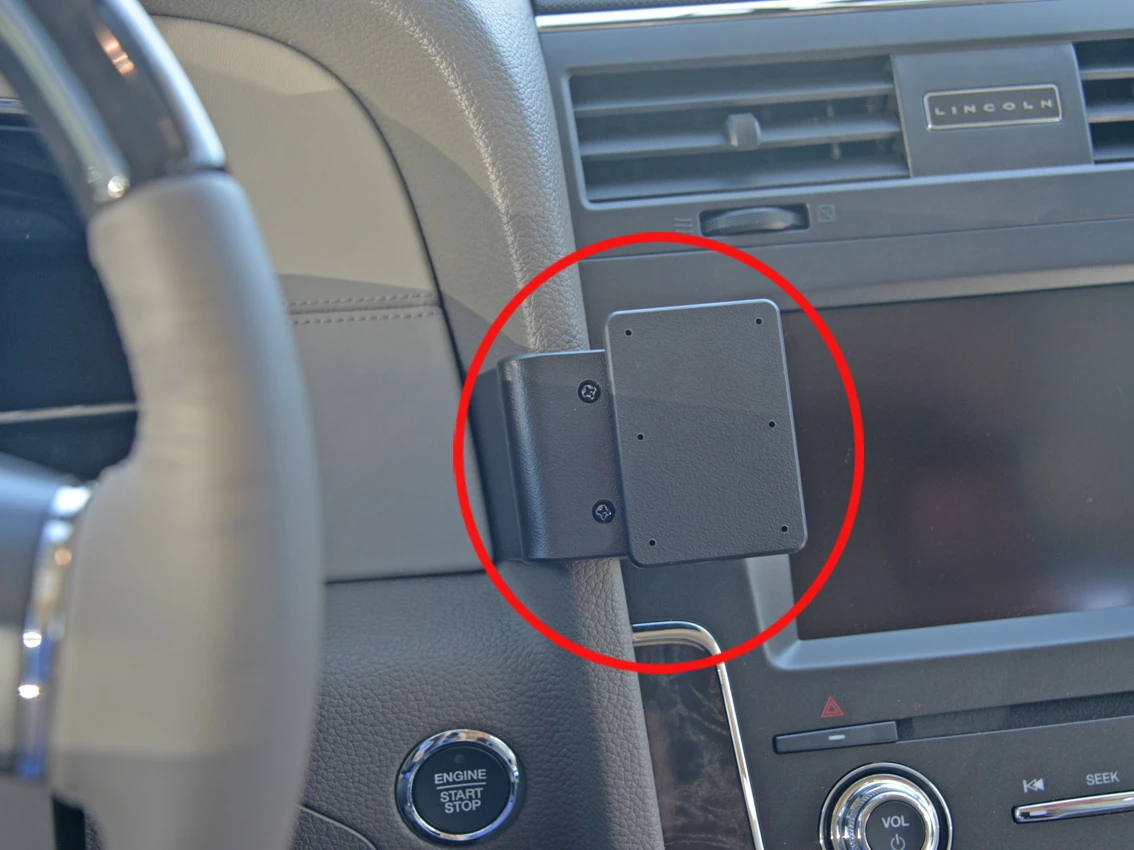

The ProClip is in place.
