ProClip
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The ProClip is a mounting bracket that you attach onto the vehicle’s dashboard. It provides a mounting platform for mobile phones and other devices that you want to have within easy sight and reach in the car. Safe, neat and convenient! The ProClip has a perfect fit, it is custom made for each vehicle to ensure a secure base for installations.
The ProClip is easy to install. The bracket simply snaps into place in gaps in the dashboard, you do not need to drill holes, not use special tools or not dismantle the dashboard. Made in black ABS plastic. Comes with detailed installation instructions. The mounting plate is equipped with predrilled holes which make the installation of equipment on the ProClip easier. The holes suit all Brodit holders and other products with standard holes, the hole pattern constists of one set of AMPS-holes as well as two sets of double-holes placed in different height.
دليل تركيب المنتج
رقم الخطوة 1

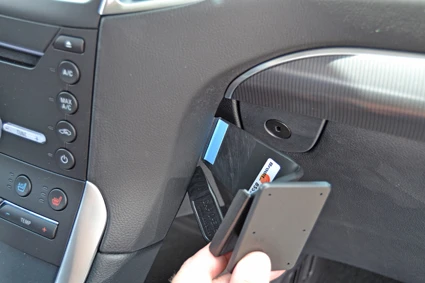

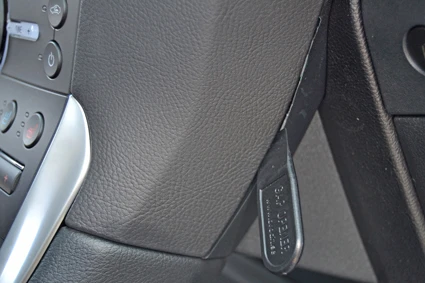

Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Insert the thin end of the enclosed gap opener into the gap between the padded center console side and the plastic trim behind, to widen the gap.
رقم الخطوة 2

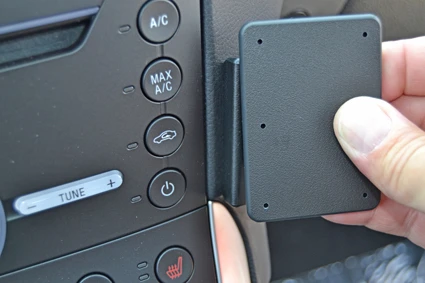

Align the left side of the ProClip so that the bottom of the angled left edge is positioned just above the silver trim on the right side of the center console. Take notice of the alignment of the right edge of the ProClip and adjust the gap opener so it is positioned just below the right edge of the ProClip. Important: do not insert the left edge into the gap yet! Remove the adhesive tape cover on the ProClip.
رقم الخطوة 3

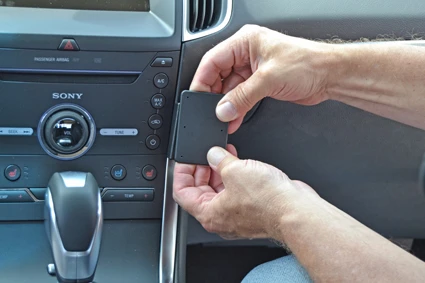

Insert the s-shaped right edge of the ProClip into the gap above the gap opener. Flip the ProClip leftward so the angled edge goes behind the console panel. Remove the gap opener.
رقم الخطوة 4

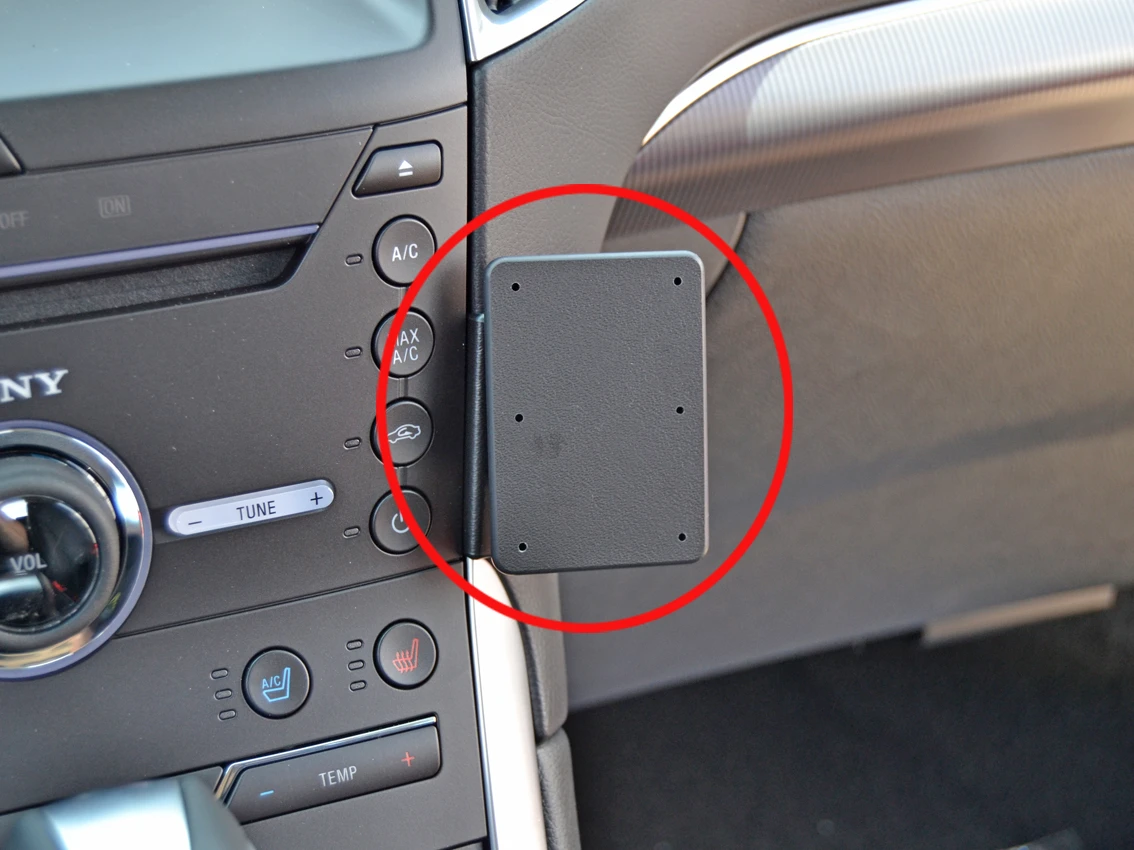

Pull the front part of the ProClip slightly toward you so the angled left edge hooks into the gap between the padded part of the console side wall and the climate control panel. The ProClip is in place.
