ProClip
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

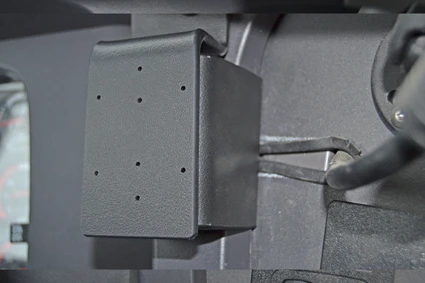

The ProClip is a mounting bracket that you attach onto the vehicle’s dashboard. It provides a mounting platform for mobile phones and other devices that you want to have within easy sight and reach in the car. Safe, neat and convenient! The ProClip has a perfect fit, it is custom made for each vehicle to ensure a secure base for installations.
The ProClip is easy to install. The bracket simply snaps into place in gaps in the dashboard, you do not need to drill holes, not use special tools or not dismantle the dashboard. Made in black ABS plastic. Comes with detailed installation instructions. The mounting plate is equipped with predrilled holes which make the installation of equipment on the ProClip easier. The holes suit all Brodit holders and other products with standard holes, the hole pattern constists of one set of AMPS-holes as well as two sets of double-holes placed in different height.
دليل تركيب المنتج
رقم الخطوة 1

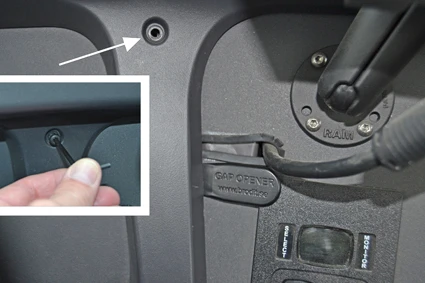

Use the enclosed alcohol pad to clean the area where the ProClip will be installed. Remove the screw in the dashboard as shown in the photo. Press the thin end of the enclosed gap opener into the gap between the center instrument panel and the panel frame, to widen the gap. Peel off the adhesive tape cover on the ProClip.
رقم الخطوة 2

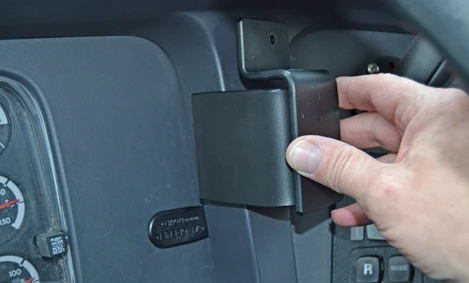

Align the hole in the ProClip with the hole in the dashboard where the screw was removed. Insert the screw into the hole again and tighten it. Press forward on the right side of the ProClip so the angled edge goes into the gap next to the gap opener. Remove the gap opener.
رقم الخطوة 3
Press the thin end of the gap opener into the gap between the gauge panel and the surrounding frame, to widen the gap. Push forward on the left side of the ProClip so the angled edge goes into the gap next to the gap opener. Remove the gap opener.
رقم الخطوة 4

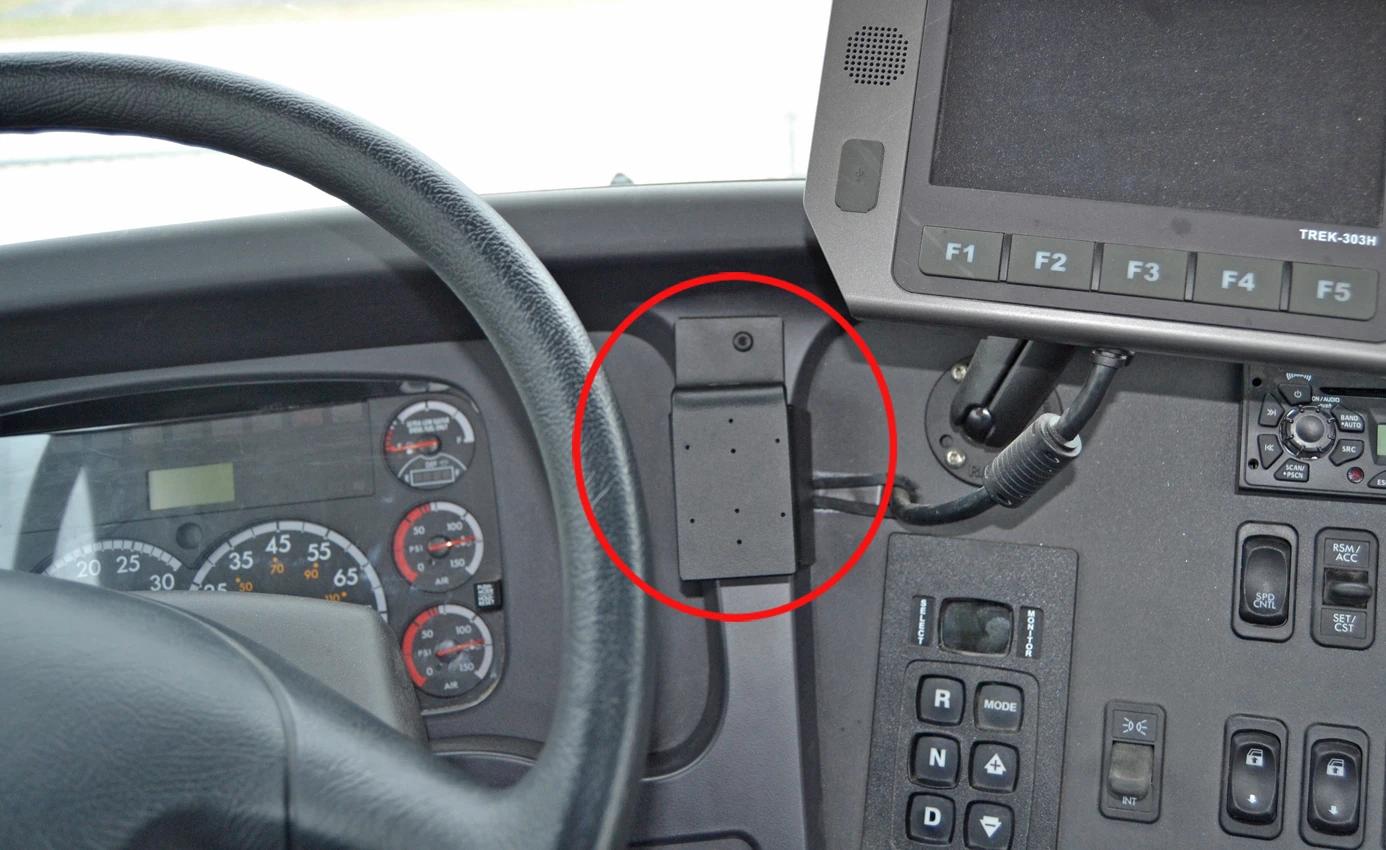

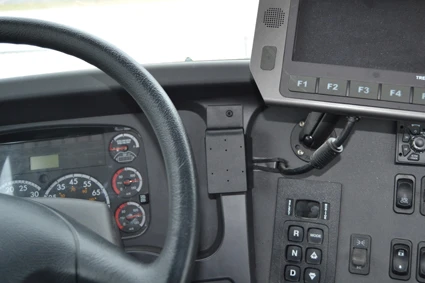

The ProClip is in place.
