The ProClip is a mounting bracket that you attach onto the vehicle’s dashboard. It provides a mounting platform for mobile phones and other devices that you want to have within easy sight and reach in the car. Safe, neat and convenient! The ProClip has a perfect fit, it is custom made for each vehicle to ensure a secure base for installations.
The ProClip is easy to install. The bracket simply snaps into place in gaps in the dashboard, you do not need to drill holes, not use special tools or not dismantle the dashboard. Made in black ABS plastic. Comes with detailed installation instructions. The mounting plate is equipped with predrilled holes which make the installation of equipment on the ProClip easier. The holes suit all Brodit holders and other products with standard holes, the hole pattern constists of one set of AMPS-holes as well as two sets of double-holes placed in different height.
دليل تركيب المنتج
رقم الخطوة 1

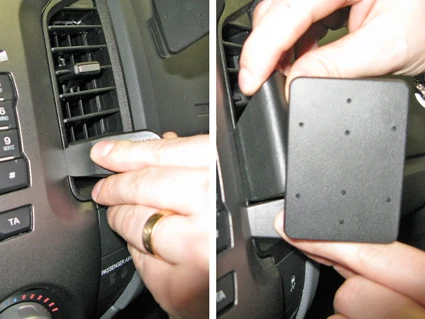

Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Peel off the adhesive tape cover on the ProClip. Press the thin end of the enclosed gap opener into the gap between the frame surrounding the air vent and the control panel, to widen the gap. Press the gap opener further into the gap and carefully prize the gap wider. In the same time: Press the angled edge on the left part of the ProClip into the gap above the gap opener. Pull out the gap opener.
رقم الخطوة 2

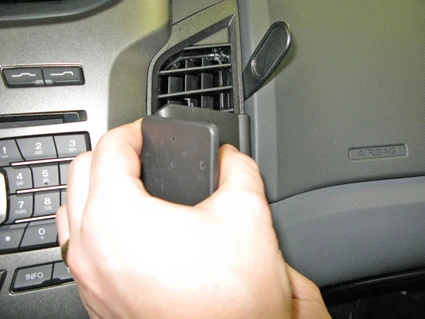

Press the gap opener into the gap between the frame surrounding the air vent and the dashboard, above the ProClip.
رقم الخطوة 3

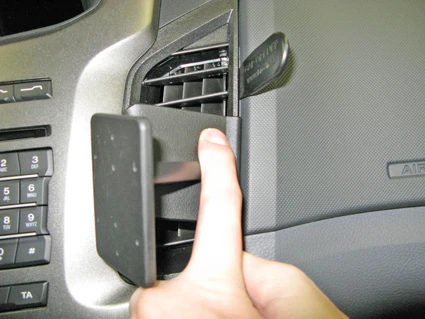

Press the ProClip righward and forward so the angled edge on the right part goes all the way into the gap below the gap opener. Pull out the gap opener.
رقم الخطوة 4

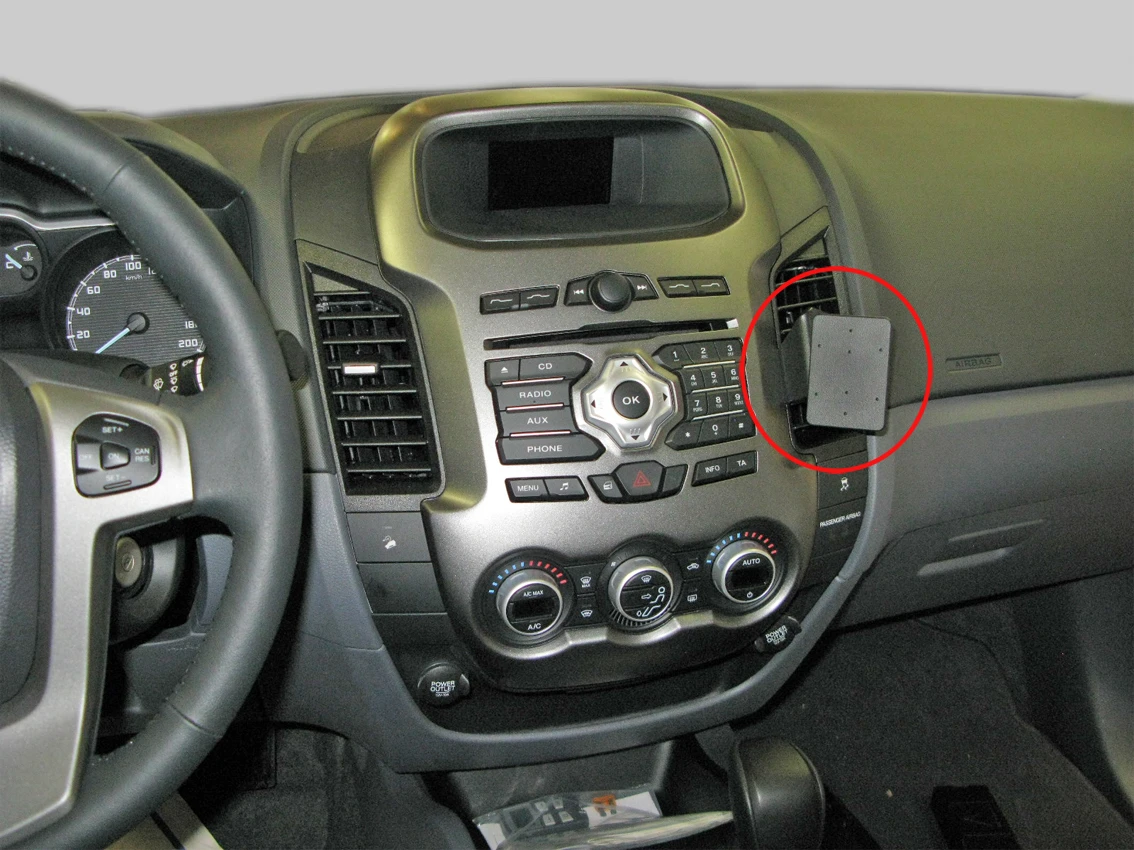

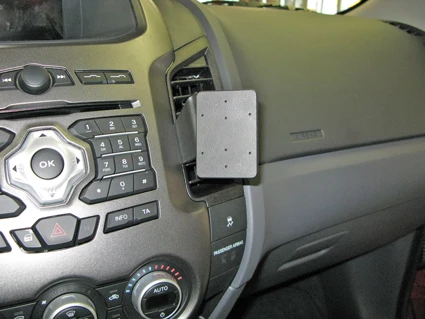

The ProClip is in place.
