ProClip
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

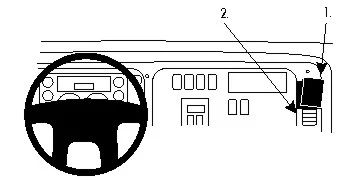

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

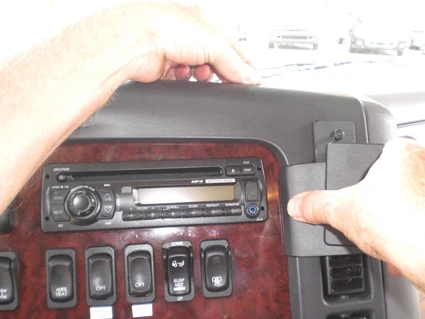

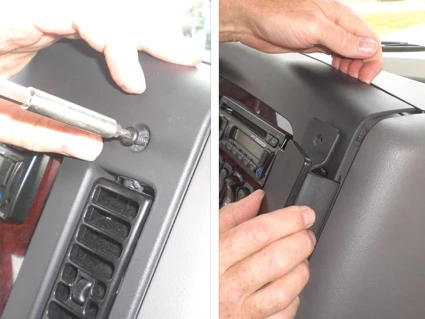

Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Remove the screw above the air vent. Peel off the cover of adhesive tape on the ProClip. Use your left hand to pull the top part of the panel frame towards approx. 15 mm (1/2 inch). Hook the angled edge on the right side of the ProClip around the panel frame edge.
رقم الخطوة 2
Align the ProClip over the screw hole. Push the panel frame back into place and screw the screw just a few threads into the screw hole.
رقم الخطوة 3

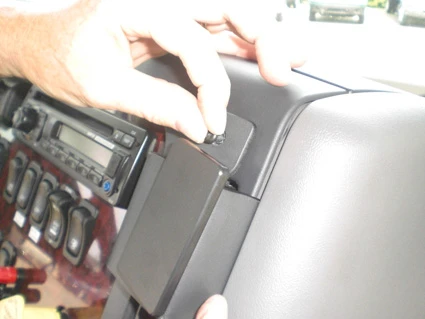

Using your left hand again, pull the panel frame slightly towards you. Push forward on the left side of the ProClip so the angled edge hooks around the panel frame edge. Push the panel frame back into place and secure it and the ProClip by tightening the screw.
رقم الخطوة 4

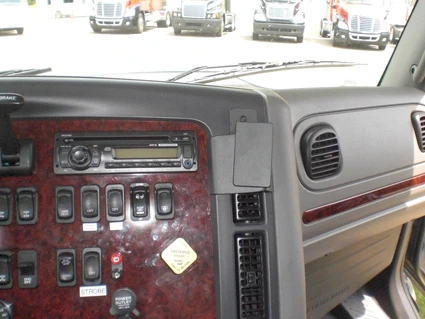

The ProClip is in place.
