تفاصيل المنتج
ProClip
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

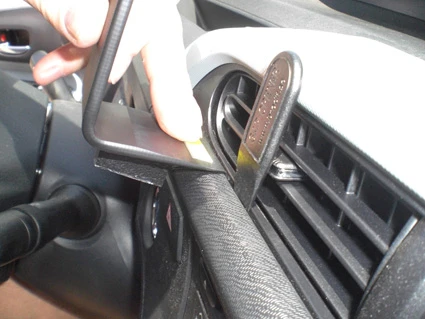

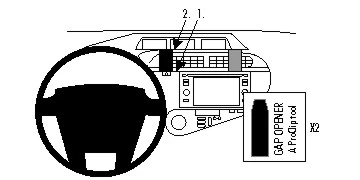

Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Press the thin end of one of the enclosed gap openers into the gap between the air vent panel frame and the console ledge, to widen the gap. Peel off the cover of adhesive tape on the ProClip. Press the angled edge on the lower part of the ProClip into the gap next to the gap opener. Flip the ProClip upwards and forward towards the center area of the dashboard so the angled edge on the lower part of the ProClip hooks behind the edge of the trim. Pull out the gap opener.
رقم الخطوة 2

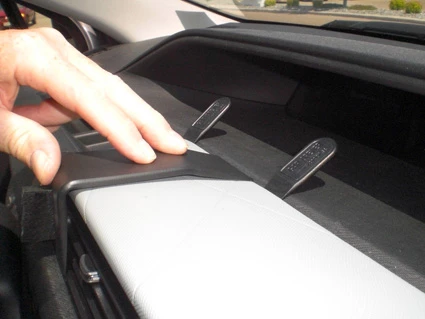

On each side of the ProClip, press the gap openers into the gap between the air vent panel frame and the dashboard. Start with the gap opener to the left of the ProClip. Push on the upper part of the ProClip so it flexes forward and hooks around the panel edge between the gap openers. Pull out the gap openers.
رقم الخطوة 3

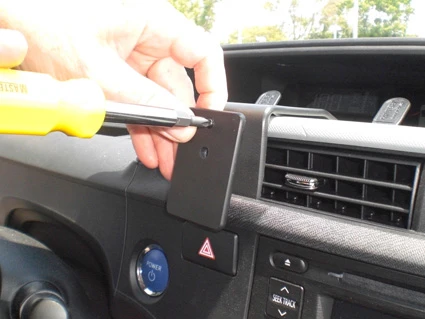

Attach the face plate to the ProClip with the enclosed screws.
رقم الخطوة 4

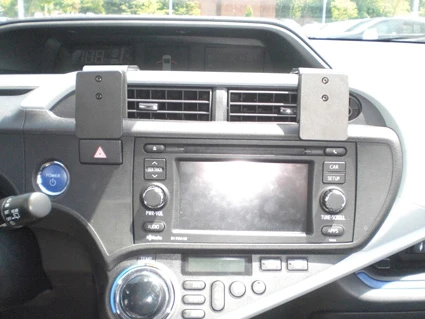

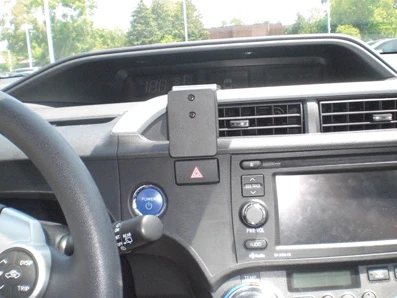

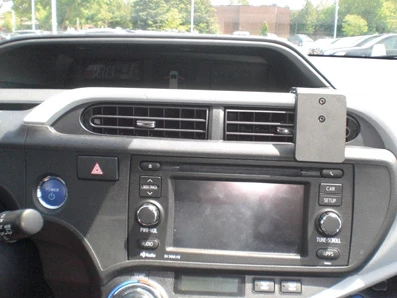

The ProClip is in place. This ProClip can be attached also over the right air vent.
