تفاصيل المنتج
ProClip
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

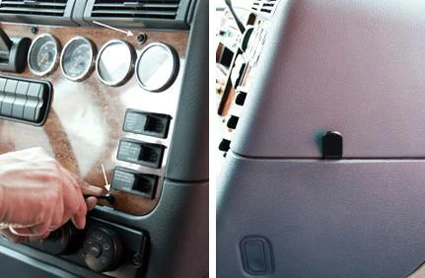

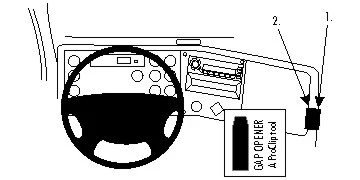

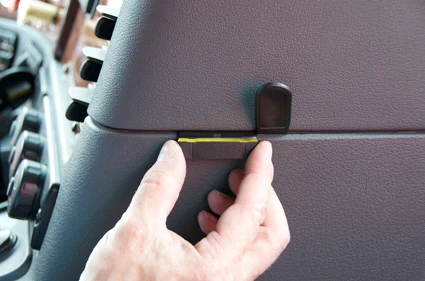

Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Loosen (do not remove) the two right side torx screws on the control panel. Press the thin end of the enclosed gap opener into the gap in the center console sidewall, to widen the gap. Start at the far right side of the gap and slide it leftward into the correct position.
رقم الخطوة 2
Peel off the cover of adhesive tape on both parts. Insert the curved edge of Part 1 into the gap next to the gap opener. Flip/rotate Part 1 upward so the curved edge goes into the gap. Before adhering it to the dash please make sure the holes will line up with Part 2.
رقم الخطوة 3

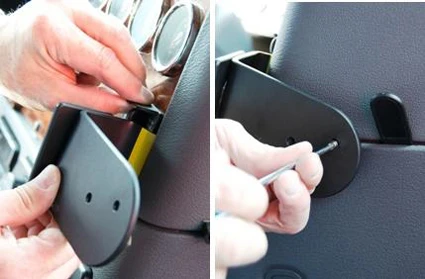

Pull the panel towards you in order to widen the gap. Press the curved edge of Part 2 into the panel gap. Flip/rotate the right side of the ProClip toward Part 1. Match the holes on the right side of Part 2 with the holes on Part 1 using the lines on top of Part 1 for guidance. Use the enclosed screws to attach Part 2 to Part 1. Draw the screws tight but be careful not to over tighten. Tighten the 2 torx screws in the control panel.
رقم الخطوة 4

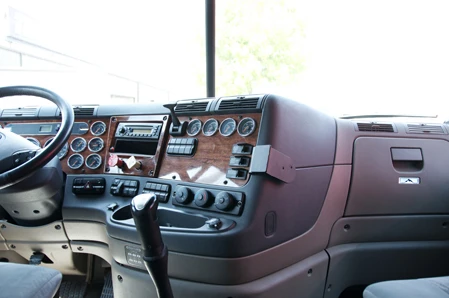

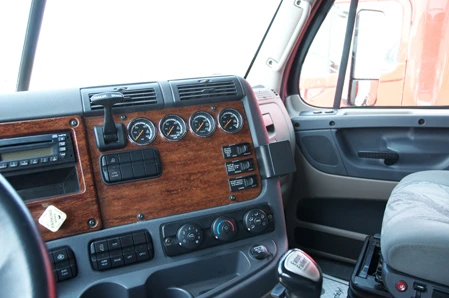

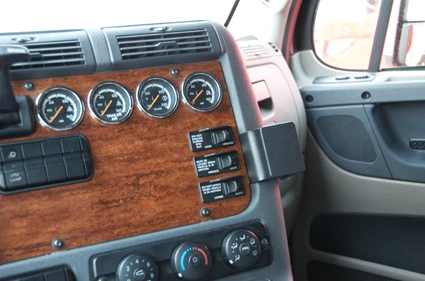

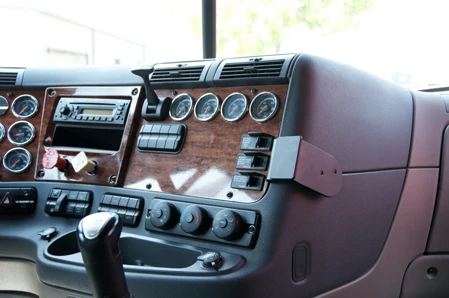

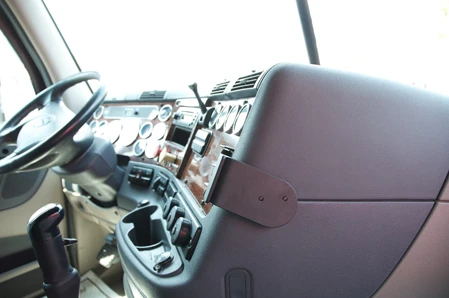

The ProClip is in place.
