تفاصيل المنتج
ProClip
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

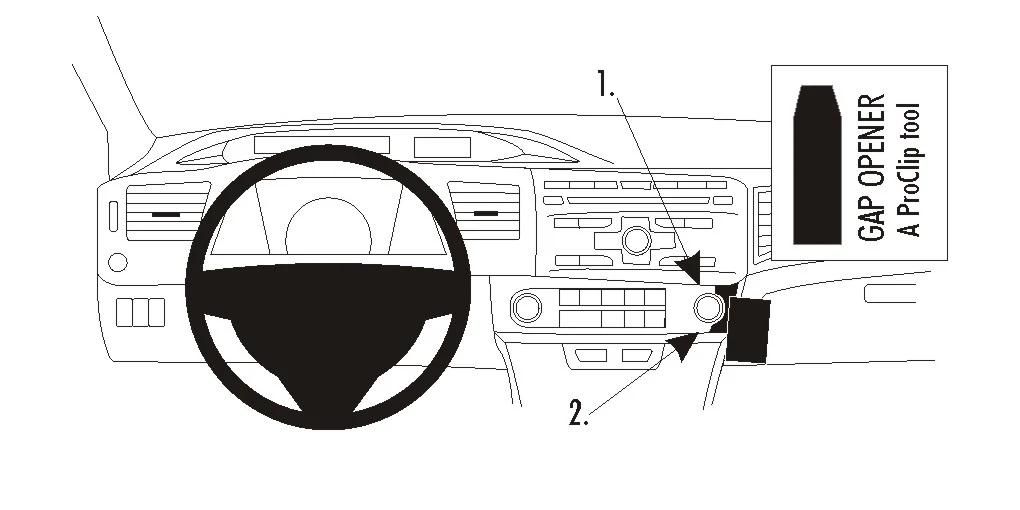

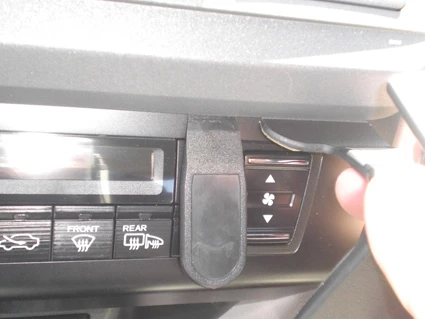

Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Press the thin end of the enclosed gap opener into the gap between the dashboard panel overhang and the climate control panel, to widen the gap just to the left of the fan control knob or button. Peel off the cover of adhesive tape on the ProClip. Hold the ProClip in a 90 degree angle. Press the angled edge on the upper part of the ProClip into the gap next to the gap opener.
رقم الخطوة 2

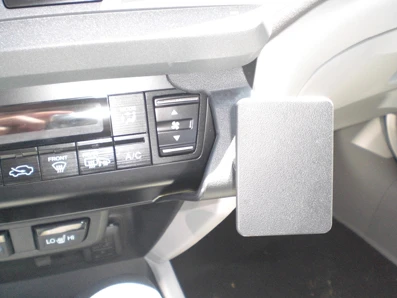

Flip the ProClip downward so the angled edge on the upper part of the ProClip hooks behind the dashboard panel overhang. Pull out the gap opener. Press firmly forward on the lower part of the ProClip so the angled lower edge goes into the seem/gap underneath the climate control panel overhang. Press until you hear/feel it snaps into place.
رقم الخطوة 3

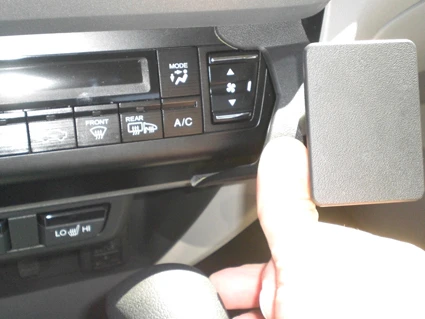

Press upward at the bottom part of the ProClip to make sure the angled edge is all the way into the gap.
رقم الخطوة 4

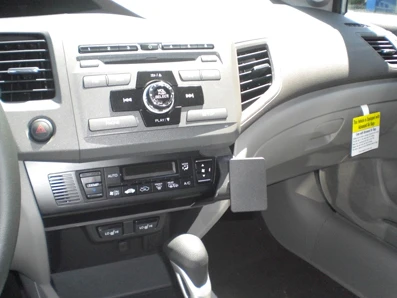

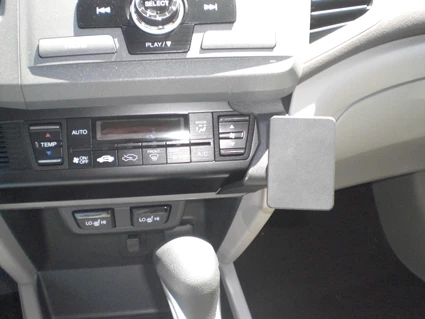

The ProClip is in place,
