تفاصيل المنتج
ProClip
10 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.

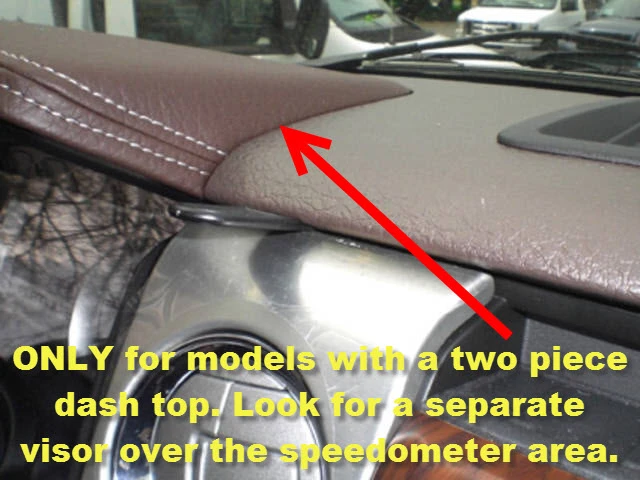

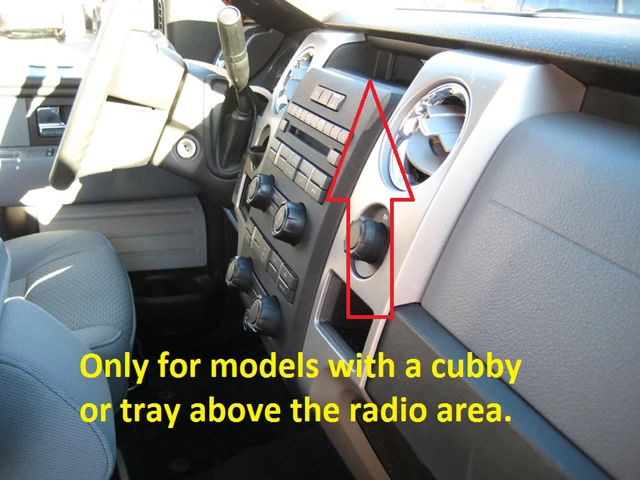

This ProClip fits models with and without factory navigation screen.
دليل تركيب المنتج
رقم الخطوة 1

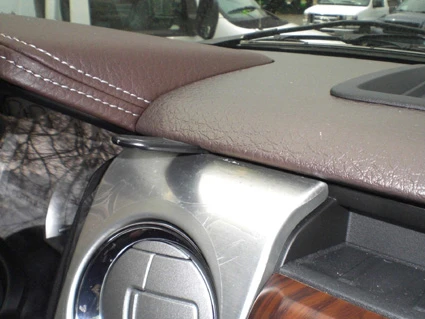

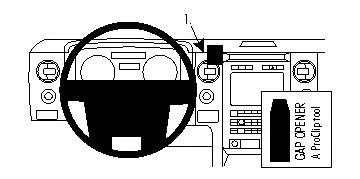

Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Press the thin end of the enclosed gap opener into the gap between the air vent panel frame and the dashboard edge, to widen the gap. Peel off the cover of the adhesive tape on Part 1.
رقم الخطوة 2

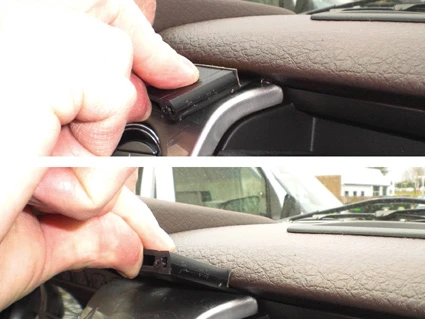

Place the thin edge of Part 1 against the gap next the gap opener. Press the thin edge firmly into the gap and at the same time: bend Part 1 upwards until you see or hear/feel it click into place. Pull out the gap opener.
رقم الخطوة 3

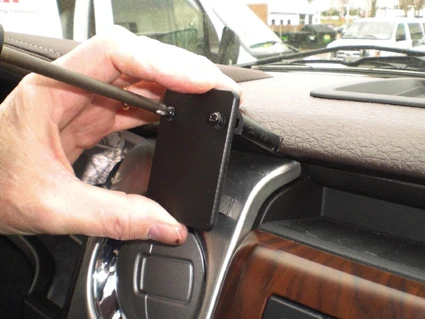

Press a screwdriver (Philips) through the predrilled holes in Part 2 to open them up. Peel off the cover of the adhesive tape on Part 2. Place Part 2 onto Part 1 so the holes match. Do not press the tape to the air vent panel frame yet. Screw Part 2 onto Part 1 using the enclosed screws. Right before you tighten the screws press the ProClip upwards with your thumb for optimal adjustment of the mount. Press the adhesive tape on the lower part of Part 2 to the air vent panel. Hold the ProClip in that position and tighten the screws.
رقم الخطوة 4

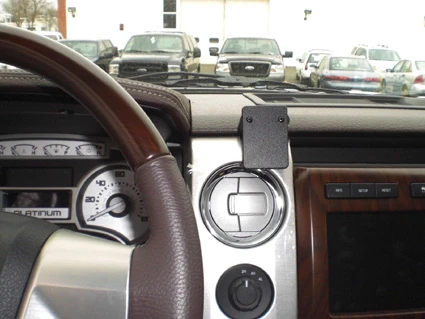

The ProClip is in place.
