ProClip
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
This ProClip fits models with and without factory navigation screen.
دليل تركيب المنتج
رقم الخطوة 1

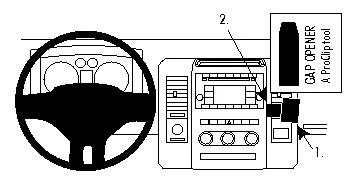

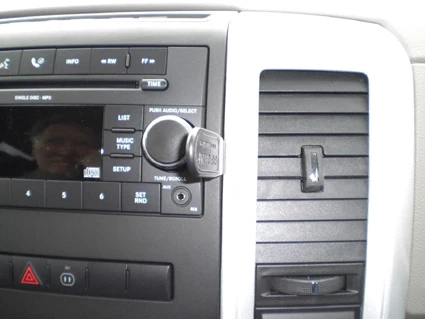

Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Press the thin end of the enclosed gap opener into the gap between the center console panel frame and the panel frame surrounding the air vent, to widen the gap. Peel off the cover of adhesive tape on the ProClip.
رقم الخطوة 2

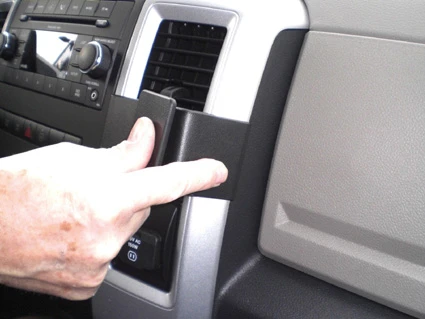

Hook the curved edge on the right side of the ProClip around the center console sidewall edge.
رقم الخطوة 3

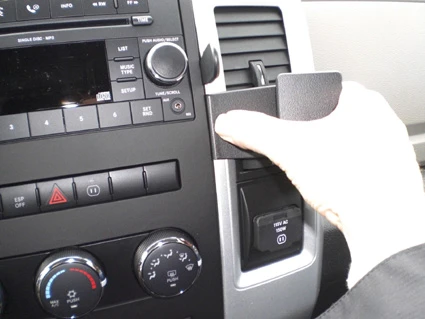

Place your hand over the ProClip face plate and push it to the left. The ProClip will now flex towards the stereo. Then press forward on the left side of the ProClip so the angled edge goes into the gap below the gap opener. Pull out the gap opener.
رقم الخطوة 4

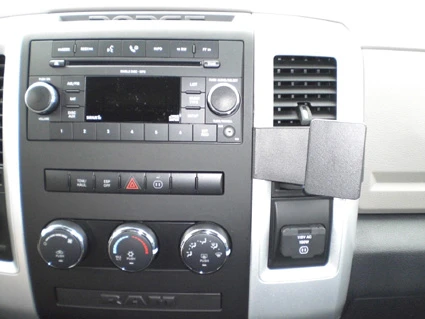

The ProClip is in place.
