The ProClip is a mounting bracket for the vehicle's dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

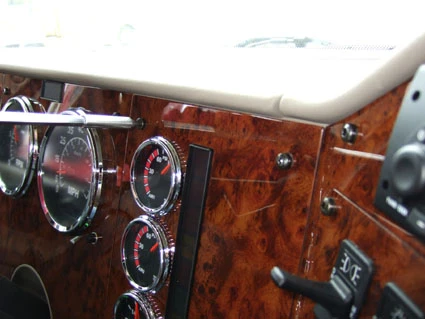

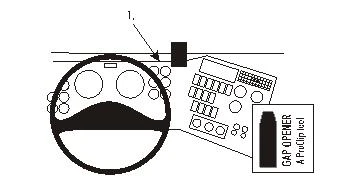

Loose the two upper screws on the center panel. Peel off the cover of the adhesive tape on Part 1.
رقم الخطوة 2

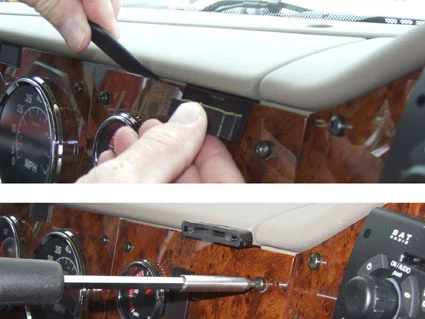

Press the thin end of the enclosed gap opener into the gap between the dashboard edge and the center panel. Bend the panel slightly towards you using the gap opener. Place the angled edge of Part 1 against the gap next to the opener. Press the angled edge firmly into the gap and at the same time bend Part 1 upwards until you see or hear/feel it snaps into place and the adhesive tape attaches to the dashboard edge. Part 1 is in place. Tighten both screws in the center panel.
رقم الخطوة 3

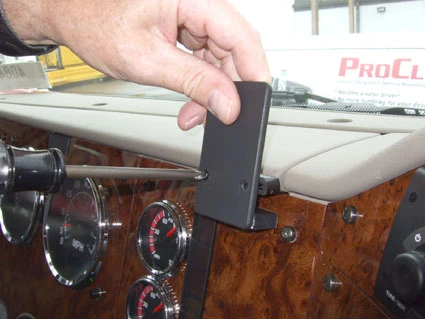

Press a screwdriver (Philips) firmly through the predrilled holes in Part 2 to open them up. Peel off the cover of the adhesive tape on Part 2. Place Part 2 onto Part 1 so the holes match and the adhesive tape on Part 2 is on the lower side. Screw Part 2 onto Part 1 using the enclosed screws.
رقم الخطوة 4

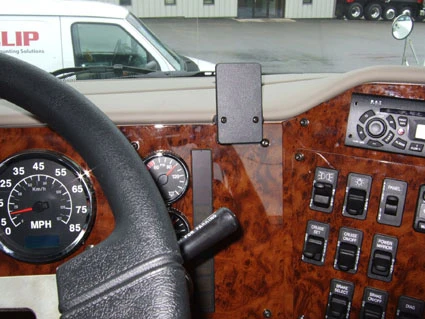

The ProClip is in place.
