تفاصيل المنتج
ProClip
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

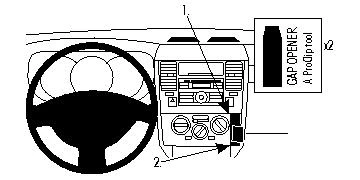

The ProClip is a mounting bracket for the vehicle's dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

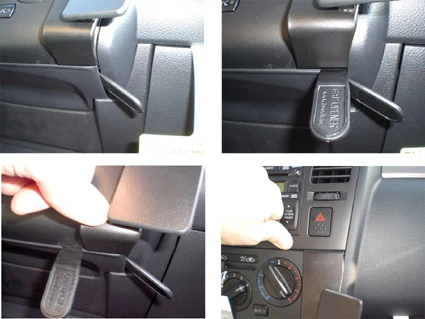

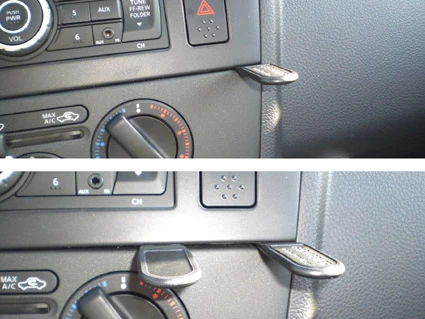

Press the thin end of one of the enclosed gap openers into the gap between the upper and lower center console panel frames, to widen the gap. Press the second gap opener into the gap next to the first gap opener to widen the gap even more. Note: The upper center console panel may pop out a few millimeters, which is OK. Pull out the right gap opener. Peel off the cover of adhesive tape on the ProClip.
رقم الخطوة 2

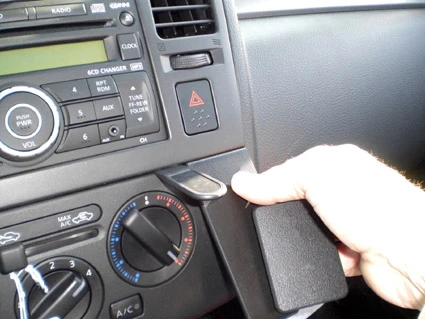

Press the curved edge on the upper part of the ProClip into the gap next to the gap opener. Flip the ProClip downward so the upper curved edge of the ProClip hooks behind the upper center console panel. Pull out the gap opener.
رقم الخطوة 3
Press a gap opener into the gap between the center console sidewall and the panel frame underneath the dashboard overhang. Press the other gap opener in the gap in the front of the panel frame underneath the dashboard overhang. Slide the gap opener to the left so it is positioned to the left of the ProClip. Press firmly forward on the lower part of the ProClip so the angled edge goes into the gap next to the gap opener. Press until you see or hear/feel it click into place. Pull out the gap openers. Press the upper center console panel back into place if it popped out.
رقم الخطوة 4

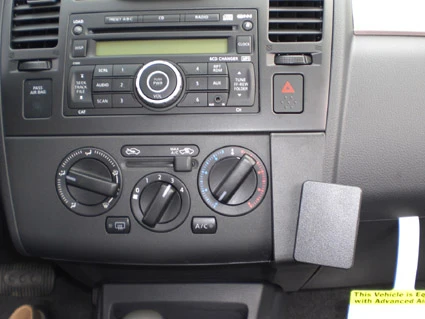

The ProClip is in place.
