تفاصيل المنتج
ProClip
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The ProClip is a mounting bracket for the vehicle's dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.

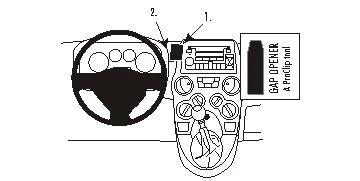

دليل تركيب المنتج
رقم الخطوة 1

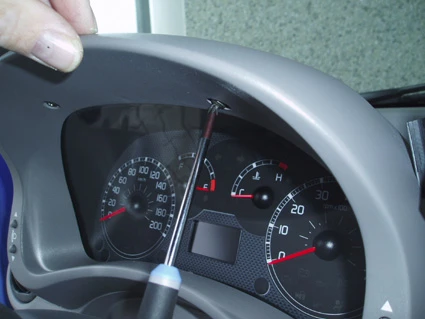

Loosen the screw to the right under the dashboard overhang above the instrument window. Peel off the cover of the adhesive tape on the ProClip.
رقم الخطوة 2

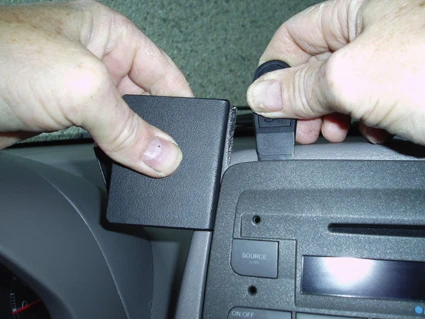

Press the thin end of the enclosed gap opener into the gap between the control panel and the dashboard, to widen the gap. Place the ProClip above the gap between the control panel and the dashboard. Press forwards on the gap opener so the gap is widened, in the same time press the lower right corner of the ProClip into the gap. Press the ProClip about 5 cm downwards in the gap. Pull out the gap opener.
رقم الخطوة 3

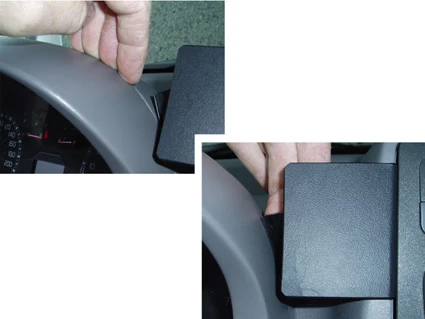

Take a hold of the dashboard overhang above the instrument window and pull it towards you so the gap on top of the dashboard is widened. In the same time: press the ProClip downwards in the gap and pull the left side of the ProClip towards you so the angled left edge goes into the gap between the dashboard overhang and the dashboard. Tighten the screw.
رقم الخطوة 4

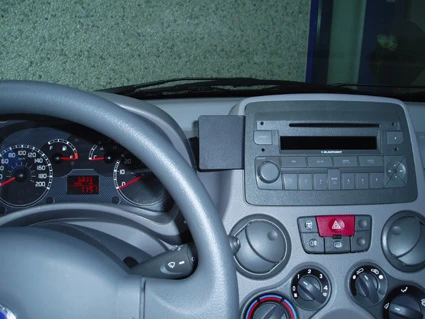

The ProClip is in place.
