The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

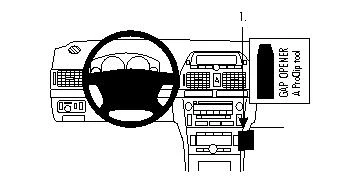

Attaching piece (the smallest part) Part 2. ProClip face plate
رقم الخطوة 2

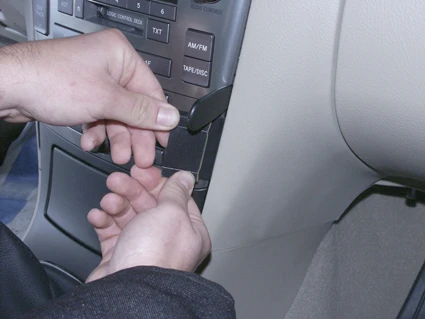

Press the thin end of the enclosed gap opener into the gap between the control panel and the dashboard to widen the gap. Peel off the cover of the adhesive tape on Part 1. Press the angled edge on Part 1 into the gap below the gap opener.
رقم الخطوة 3

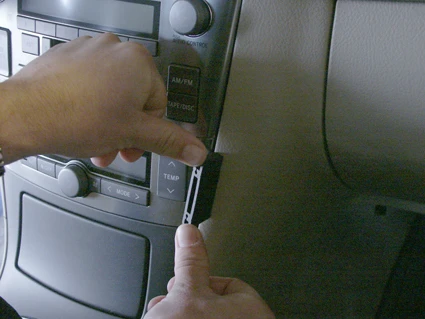

Press forwards and o the right on Part 1, away from the steering wheel, so the angled edge hooks behind the control panel and the adhesive tape attaches to the dashboard. Pull out the gap opener.
رقم الخطوة 4

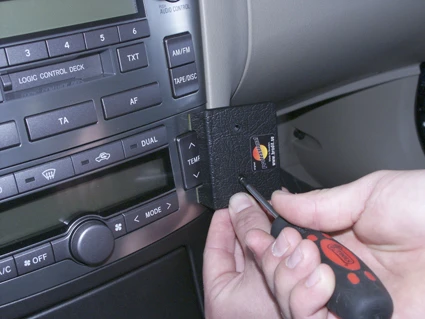

Open up the predrilled holes in Part 2 with a screwdriver (Philips). Peel off the adhesive tape covers on Part 2. Place Part 2 over Part 1 so the left parts on Part 2 (with adhesive tape) attach to the control panel above and below the button. Adjust Part 1 upwards/downwards in the gap so the holes match the holes in Part 2. Screw Part 2 onto Part 1 with the enclosed screws. NOTE! Screw the screws straight into Part 1, in the same angle as Part 1.
رقم الخطوة 5

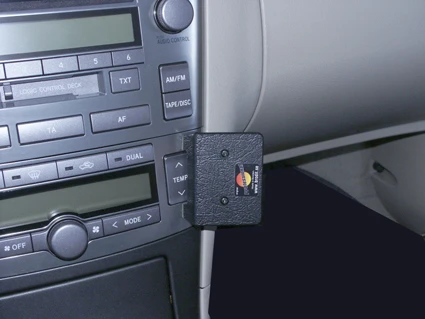

The ProClip is in place.
