The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

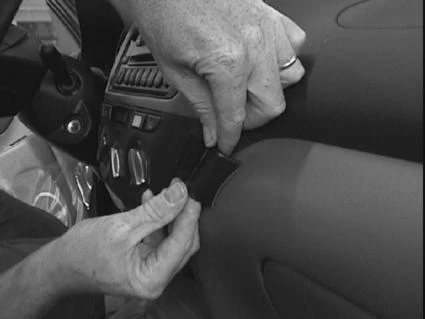

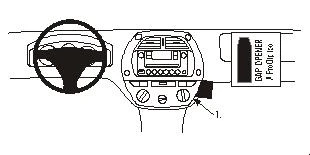

Attaching piece. Part 2. ProClip face plate. Press the thin end of the enclosed gap opener into the gap between the dashboard and the frame surrounding the center panel. Peel off the cover of the adhesive tape on Part 1.
رقم الخطوة 2

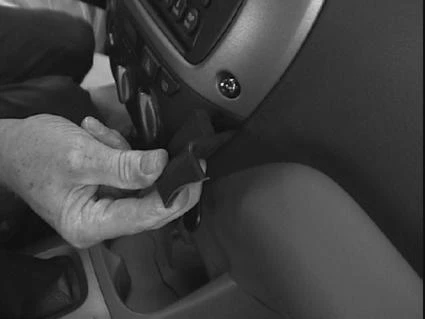

Press the angled left edge on Part 1 into the gap above the gap opener.
رقم الخطوة 3
Push Part 1 away from the steering wheel, so the angled edge hooks under/behind the console frame and the adhesive tape sticks to the dashboard.
رقم الخطوة 4

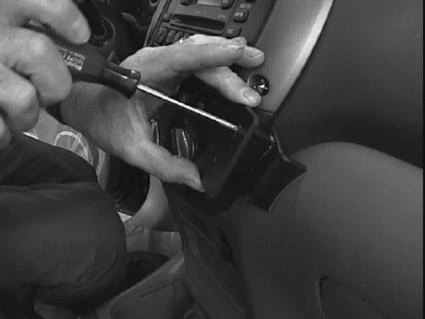

Press a screwdriver through the predrilled holes in Part 2 to open them up. Peel off the cover of the adhesive tape on Part 2. Place Part 2 over Part 1 so the holes match up. Screw the enclosed screws into the holes on Part 2.
رقم الخطوة 5

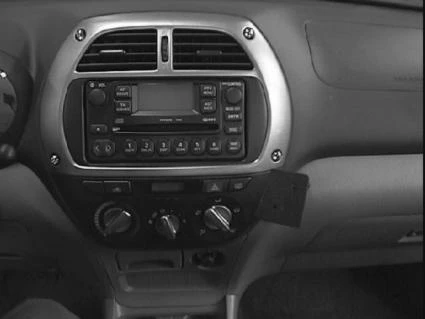

The ProClip is in place.
