The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

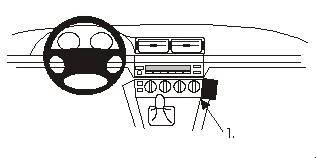

Attaching part (the smallest part) Part 2. ProClip face plate.
رقم الخطوة 2

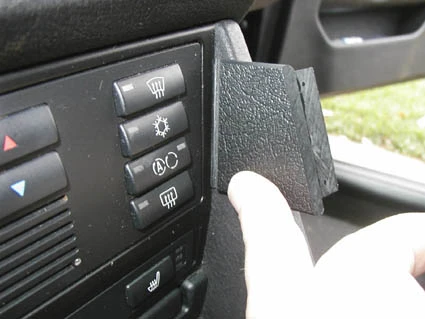

Place the grooved edge of Part 1 towards the gap between the climate control panel and the padded console edge.
رقم الخطوة 3

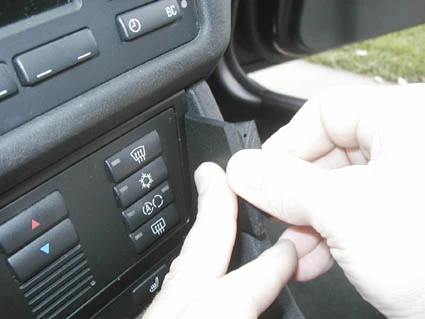

Press Part 1 firmly towards the padded console wall with your left hand and at the same time: press firmly forward on Part 1, towards the climate control panel, so the grooved edge goes into the gap between the climate control panel and the padded console edge. Press until you see or hear/feel it snaps into place. (Note: the gap is very tight so you may have to start pressing on top of Part 1 and then follow through with the lower part of Part 1.)
رقم الخطوة 4

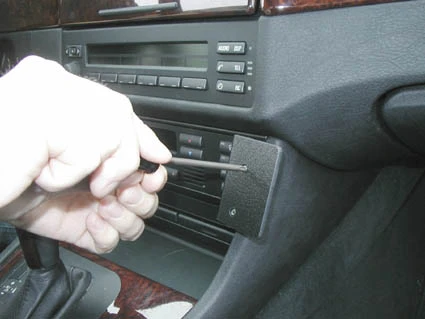

Press a screwdriver (Philips) firmly through the predrilled holes in Part 2 to open them up. Peel off the cover of the adhesive tape on Part 2. Place Part 2 onto Part 1 so the holes match and the adhesive tape on Part 2 is on the left side attaching to the climate control panel. Screw Part 2 onto Part 1 using the enclosed screws.
رقم الخطوة 5

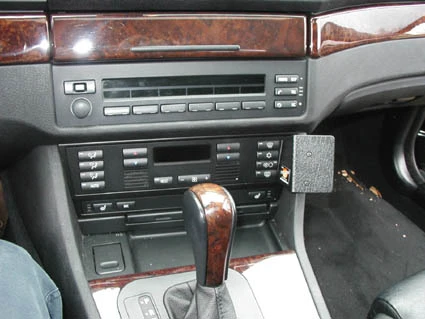

The ProClip is in place.
