The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

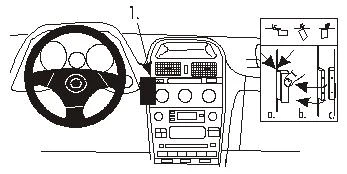

The attaching part (the smallest part) Part 2. The ProClip faceplate
رقم الخطوة 2

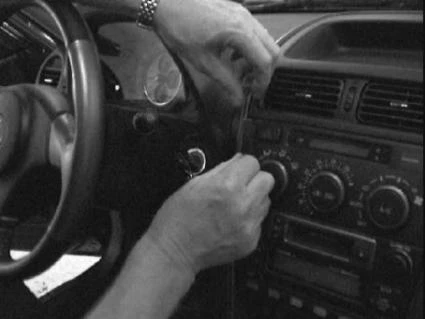

Peel off the cover of the adhesive tape on Part 1. Press the angled edge of Part 1 into the gap bertween the center console panel and the console edge.
رقم الخطوة 3

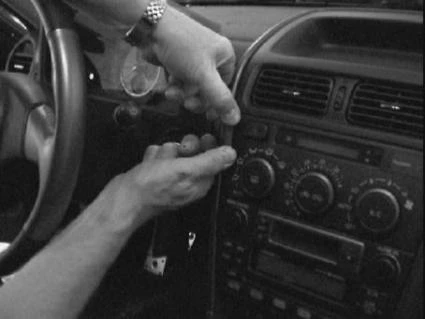

Bend Part 1 to the left so the angled edge of Part 1 hooks behind the center console panel frame and the adhesive sticks to the console edge.
رقم الخطوة 4

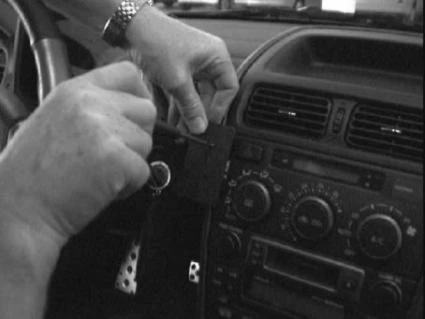

Press a screwdriver firmly through the large holes in Part 2 to open them up. Peel off the cover of the adhesive tape on Part 2. Place Part 2 onto Part 1 so the holes match and the adhesive tape on Part 2 is on the right side attaching to the center console panel. Screw Part 2 onto Part 1with the enclosed screws.
رقم الخطوة 5

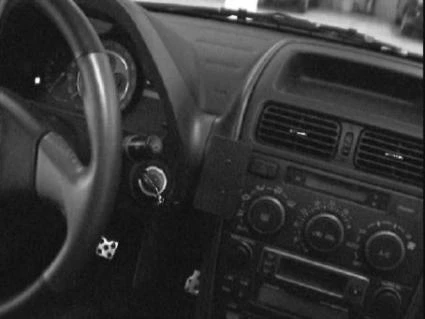

The ProClip is in place.
