تفاصيل المنتج
ProClip
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

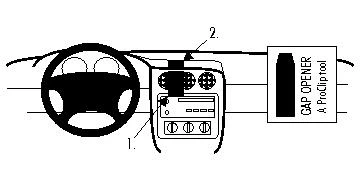

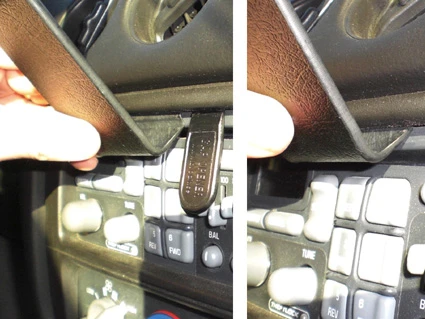

Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Press the thin end of the enclosed gap opener into the gap between the stereo and the surrounding panel frame, to widen the gap. Peel off the adhesive tape covers on the ProClip. Place the curved edge on the lower part of the ProClip towards the gap next to the gap opener. Press the curved edge firmly upwards so it snaps into the gap. The gap opener will drop from the gap as the curved edge is pressed into the gap.
رقم الخطوة 2

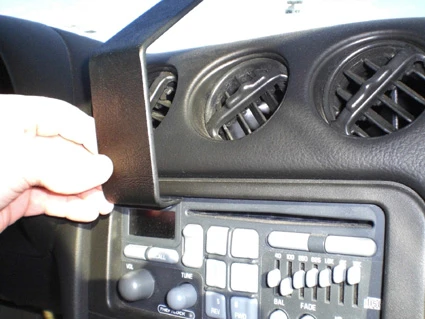

Slide the ProClip to the all the way to the left and flip it forward, towards the air vent.
رقم الخطوة 3

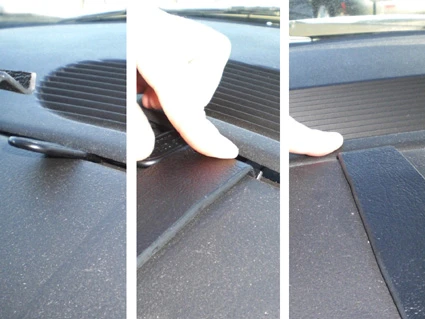

Press the gap opener in a 45 degrees angle into the gap on top of the dashboard, to widen the gap. Press down on the thick end of the gap opener so the gap in the dashboard panel opens wide. Press down on top of the ProClip so the curved edge hooks under the panel edge. Let go of the pressure on the gap opener and pull it out. Press down on top of the dashboard panel to make sure it is back into place.
رقم الخطوة 4

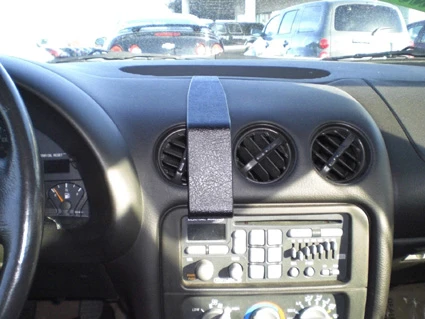

The ProClip is in place.
