تفاصيل المنتج
ProClip
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

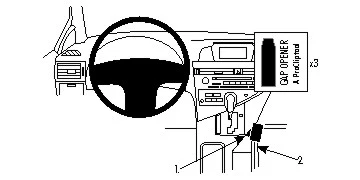

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1
The gap/seam underneath the center console is very tight so you will have to move the gap opener along the gap in a step by step manner (inserting one next to the other), to widen the gap. Press the thin end of one of the enclosed gap openers into the gap underneath the center console. Press the second gap opener into the gap next to the first gap opener. Pull out the first gap opener and insert it into the gap next to the second gap opener, and continue doing this until you have one gap opener in the mid area of the console.
رقم الخطوة 2

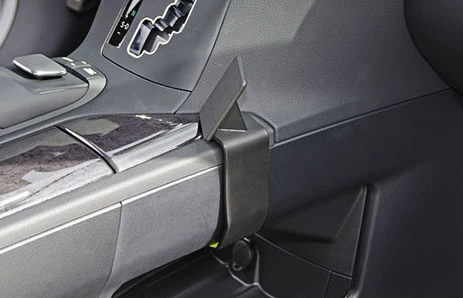

Press the third gap opener into the gap on top of the center console. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Peel off the cover of adhesive tape on the ProClip. Press the angled edge on the upper part of the ProClip into the gap next to the gap opener.
رقم الخطوة 3

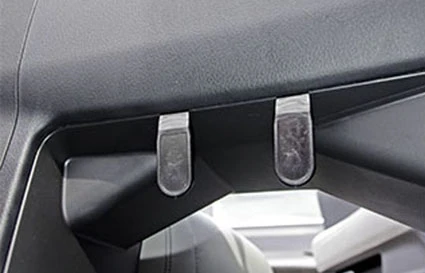

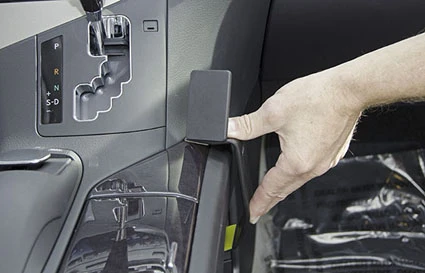

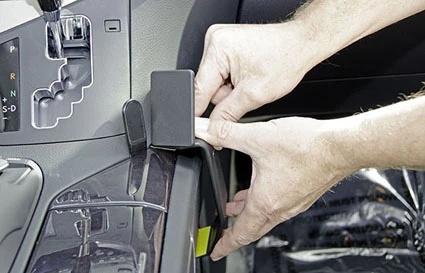

Support the placement of the upper part of the ProClip with your thumb and at the same time press on the lower part of the ProClip with your fingers so the angled edge hooks into the gap between the gap openers. Press until you see or hear/feel it click into place. Pull out all gap openers.
رقم الخطوة 4

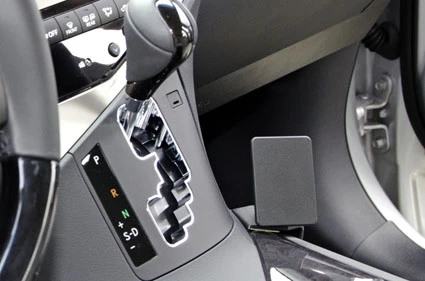

The ProClip is in place.
