The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
NOTE: This ProClip can NOT be installed together with other ProClips that are placed by the left air vent (item no 654257 and 654625).
دليل تركيب المنتج
رقم الخطوة 1

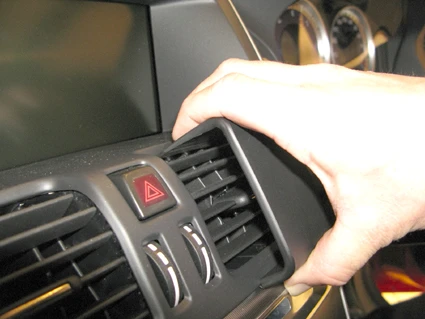

Press the curved edge on the lower part of the ProClip into the gap between the frame surrounding the air vent and the control panel. Flip the ProClip upward/forward so the curved lower edge goes all the way into the gap and hooks behind the control panel.
رقم الخطوة 2

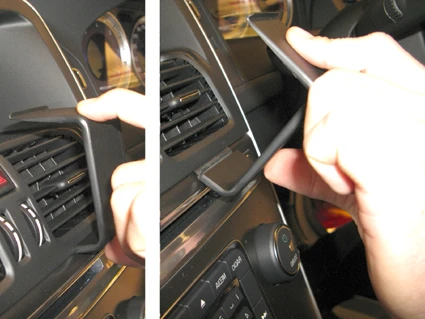

Press the upper part of the ProClip downward and then forward into the upper part of the air vent. Keep the lower part of the ProClip in place in the same position, in the same time pull the upper part toward you so the gap under the frame surrounding the air vent is widened and the angled upper edge of the ProClip hooks into the gap under the frame surrounding the air vent.
رقم الخطوة 3

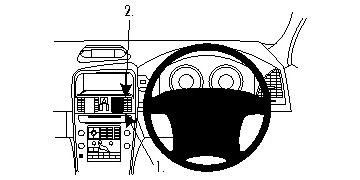

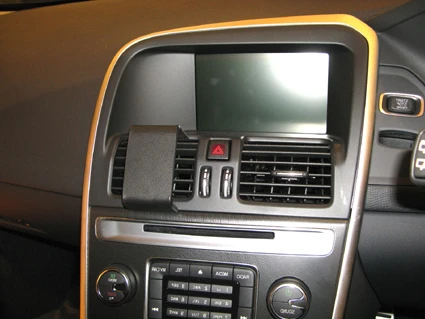

This ProClip can be placed both on the left and the right air vent.
رقم الخطوة 4

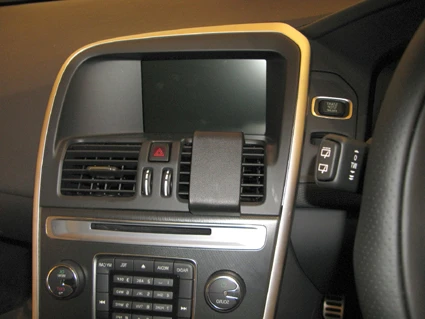

The ProClip is in place.
