تفاصيل المنتج
ProClip
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1
Peel off the cover of the adhesive tape on Part 1. Place the thin edge against the seam/gap between the center console panel frame and the console edge. Place Part 1 so the top is aligned with the seam above the CD slot.
رقم الخطوة 2

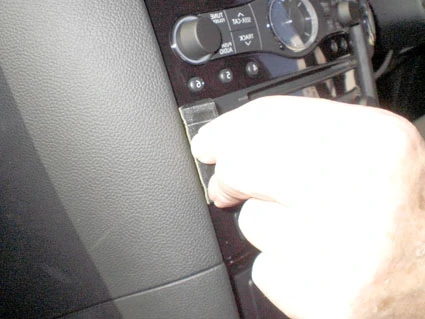

Press the thin edge firmly into the gap and at the same time bend Part 1 to the left until you see or hear/feel it click into place.
رقم الخطوة 3

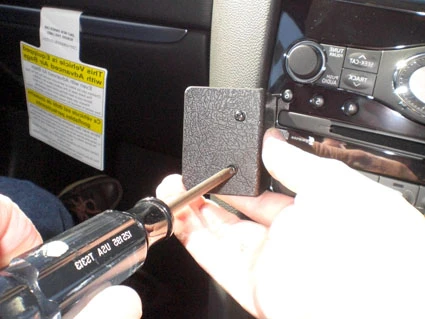

Press a screwdriver (Philips) firmly through the predrilled holes in Part 2 to open them up. Peel off the cover of the adhesive tape on Part 2. Place Part 2 onto Part 1 so the holes match and the adhesive tape on Part 2 is on the right side. Do not press the tape to the center console panel frame yet. Screw Part 2 onto Part 1 using the enclosed screws. Right before you tighten the screws press the ProClip to the left with your thumb for optimal adjustment of the mount. Then press the adhesive tape on the right side of Part 2 to the center panel. Hold the ProClip in that position and tighten the screws.
رقم الخطوة 4

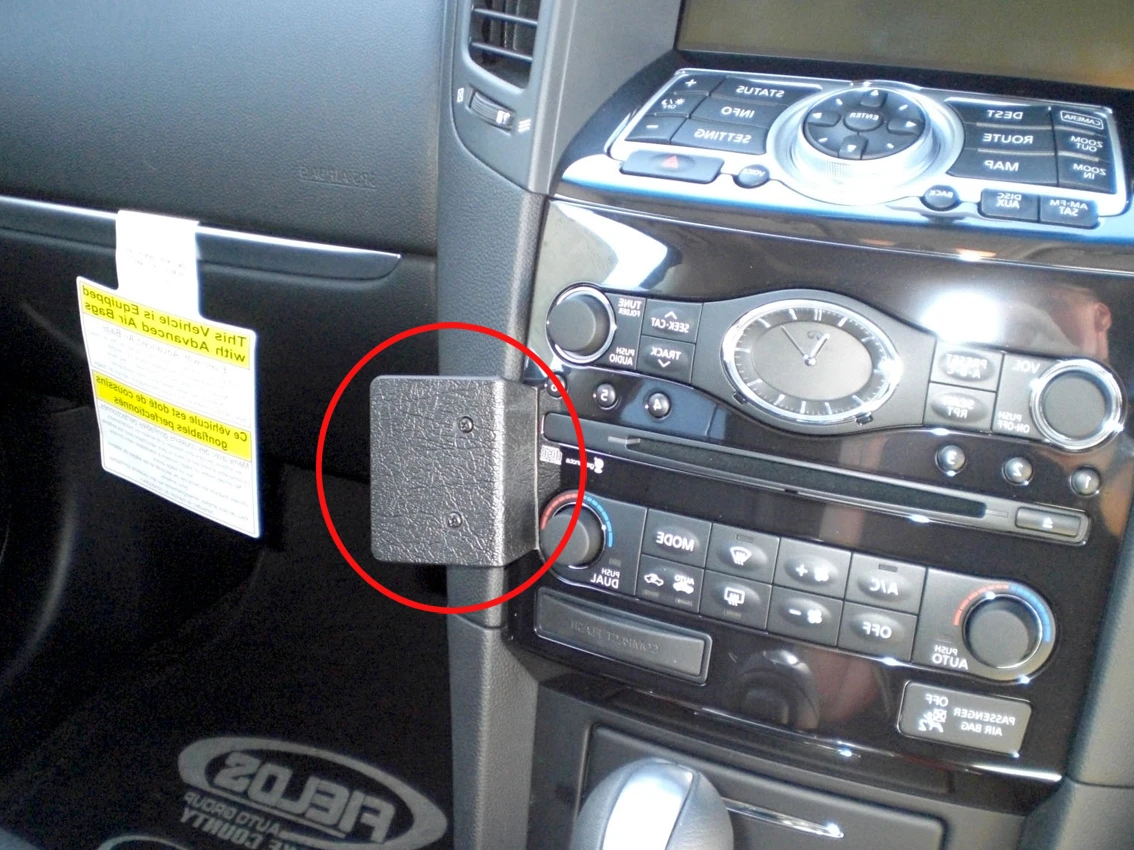

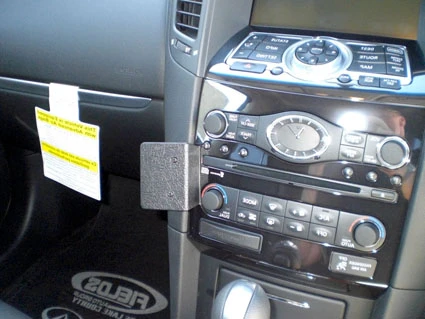

The ProClip is in place.
