ProClip
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The ProClip is a mounting bracket for the vehicle's dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

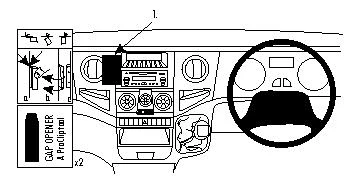

Attaching part (the smallest part) Part 2. ProClip face plate
رقم الخطوة 2

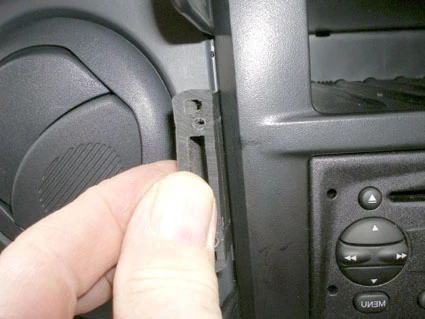

Press the thin end of the enclosed gap openers into the gap between the frame surrounding the control panel and the panel surrounding the air vent, to widen the gap. Peel off the adhesive tape cover on Part 1. Press the angled edge on Part 1 into the gap between the gap openers. Press Part 1 leftward/forward and slide it downward in the gap until it stops.
رقم الخطوة 3

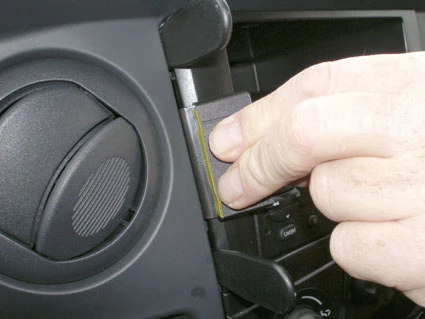

Press forward/leftward on Part 1 so the angled edge hooks behind the frame surrounding the control panel and the adhesive tape attaches. Pull out the gap openers.
رقم الخطوة 4

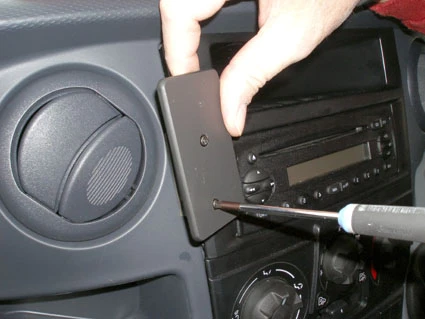

Open up the predrilled hole in Part 2 with a screw driver (Philips). Peel off the adhesive tape covers on Part 2. Place Part 2 onto Part 1 so the holes match. Screw Part 2 onto Part 1 with the enclosed screws. Screw straight into Part 1, in the same angle as Part 1.
رقم الخطوة 5

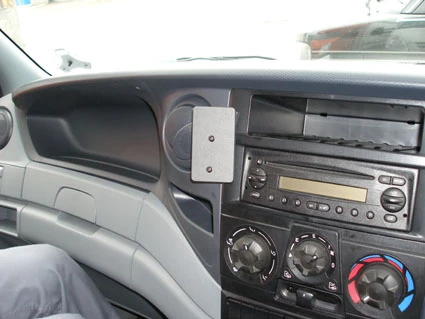

The ProClip is in place.
