تفاصيل المنتج
ProClip
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

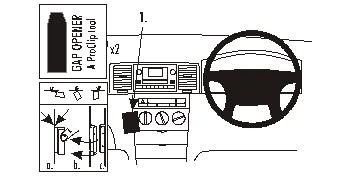

The attaching part (the smallest part) Part 2. The ProClip face plate
رقم الخطوة 2

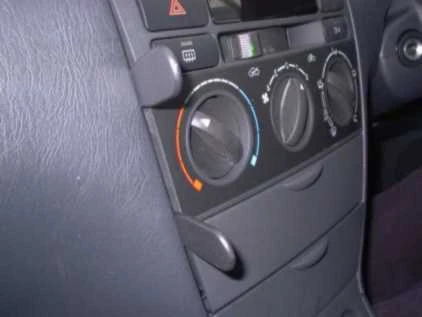

Press the thin end of the enclosed gap openers into the gap between the control panel and the dashboard to widen the gap.
رقم الخطوة 3

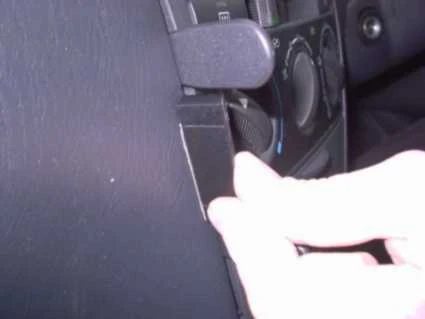

Peel off the cover of the adhesive tape on Part 1. Press Part 1 into the gap between the gap openers. Press to the left on Part 1, away from the steering wheel, so the angled edge hooks under/behind the control panel and the adhesive attaches to the dashboard. Pull out the gap openers.
رقم الخطوة 4

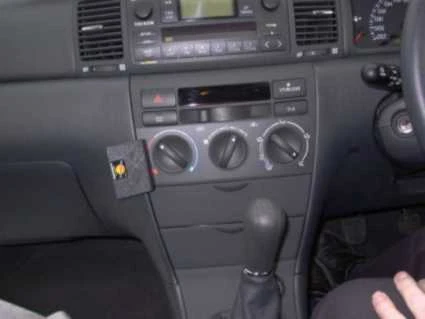

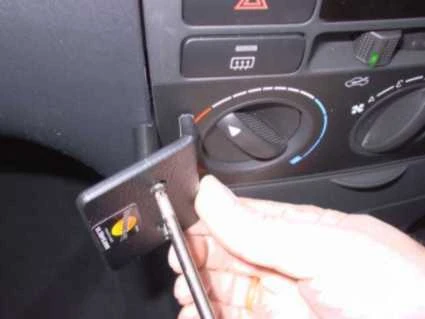

Open up the predrilled holes in Part 2 with a screwdriver (Philips). Peel off the cover of the adhesive tape on Part 2. Place Part 2 onto Part 1 so the holes match. Screw Part 2 onto Part 1 with the enclosed screws. NOTE! Screw the screws straight into Part 1, in the same angle as Part 1. The ProClip is in place.
