ProClip
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.
دليل تركيب المنتج
رقم الخطوة 1

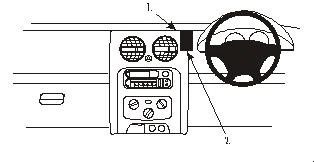

Attaching part (the smallest part) Part 2. ProClip face plate
رقم الخطوة 2

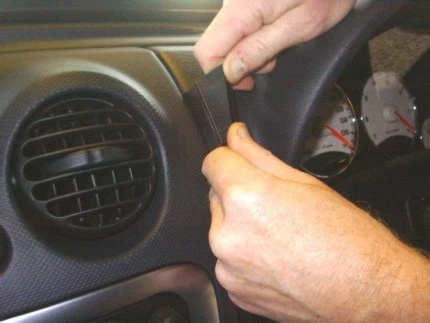

Peel off the cover of the adhesive tape on Part 1. Press the angled edge of Part 1 into the gap between the dashboard and the frame surroung the air vent. Press forwards/to the right on Part 1 so it goes all the way into the gap and the adhesive tape attaches.
رقم الخطوة 3

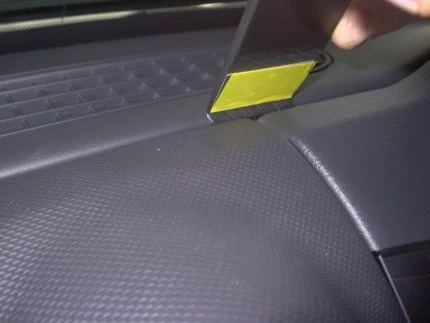

Peel off the cover of the adhesive tape on Part 2. Press the upper part of Part 2 into the gap between the dashboard and the panel surrounding the air vent/the dashboard surrounding the instrument panel.
رقم الخطوة 4

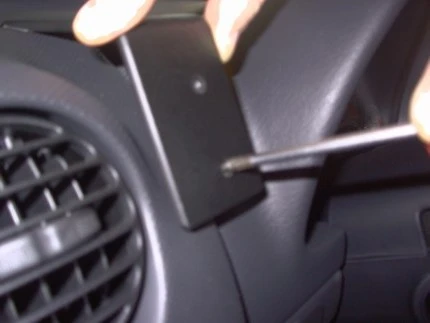

Adjust Part 1 so the holes match the holes in Part 2. Screw Part 2 onto Part 1 using the enclosed screws. Note! Screw the screws straight into Part 1, in the same angle as Part 1.
رقم الخطوة 5

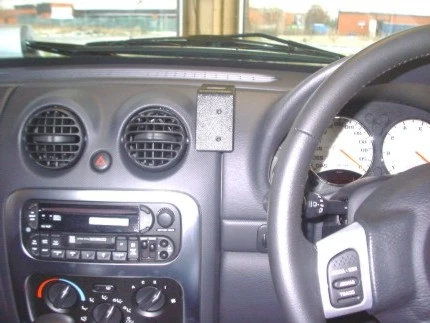

The ProClip is in place.
