Extra strength ProClip mounting platform with hinge feature provides easy access to both the display and the installed device. Designed for installation of larger handheld devices, such as surfpads, for every day professional use. Keep your device installed in your vehicle, and you will get a more efficient, safe and comfortable work day. Onto the ProClip you can attach any accessory, such as a holder for a screen, surfpad, printer, handheld computer, mobile phone etc. The position has been carefully chosen in order offer an installation of your device within easy sight and rech.

The ProClip is model specific, it is customized for each vehicle and has a perfect fit. The ProClip is a firm mounting platform and is available in multiple positions for most vehicles. Discreet design that blends in well with the interior.

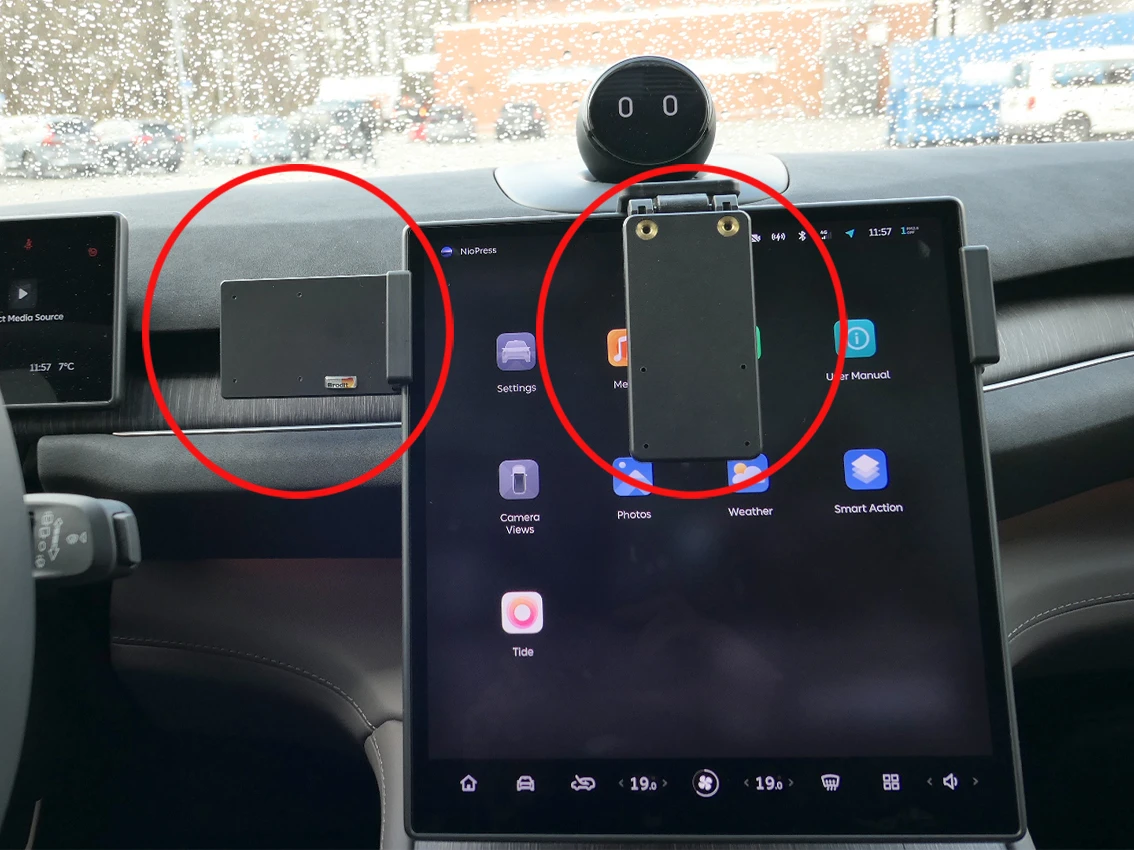

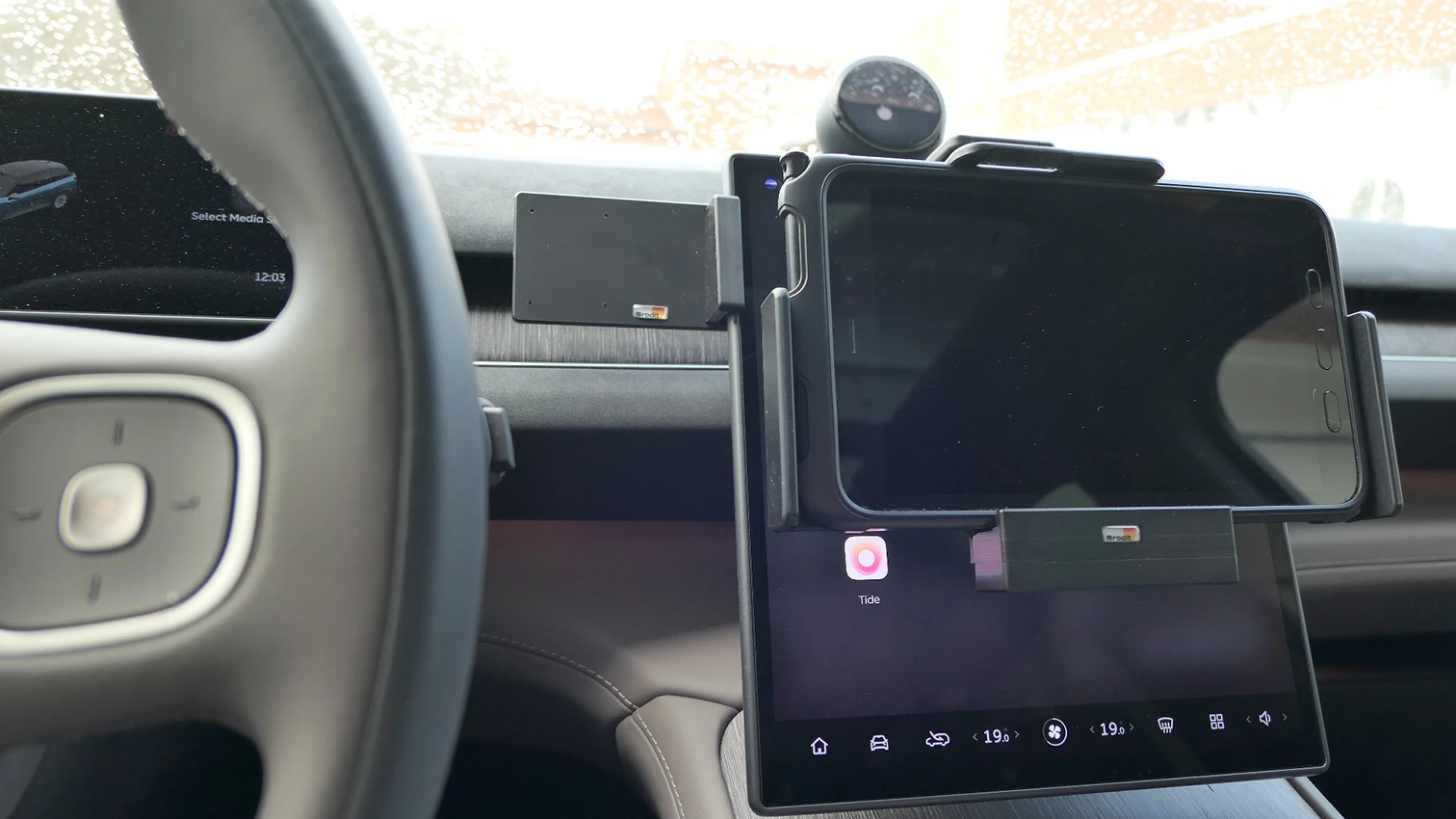

Robust and strong mount with hinge-function. Enables for installation of an addition device in front of the screen in your car while remaining the access to the screen. You get the installed device within easy sight and reach, and can easily lift it up in order to get access to the screen in your car. The hinge opens 0-180° but the normal opening angle is abour 90° depending on the height of the holder/device. 90x86x20 mm.

The ProClip is easy to install, you can do it in a minute! You simply snap the ProClip into place in gaps in the interior, you do not need to drill holes or use special tools or dismantle the dashboard. Detailed mounting instructions included. The ProClip has AMPS holes for easy installation of a holder. Made of high grade ABS/Acetal plastic. Color: Black. Developed and produced in Sweden.

- Do you want to be able to switch between several holders on the same ProClip? Please see Brodit’s MultiMoveClip.

التعليمات

Please read all of the instructions and look at the pictures before attaching the ProClip.

1. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Peel off the adhesive tape cover on the ProClip.

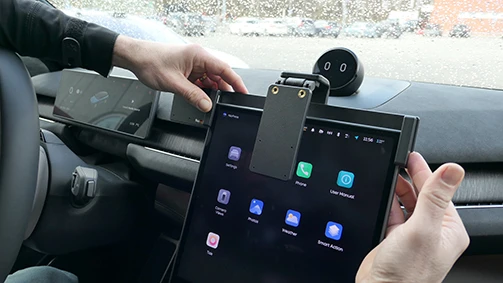

2. Press the sides out slightly on the ProClip. Place the ProClip over the screen and press down on the ProClip until the angled part of the ProClip stops against the screen.

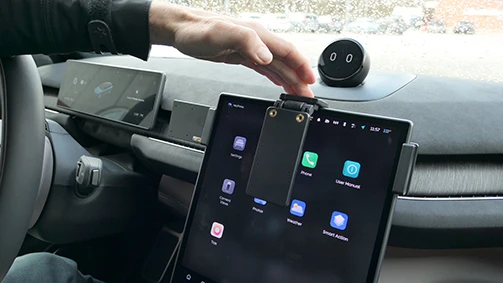

3. Squeeze the sides against the screen.

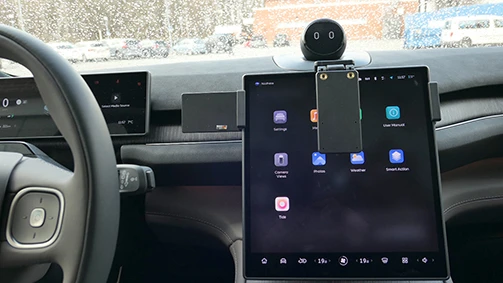

4. The ProClip is in place.

التوافق

• NIO : EL7
• NIO : ET5
• NIO : ET7
