Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

MAN TGL (TN / TM Cab) 2020-2023 (Vehicles fitted with dashboard storage tray instead of switch panel to the left of the radio / climate controls)

MAN TGM (TN / TM Cab) 2020-2023 (Vehicles fitted with dashboard storage tray instead of switch panel to the left of the radio / climate controls)

MAN TGS (TN / TM / NN Cab) 2020-2023 (Vehicles fitted with dashboard storage tray instead of switch panel to the left of the radio / climate controls)

MAN TGX 2020-2023 (GN / GM / GX Cab) (Vehicles fitted with dashboard storage tray instead of switch panel to the left of the radio / climate controls)

Important Note: This product will not fit the TGL / TGM with the (DN / CC Cab) because it has a completely different dashboard.

Vehicle identifier:

TGL / TGM with (DN / CC Cab) – 2 x Cup holders close to the vehicle floor below the hazard light switch.

TGL / TGM with (TN / TM Cab) – 2 x Cup Holders to the left of the hazard light switch

TGS with (TN / TM / NN Cab) - 2 x Cup Holders to the left of the hazard light switch

TGX with (GN / GM / GX Cab) - 2 x Cup Holders to the left of the hazard light switch

التعليمات

Please read all of the instructions and look at the pictures before attaching the ProClip. This ProClip consists of two parts:

Part 1. Attaching part. Part 2. ProClip face plate.

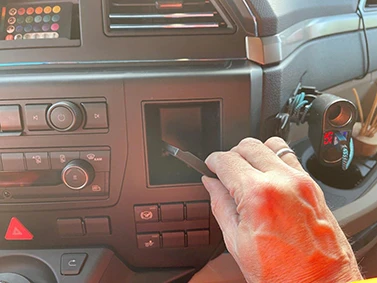

1. Remove the rubber mat in the storage compartment. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed.

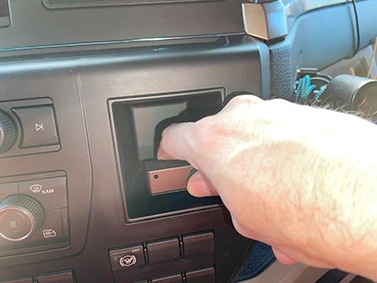

2. Remove the protective plastic on the double -sided tape strips on part 1. Place the notches on Part 1 into the three holes on the left side of the compartment.

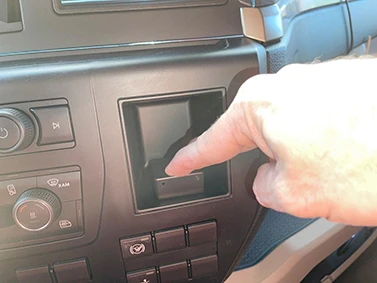

3. Press downwards so that the protruding parts go completely into the holes.

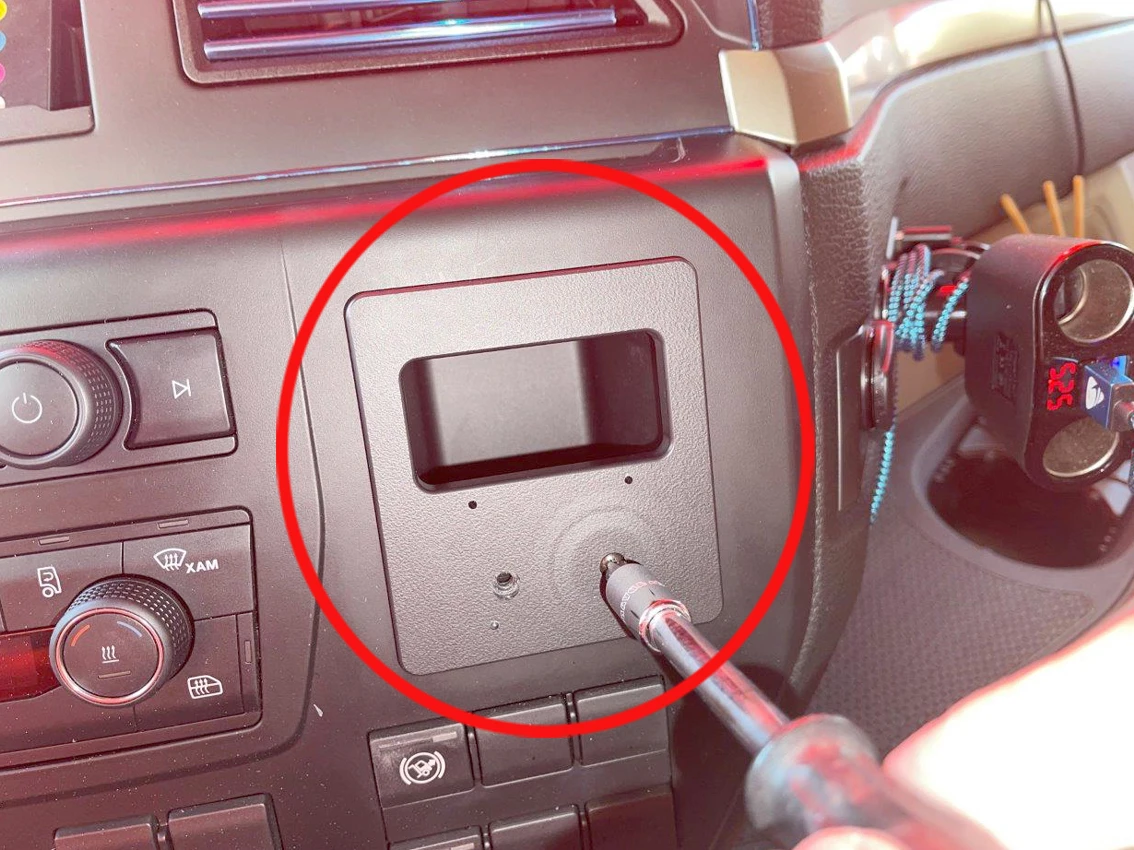

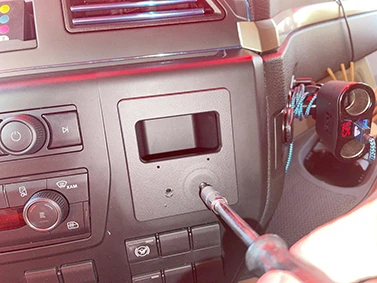

4. Pull part 1 towards you, simultaneously screw part 2 on part 1 with the screws. It is important to continue pulling part 1 throughout the time that you tighten the screws so that the protruding parts will hook firmly into the holes. The ProClip is in place.

التوافق

• MAN : TGX
• MAN : TGS
