Thabt Mounts| Complete Mounting Solutions For Any Vehicle

Pipe Mount with mounting plate

رقم الصنف : 216254

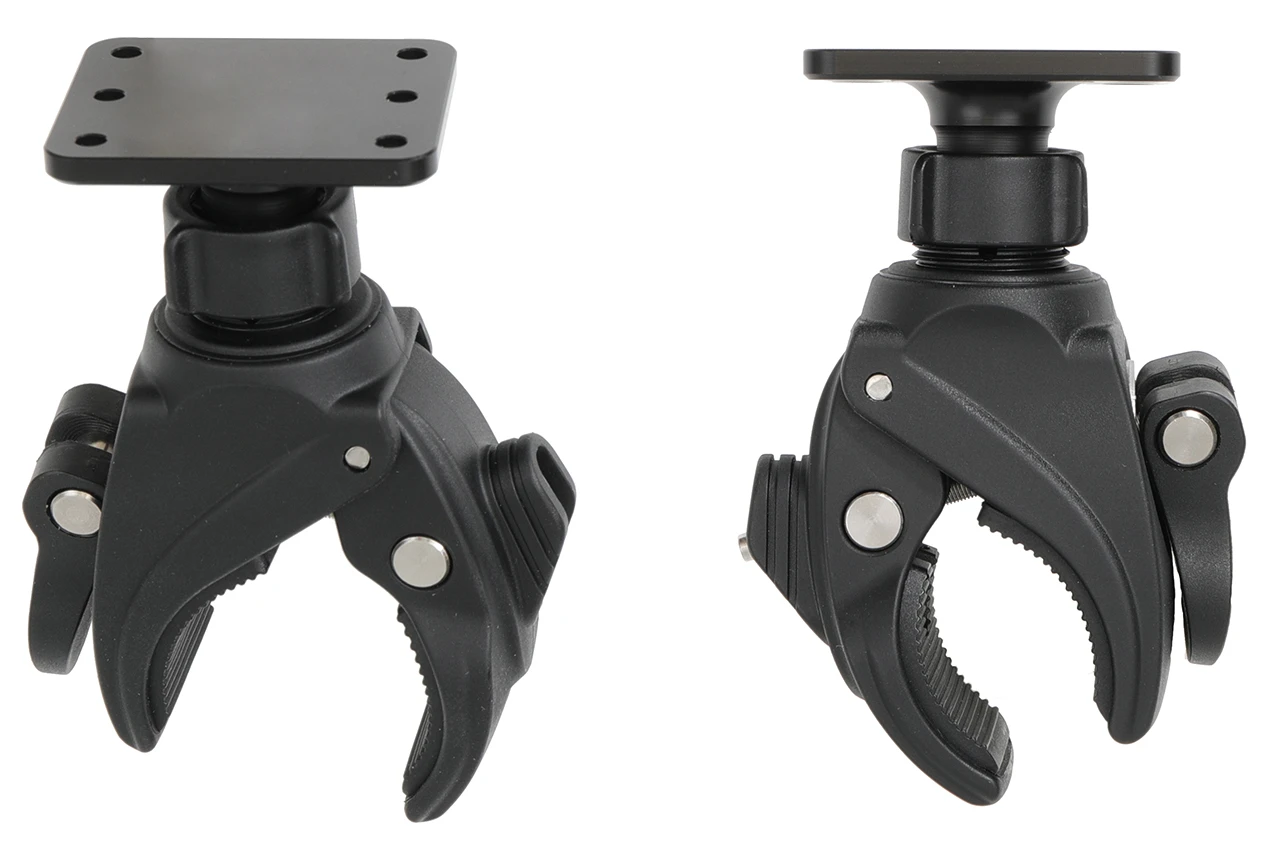

Swiveling mounting plate 50x42 mm. Fits round pipes 12-44 mm. Pre-drilled AMPS-holes.

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

Swiveling mounting plate 50x42 mm. Fits round pipes 12-44 mm. Pre-drilled AMPS-holes.

معلومات فنية

For installation of devices on pipes and rods/bars, for example most types of vehicles; motorcycles, boats, carts, stands, wheelchairs, airplanes etc. The Quick Clamp Mount with AMPS Plate is an easy way to mount a holder for easy access and removal. The mount can be attached to any pipe or round tube between 12 mm and 44 mm diameter. The quick release feature allows the mount to be easily removed when not in use.

The mounting plate can tilt 210° and rotate 360°, the mounting plate is 50x42 mm with pre-drilled AMPS-holes. Made in black plastic.

التعليمات

Please read all of the instructions and look at the pictures before attaching the product.

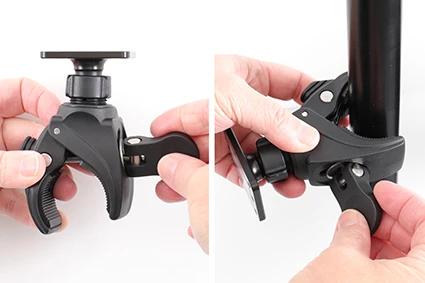

1. Open the mount by turning the quick release tab outwards. Then turn the quick release tab counterclockwise until the clamping jaws fit over the pipe.

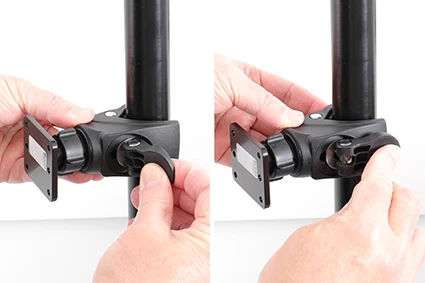

2. Turn the quick release tab clockwise until it is barely tight. Flip the quick release down to secure the clamp in place. If it is too tight; loosen the screw slightly and try again.

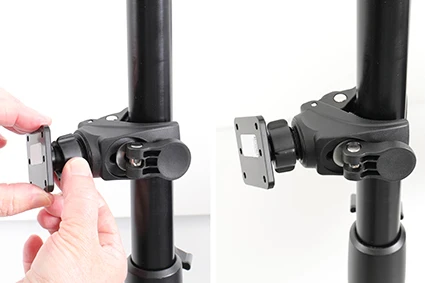

3. Adjust the mounting plate by loosening the thumbscrew and adjusting the mounting plate.

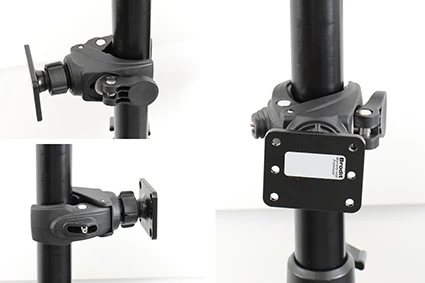

4. The pipe mount is in place.

التوافق

...
