Pipe Mount with mounting plate

رقم الصنف : 216115

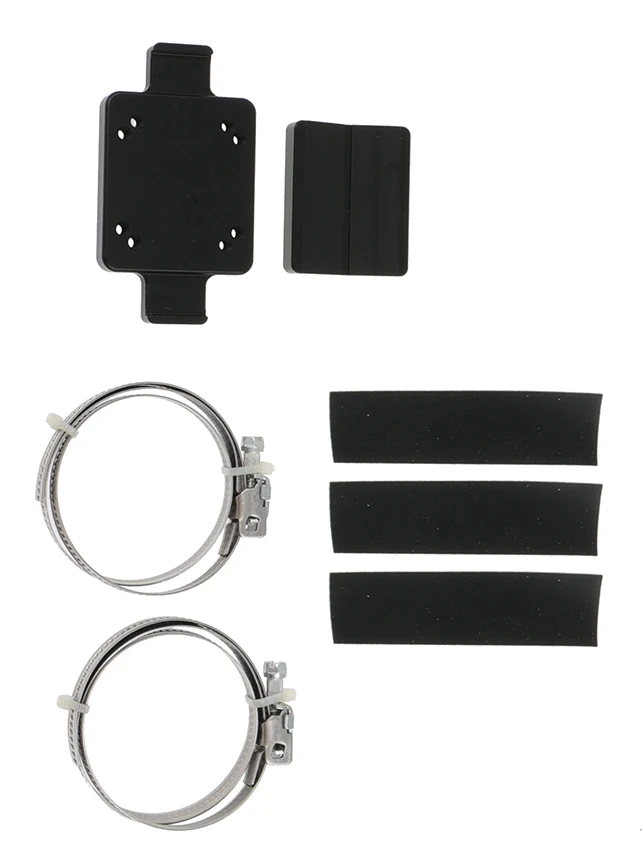

Pipe mount 1"-5", fits diameter 25,4-127 mm. Dual AMPS holes.

الكمية

إنتهى من المخزن

الوصف

Pipe mount 1"-5", fits diameter 25,4-127 mm. Dual AMPS holes.

معلومات فنية

For installation of devices on larger pipes/rods/bars, fits diameter 25,4-127 mm. With dual AMPS-holes. Made in Sweden.

التعليمات

Please read all of the instructions and look at the pictures before attaching the ProClip.

  • 1. Hold the mount in the desired position on the pipe. Peel off the covers of the rubber strips. Attach one of the rubber strips onto the pipe, in the same height as the upper part of the mount, and the other rubber strip in the same height as the lower part of the mount. Cut rubber strips in proper lengths and attach onto the smaller mount part.
  • Technical Information Illustration

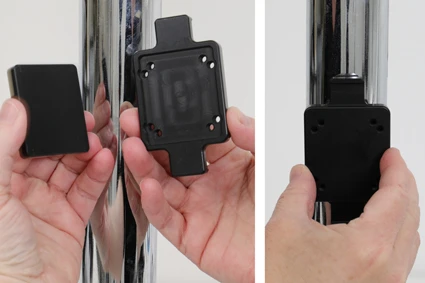

  • 2. Open the clamp mounts. Place the smaller part of the pipe mount into the larger part. Hold the pipe mount onto the pipe in the desired position, in the same height as the attached rubber strips.
  • Technical Information Illustration

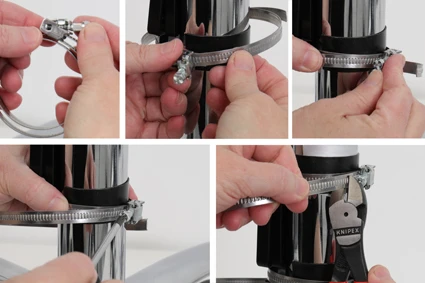

  • 3. Place one clamp mount around the pipe and the upper part of the pipe mount, in the same height as the rubber strips. Place the other clamp mount around the pipe and the lower part of the pipe mount, in the same height as the rubber strips. Tighten the screws so the pipe mount is properly in place. Cut the clamp mounts into proper length.
  • Technical Information Illustration

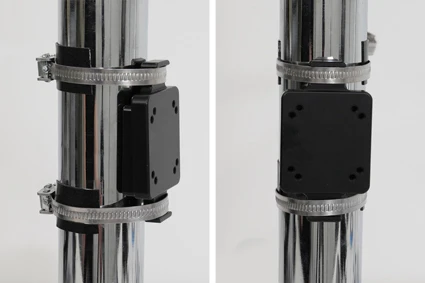

  • 4. The pipe mount is in place.
  • Technical Information Illustration
