Pedestal Mount with wingnut

رقم الصنف : 216160

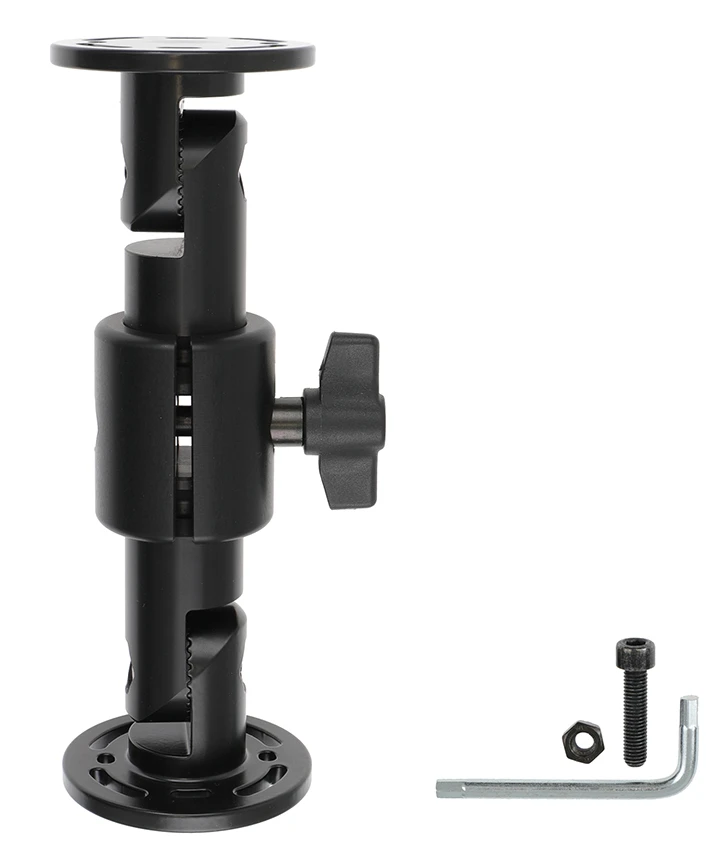

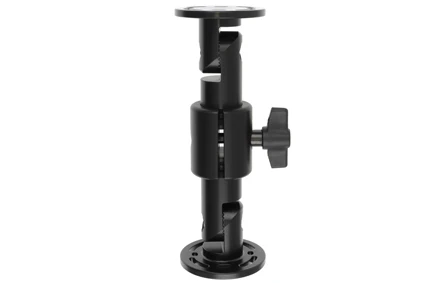

Pedestal mount 7,5" rotatable, small teeth. Total length: 188 mm. Round base and top plate, diameter 64 mm. Multiple holes for radial adjustment. Black.

الكمية

إنتهى من المخزن

الوصف

Pedestal mount 7,5" rotatable, small teeth. Total length: 188 mm. Round base and top plate, diameter 64 mm. Multiple holes for radial adjustment. Black.

معلومات فنية

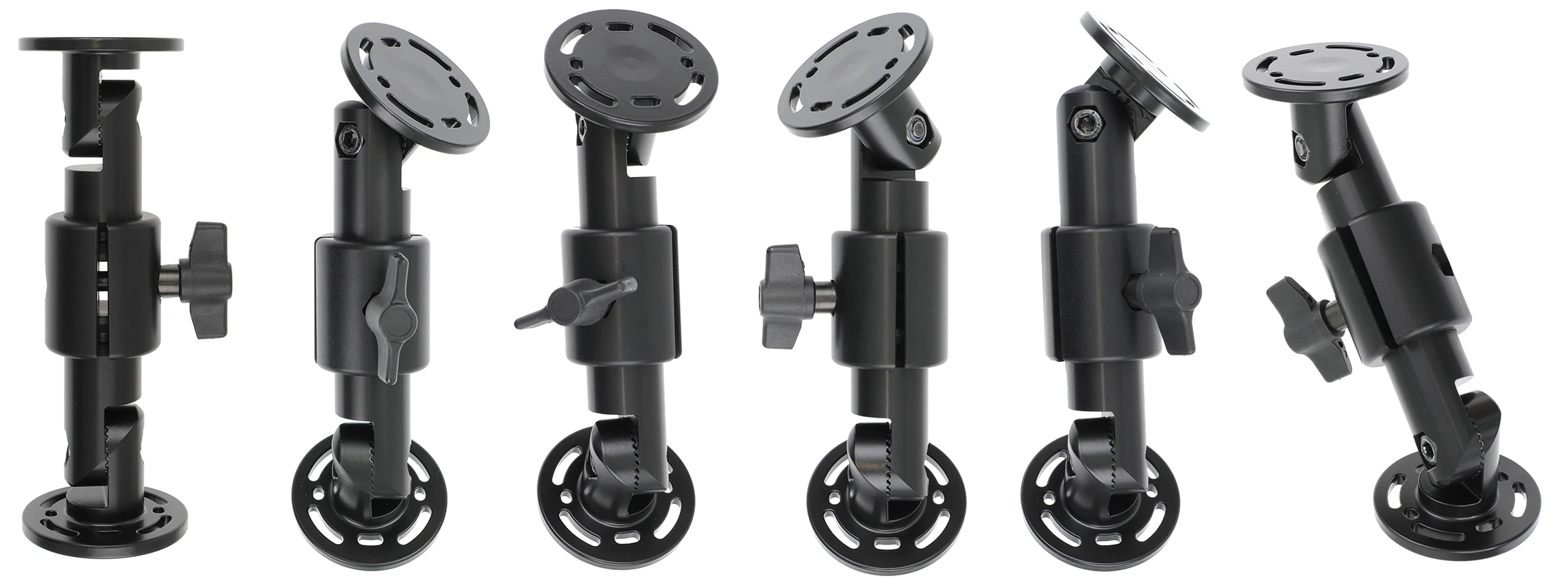

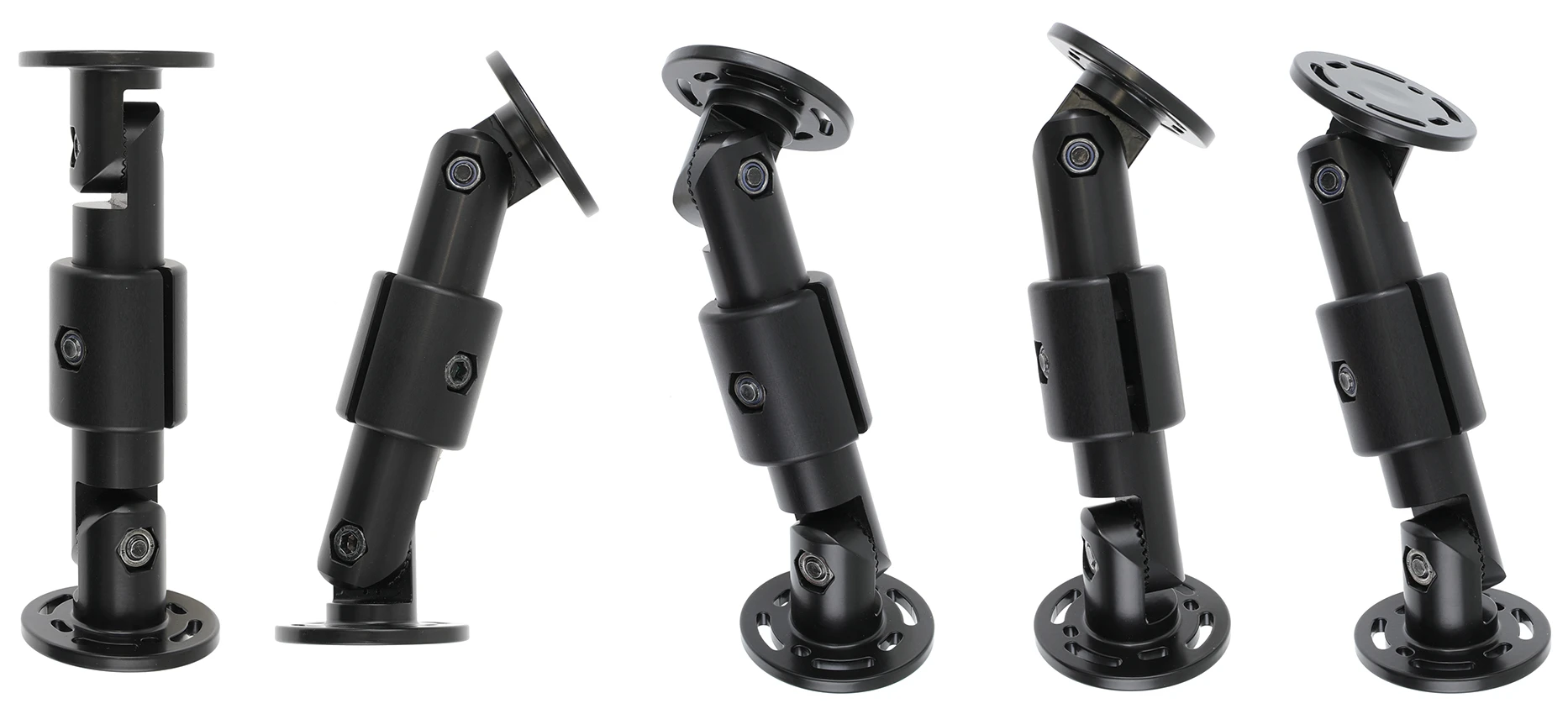

A Standard Duty Pedestal Mount for a stable installation of your device in any vehicle and on any flat surface.Easy to adjust in all angles and positions thanks to the adjustable middle part. AMPS holes, compatible with all Brodit holders with tilt swivel. Color: Black. Rod made of aluminum, wingnuts made of plastic.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

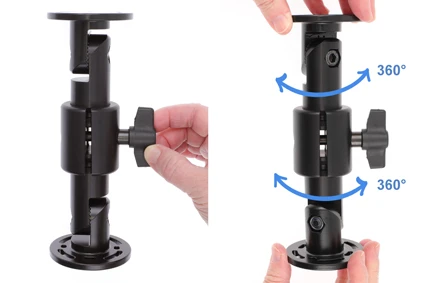

  • 1. Loosen the wingnuts and adjust the angles of the mount. Tighten the wingnuts so the its locked into the desired position.
  • Technical Information Illustration
  • 2. To adjust the mounting plate, loosen the screw, set the desired angle, tighten the screw.
  • Technical Information Illustration

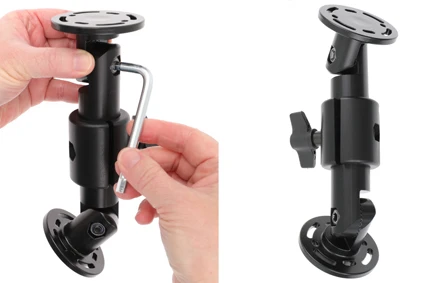

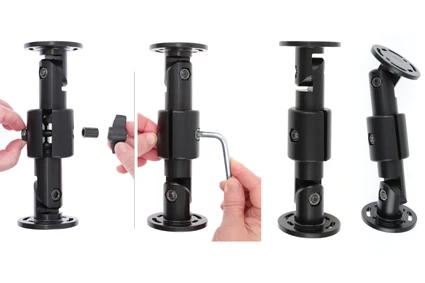

  • 3. To replace the Wing Nut: Remove the Wing Nut, insert the supplied bolt into the hole on one part and through the other part of the PM mount, place the nut and tighten it with the key provided.
  • Technical Information Illustration
  • 4. The mount is in place.
