Pedestal Mount, Parts

رقم الصنف : 216162

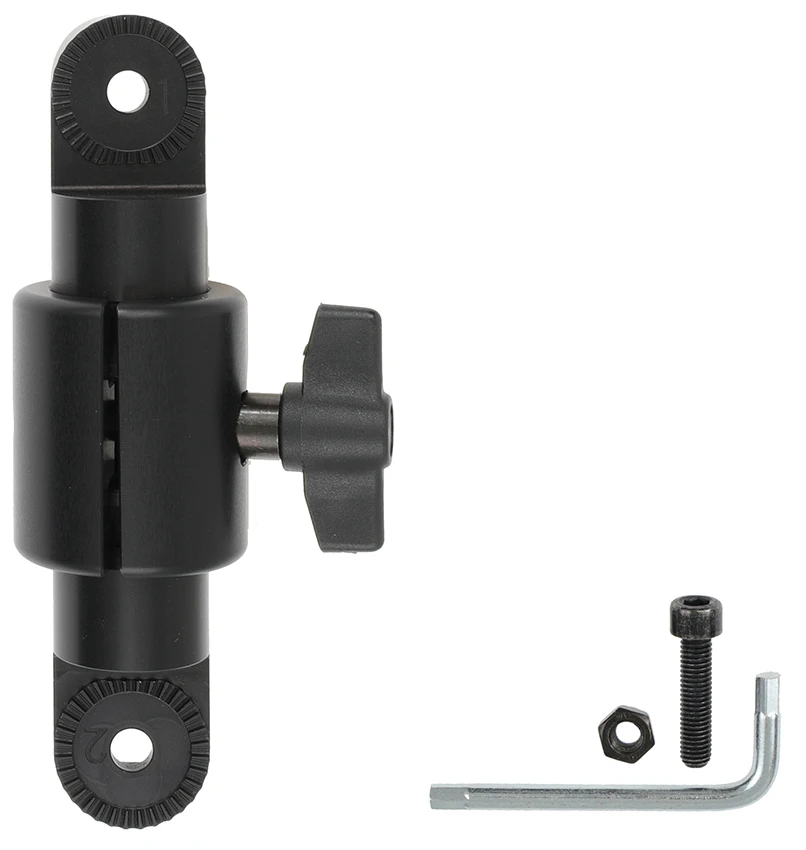

Adjustable Pedestal mount extension part 5,5" rotatable, small teeth. Total length: 156 mm. CC dimension: 152 mm. Includes 1 screw, 1 wingnut. Black.

الكمية

إنتهى من المخزن

الوصف

Adjustable Pedestal mount extension part 5,5" rotatable, small teeth. Total length: 156 mm. CC dimension: 152 mm. Includes 1 screw, 1 wingnut. Black.

معلومات فنية

Create your own design by screwing together base/top and extension parts. Easy to adjust in all angles and positions thanks to the adjustable middle part. The angle of the Pedestal Mounts can be changed as needed in steps of 11,25°, up to a maximum of 180° (16 different positions).

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

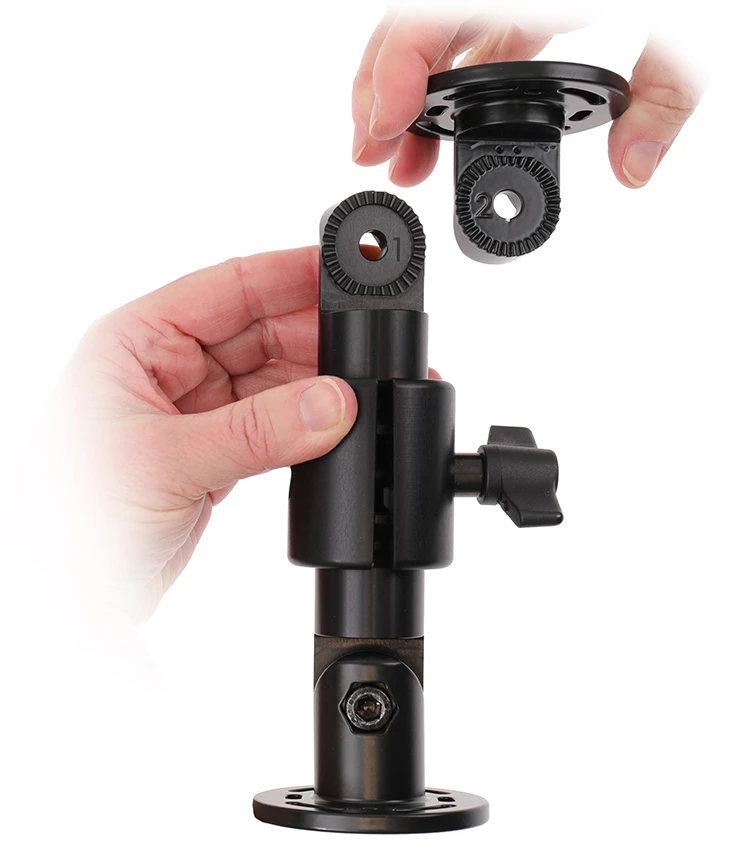

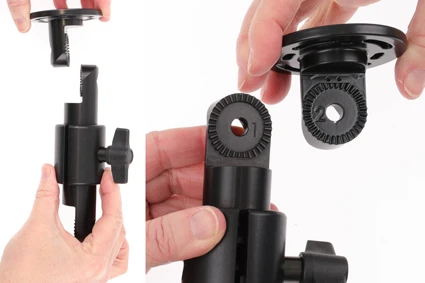

  • 1. Install the Pedestal Foot / Top with the enclosed screws, nuts. Pair them 1 to 2 to get a straight attachment.
  • Technical Information Illustration

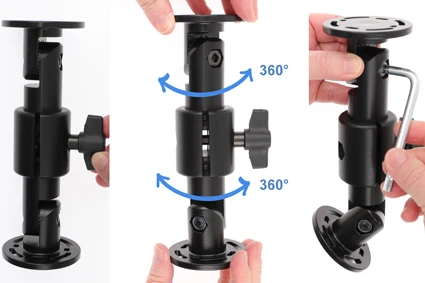

  • 2. Loosen the wingnuts and adjust the angles of the mount. Tighten the wingnuts and screws so the its locked into the desired position.
  • Technical Information Illustration

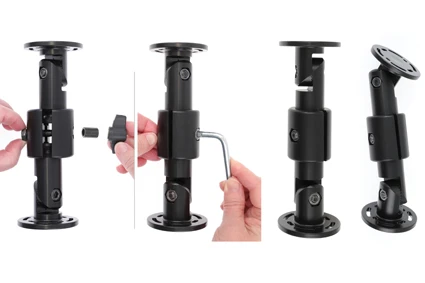

  • 3. To replace the Wing Nut: Remove the Wing Nut, insert the supplied bolt into the hole on one part and through the other part of the PM mount, place the nut and tighten it with the key provided.
  • Technical Information Illustration

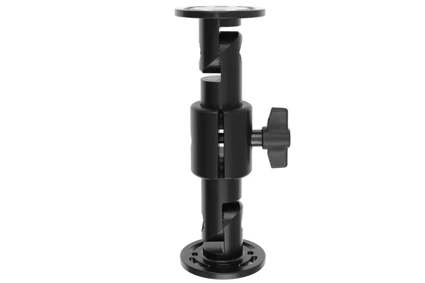

  • 4. The mount is in place.
  • Technical Information Illustration
