تفاصيل المنتج

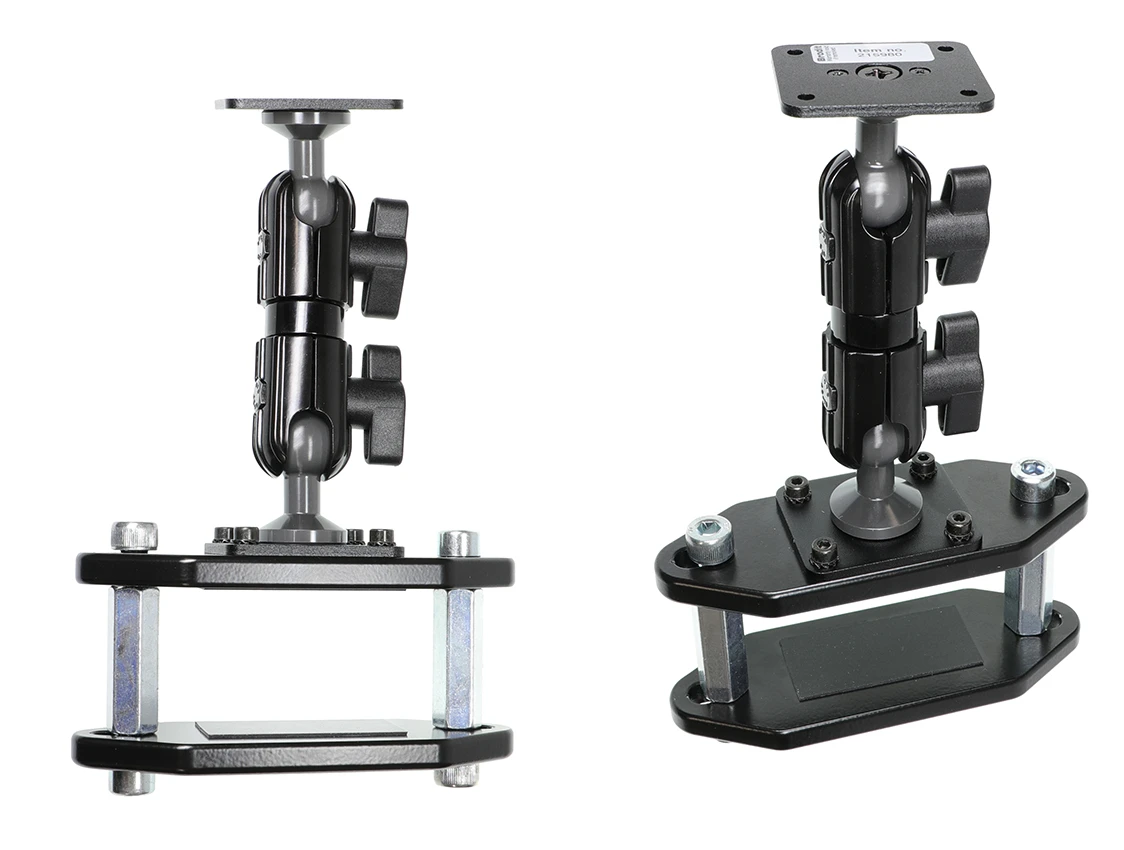

Pedestal Mount for forklift
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
Perfect for use with all types of forklifts. It will keep everything in easy sight and reach when you need it, and out of the way when you don't! Attach a device holder to the fork lift mount and you have a firm installation, all set to go. This mount can angle, tilt, swivel 360° horizontally and vertically. With wingnuts for easy adjustment.
Mounting plate 50x42 mm, with AMPS holes. Made of Aluminum/Plastic. Color: Black.
Base can be attached onto rods, poles, tubes, plates, pipes with thickness 5-130 mm and width max 97 mm.
Length: 140 mm (+9 mm back plate)
Weight: 390 g.
دليل تركيب المنتج
رقم الخطوة 1

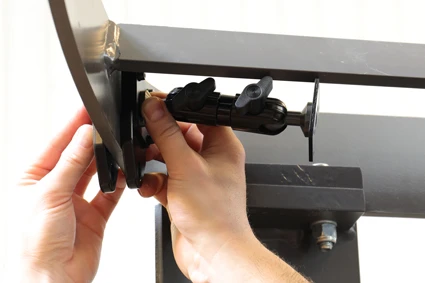

Place the mount into the desired position and choose matching bolts. For narrover frames: use two bolts with two washers and two locking nuts. For wider frames: use four bolts and two hex couplers.
رقم الخطوة 2

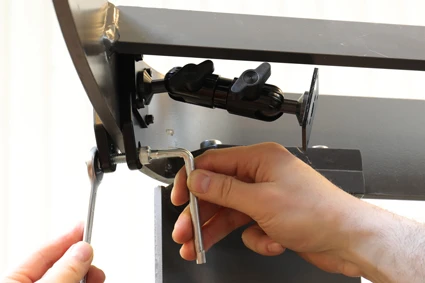

Screw the mount into place.
رقم الخطوة 3

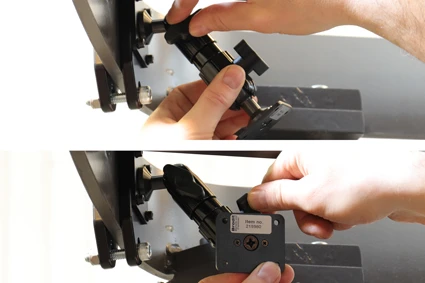

Loosen the wingnuts and adjust the angles of the mount. Tighten the wingnuts so the faceplate is locked into the desired position.
رقم الخطوة 4

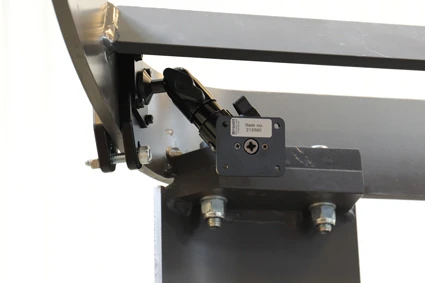

The mount is in place.
