Pedestal Mount for forklift

رقم الصنف : 215677

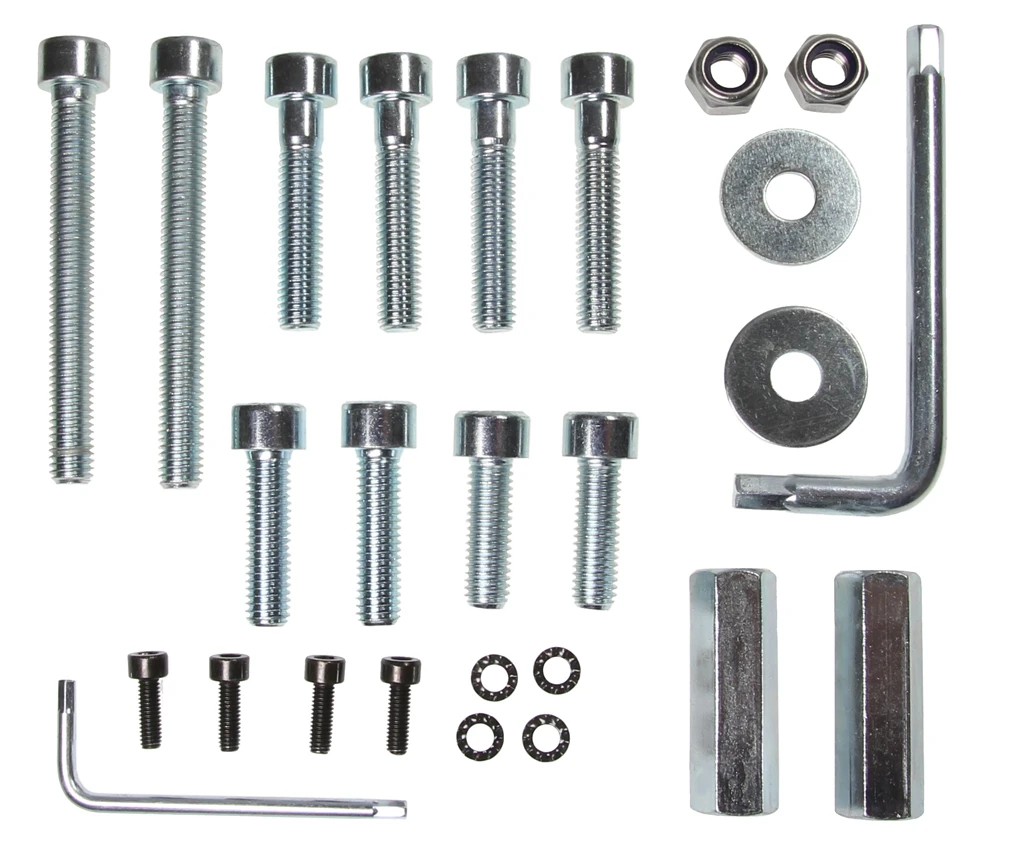

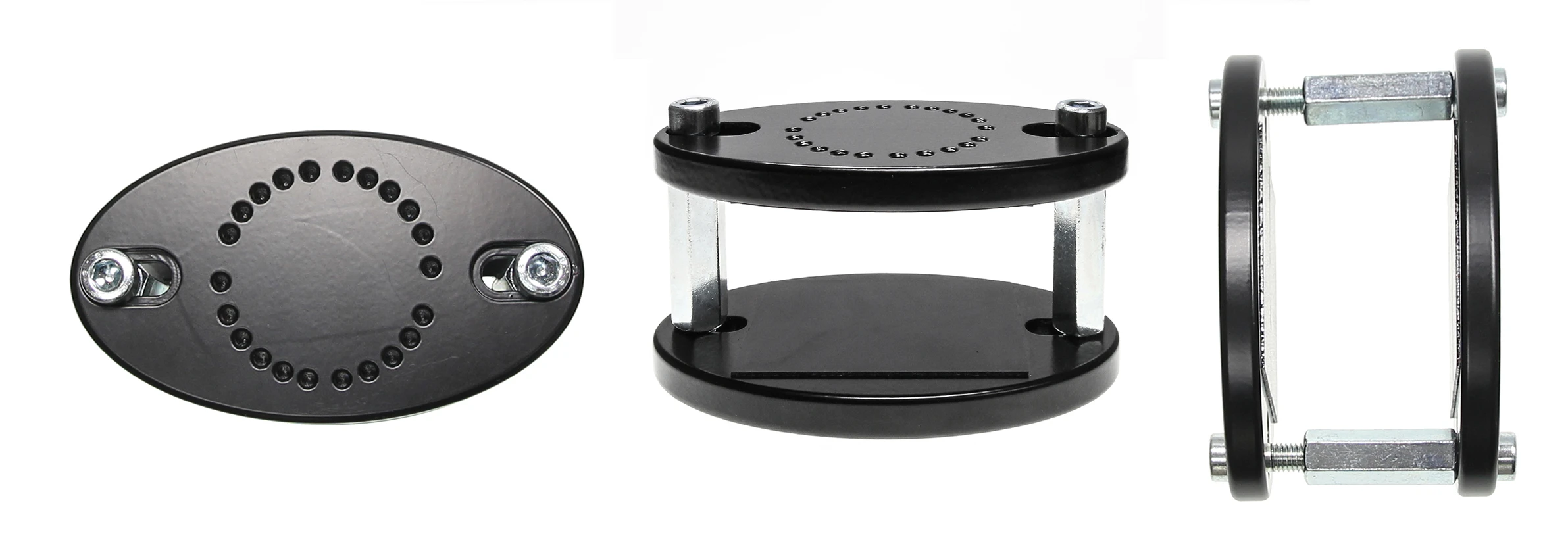

Fork lift mount. Adjustable to span between 5 mm up to 130 mm. Width between rods: 87mm. Screws in various lengths, nuts, washers and Allen keys included.

الكمية

إنتهى من المخزن

الوصف

Fork lift mount. Adjustable to span between 5 mm up to 130 mm. Width between rods: 87mm. Screws in various lengths, nuts, washers and Allen keys included.

معلومات فنية

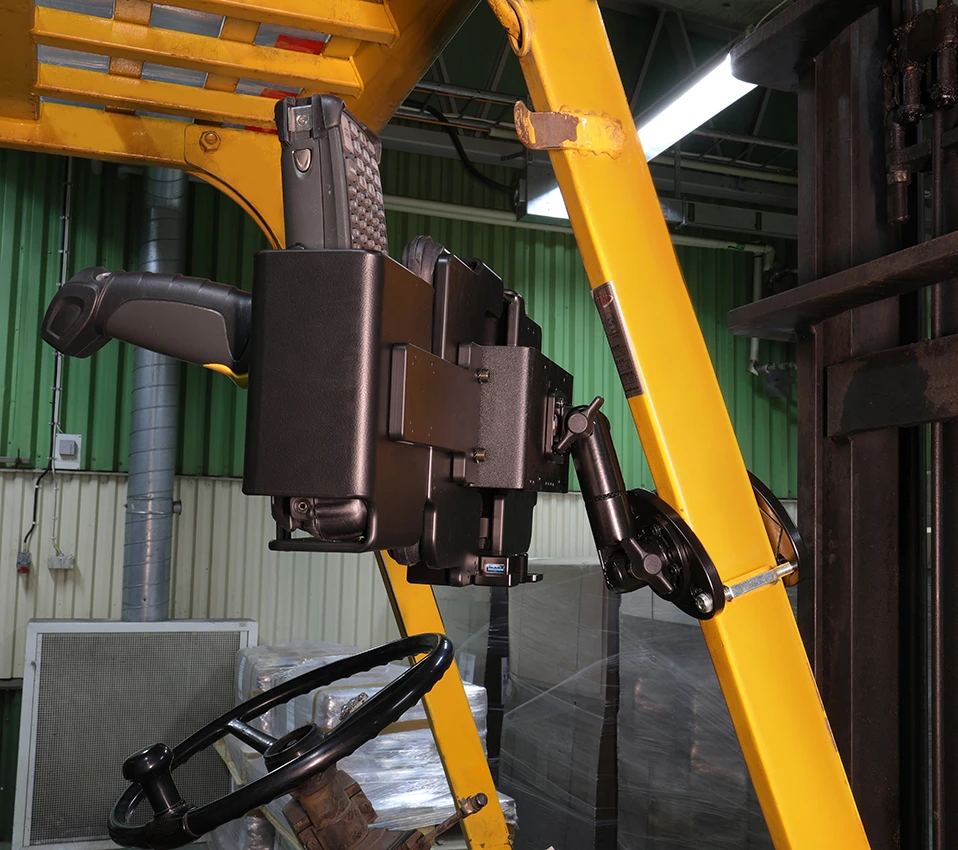

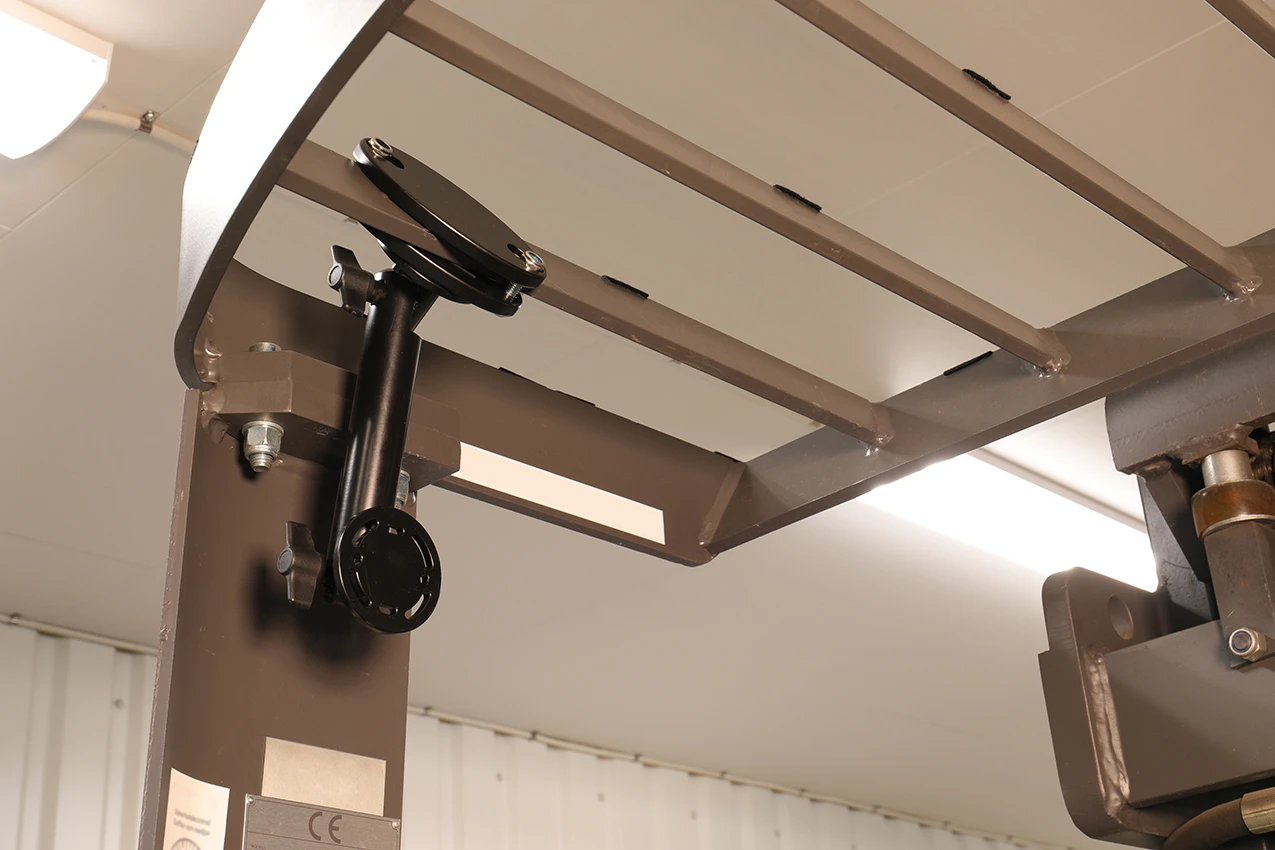

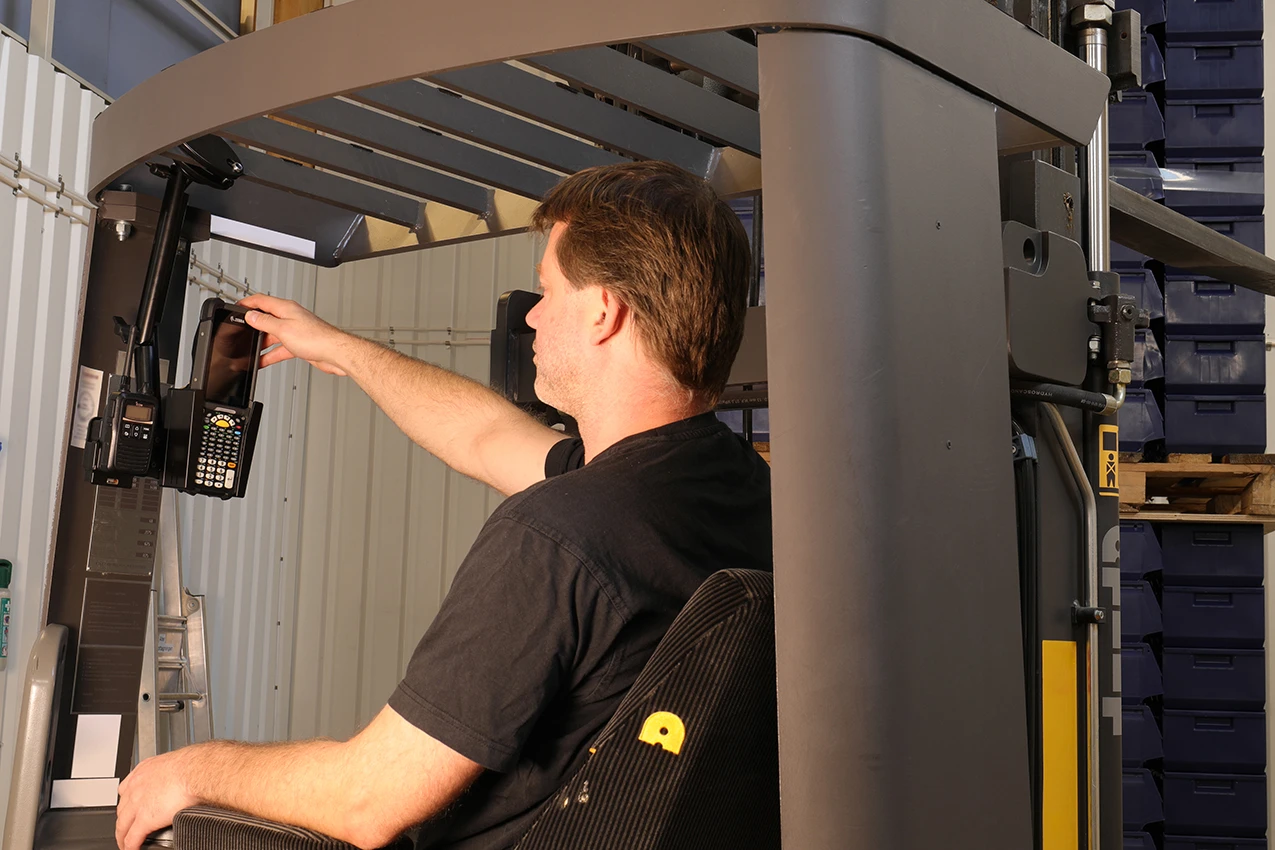

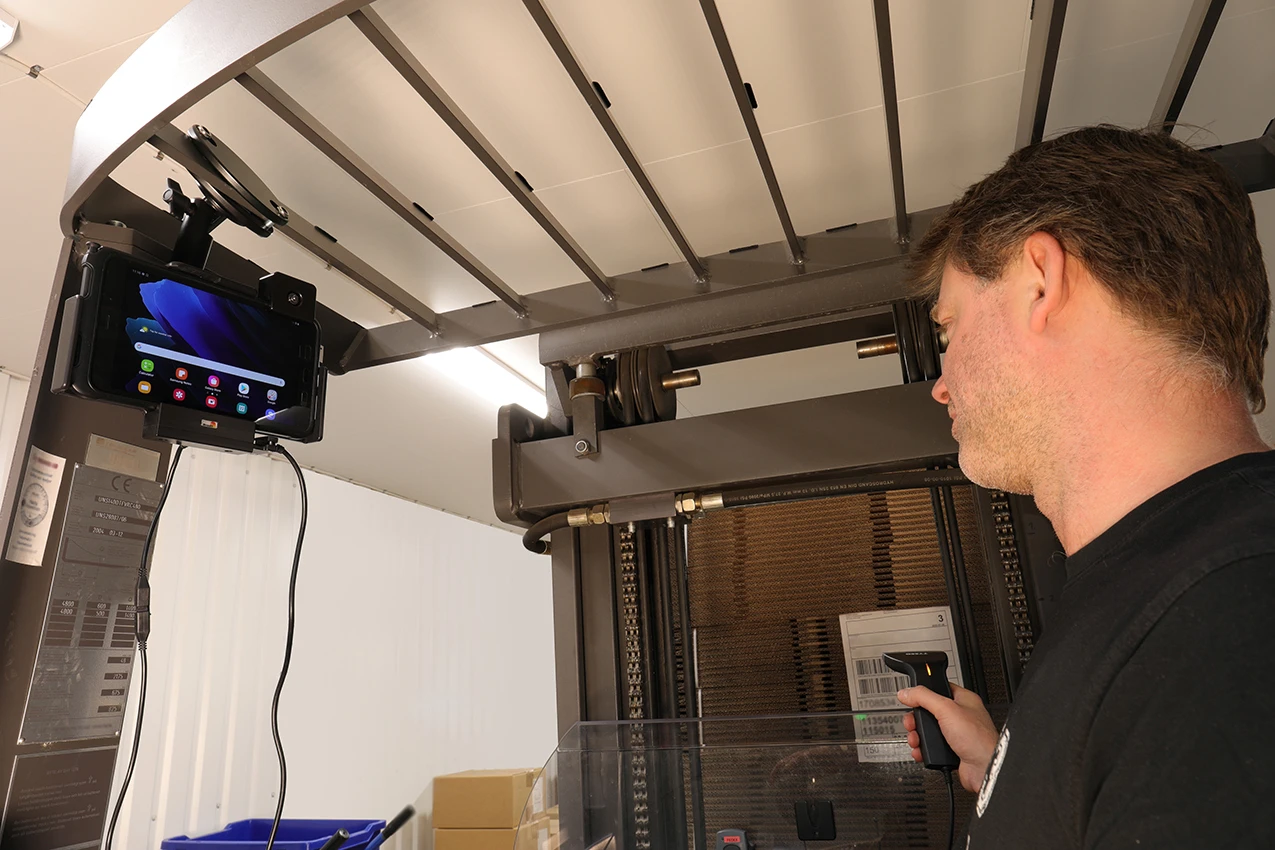

The fork lift mount can be mounted on square surfaces. Works perfect on for instance the rollbar on a fork lift. Multiple sets of AMPS holes makes the fitting of the base/top (item no. 215516) easy. Comes with complete set of screws of various sizes, allowing for the fork lift mount to span from 130mm to 5mm. Width between rods: 87mm.

  • Available in black only.

  • التعليمات

    Attention:

  • Carefully read all instructions and review the images before installing this product.
  • Technical Information Illustration

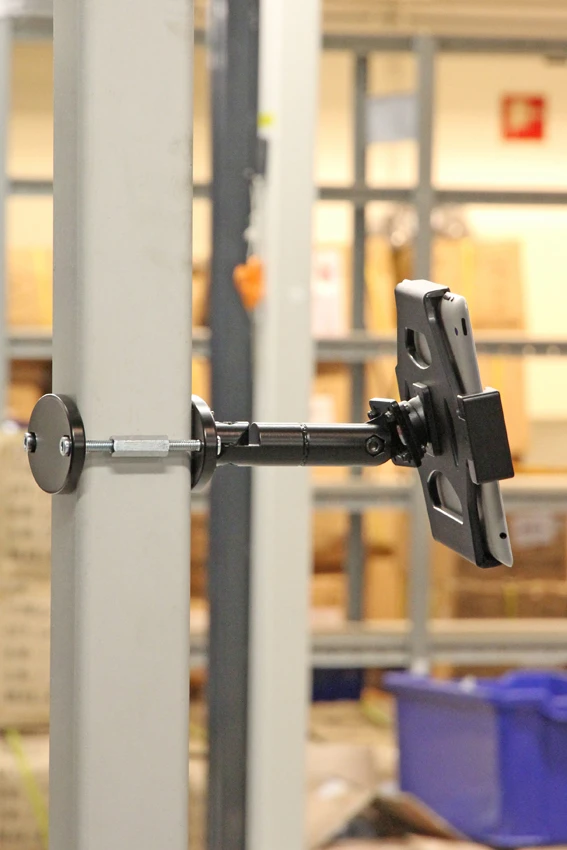

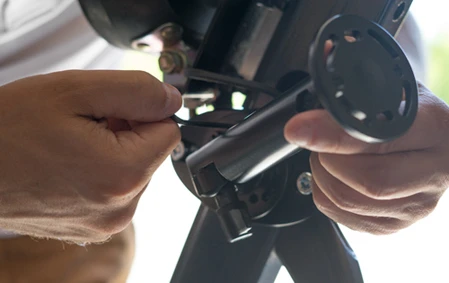

  • 1. Use the included hardware to create the desired width for the mount to
  • Technical Information Illustration

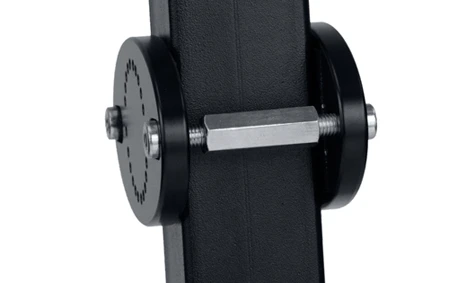

  • attach. Use four bolts and the two hex couplers for wider frames. Keeping the
  • Technical Information Illustration
  • two plates parallel, tighten one side and then the other as you fasten the mount
  • Technical Information Illustration
  • onto the frame.
  • Technical Information Illustration

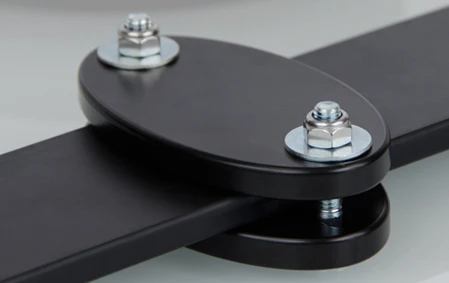

  • 2. Use two bolts with the washers and locking nuts for narrower frames.
  • Technical Information Illustration
  • 3. Use the included machine screws and locking washers to attach a pedestal
  • Technical Information Illustration
  • base to the mount. (Pedestal sold separately)
  • Technical Information Illustration

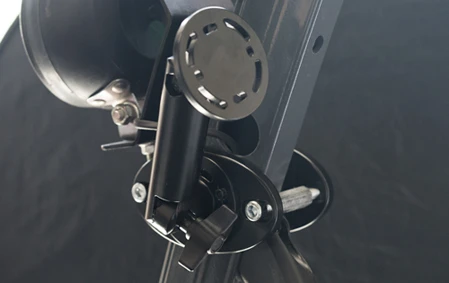

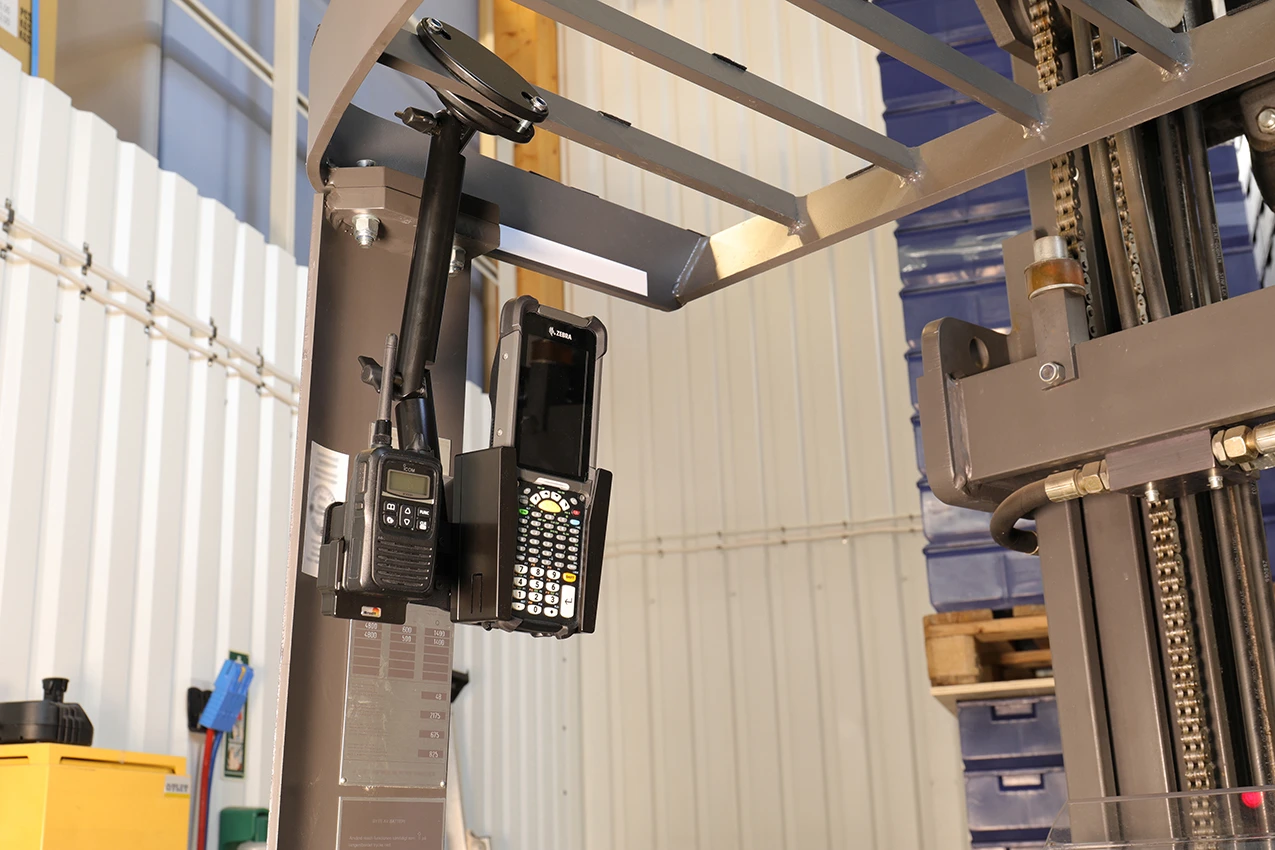

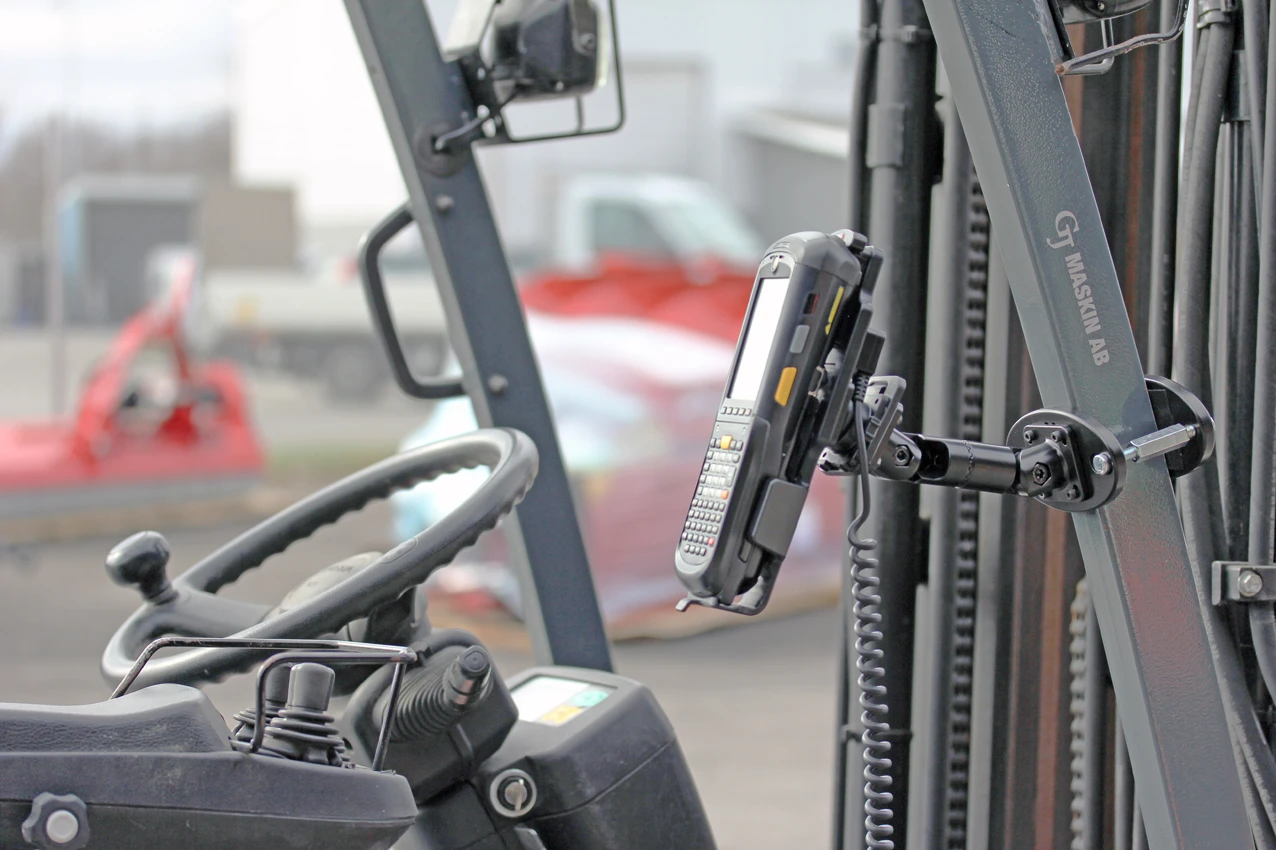

  • 4. The mount in place with pedestal attached. (Pedestal sold separately)
  • Technical Information Illustration
