Pedestal Mount, Accessories

رقم الصنف : 215676

Wingnut for Pedestal Mount. With distance plate for mount on e.g. Suction Cup Mount with AMPS-holes.

الكمية

إنتهى من المخزن

الوصف

Wingnut for Pedestal Mount. With distance plate for mount on e.g. Suction Cup Mount with AMPS-holes.

التعليمات

Please read all of the instructions and look at the pictures before installing the wingnuts.

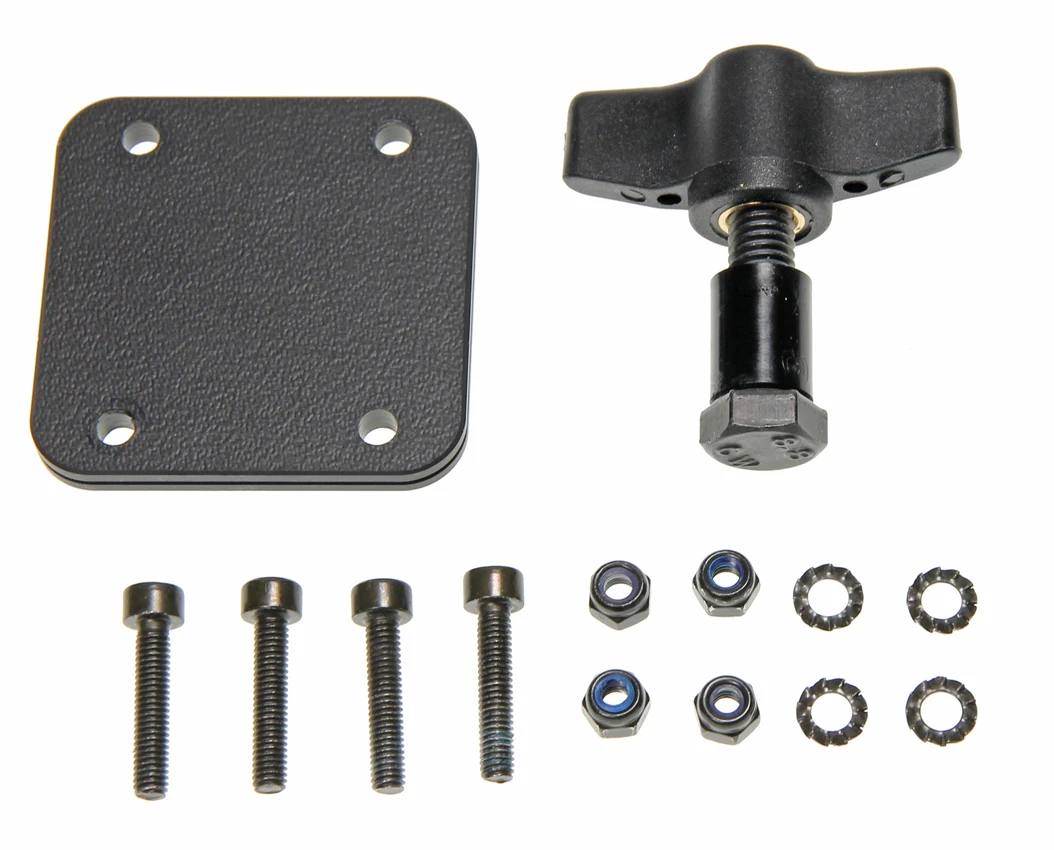

  • This accessory consists of: distance plate, four screws with nuts and washers, bolt, distance tube made of plastic, and wing nut.
  • Technical Information Illustration

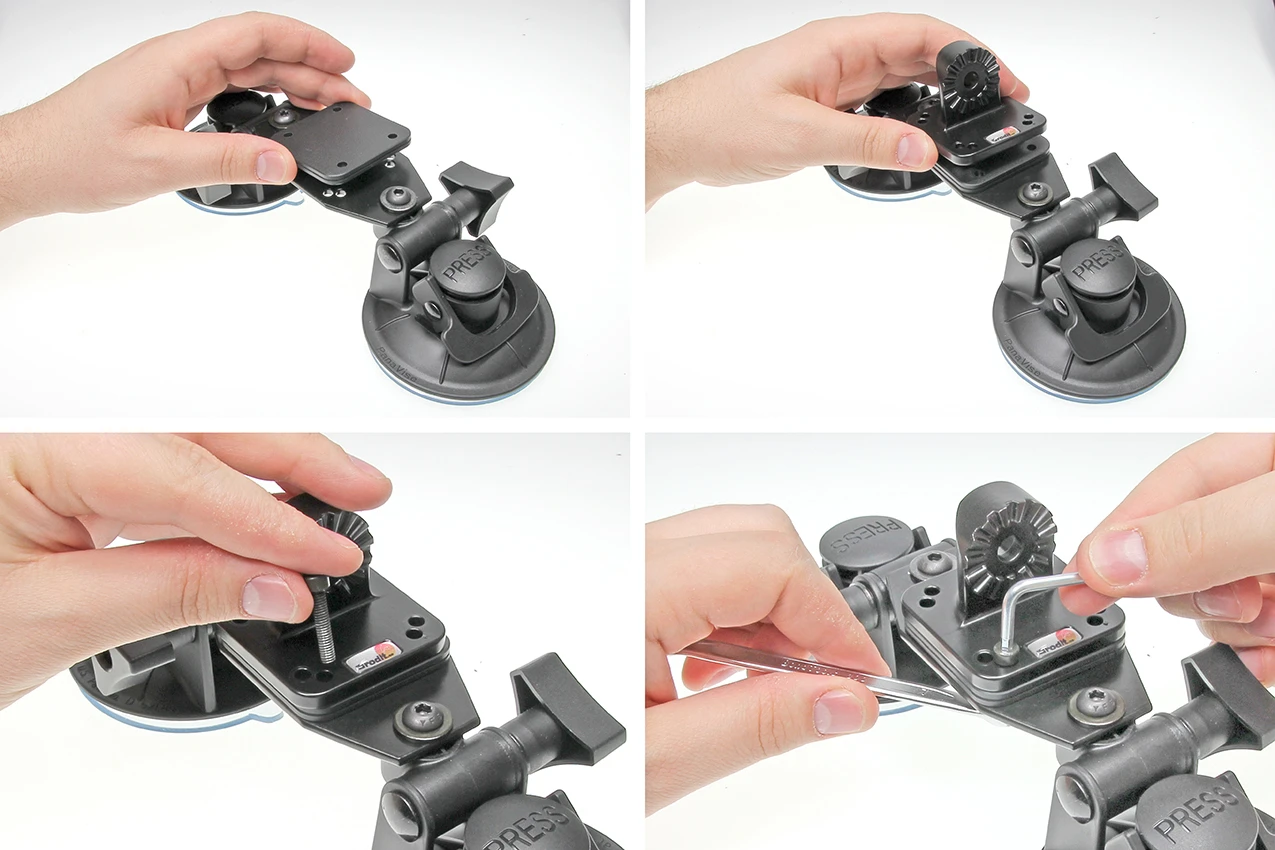

  • 1. Place the distanceplate onto desired position. Place the bottom part of the Pedestal Mount onto the distance plate. Fasten using the enclosed screws, nuts and washers.
  • Technical Information Illustration

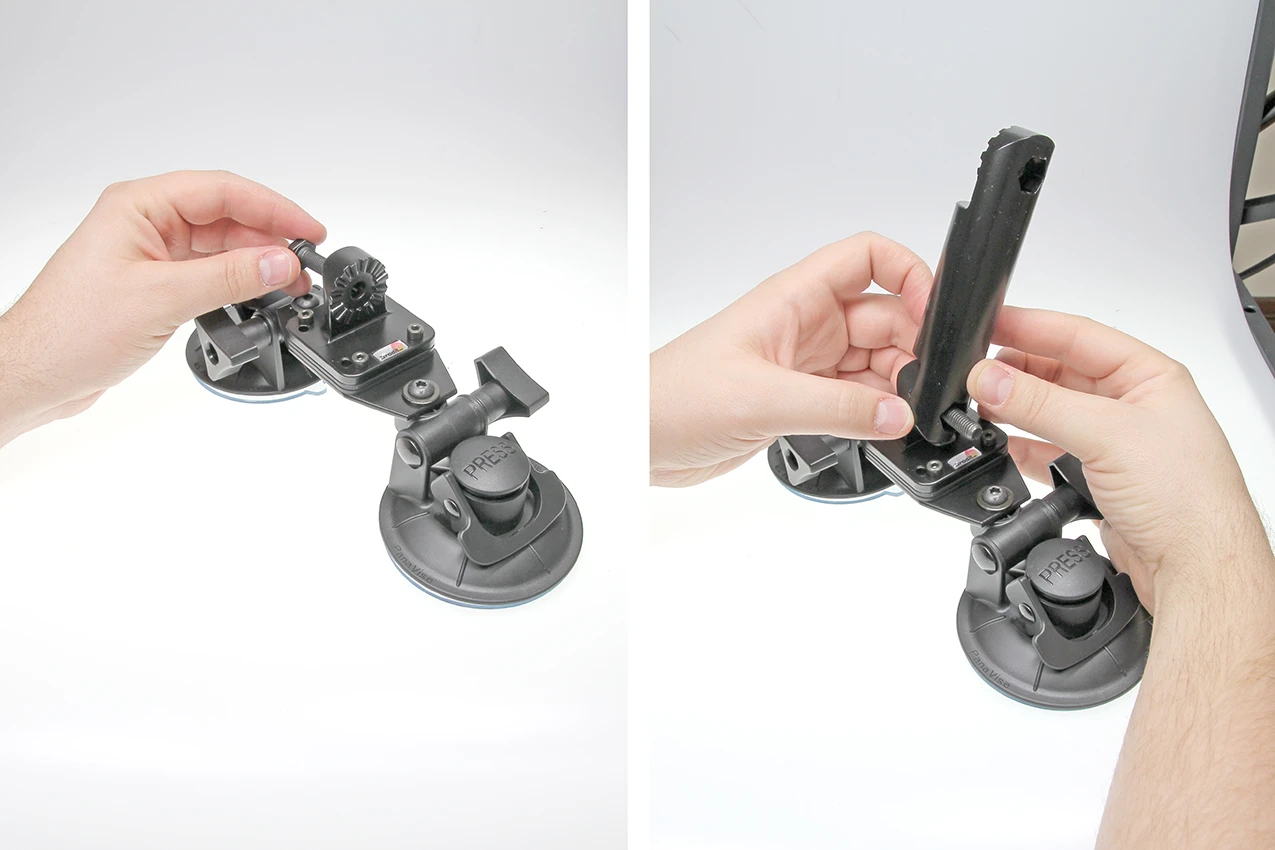

  • 2. Insert thebolt into the hole of of the Pedestal Mount. Thread the next part of the Pedestal Mount onto the bolt.
  • Technical Information Illustration

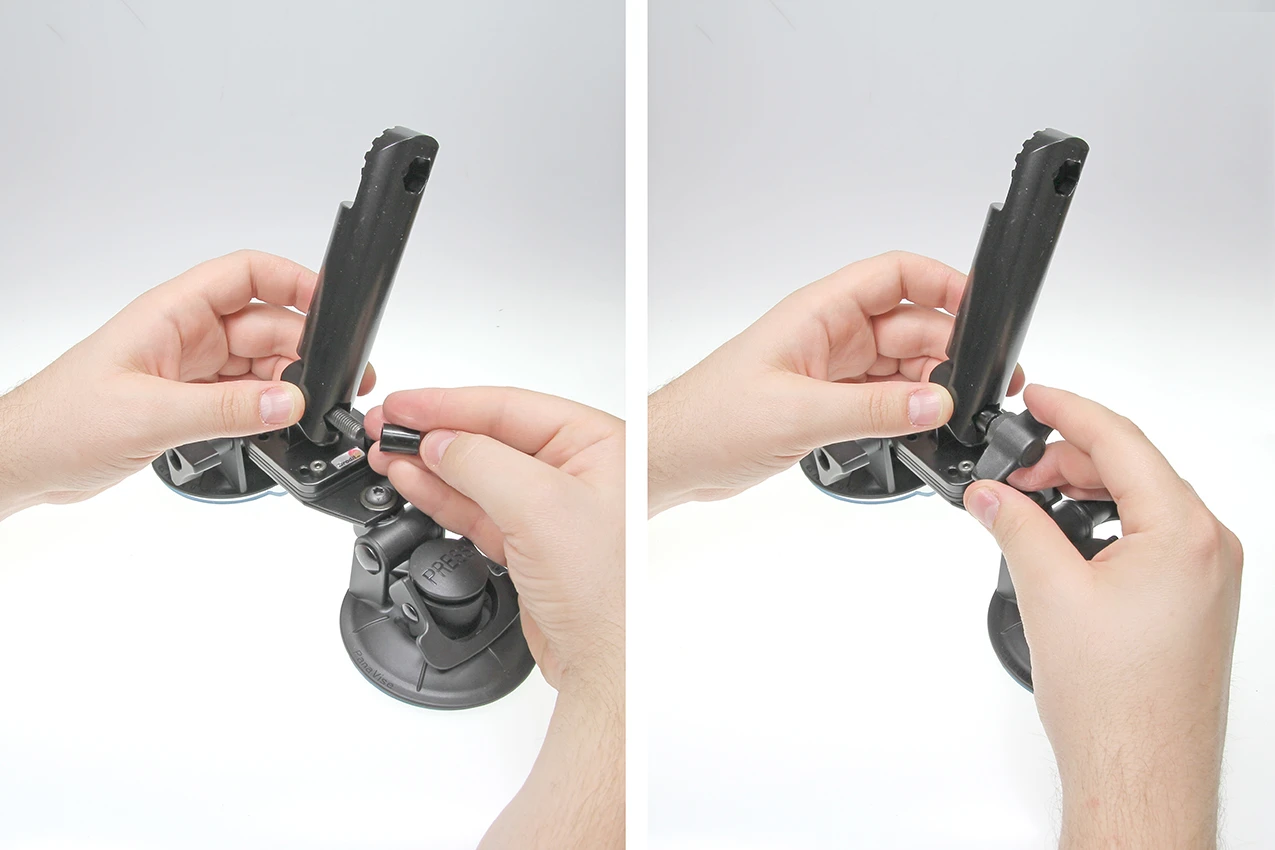

  • 3. Thread the distance tube onto the bolt. Lock the position of the Pedestal Mount using the wingnut.
  • Technical Information Illustration

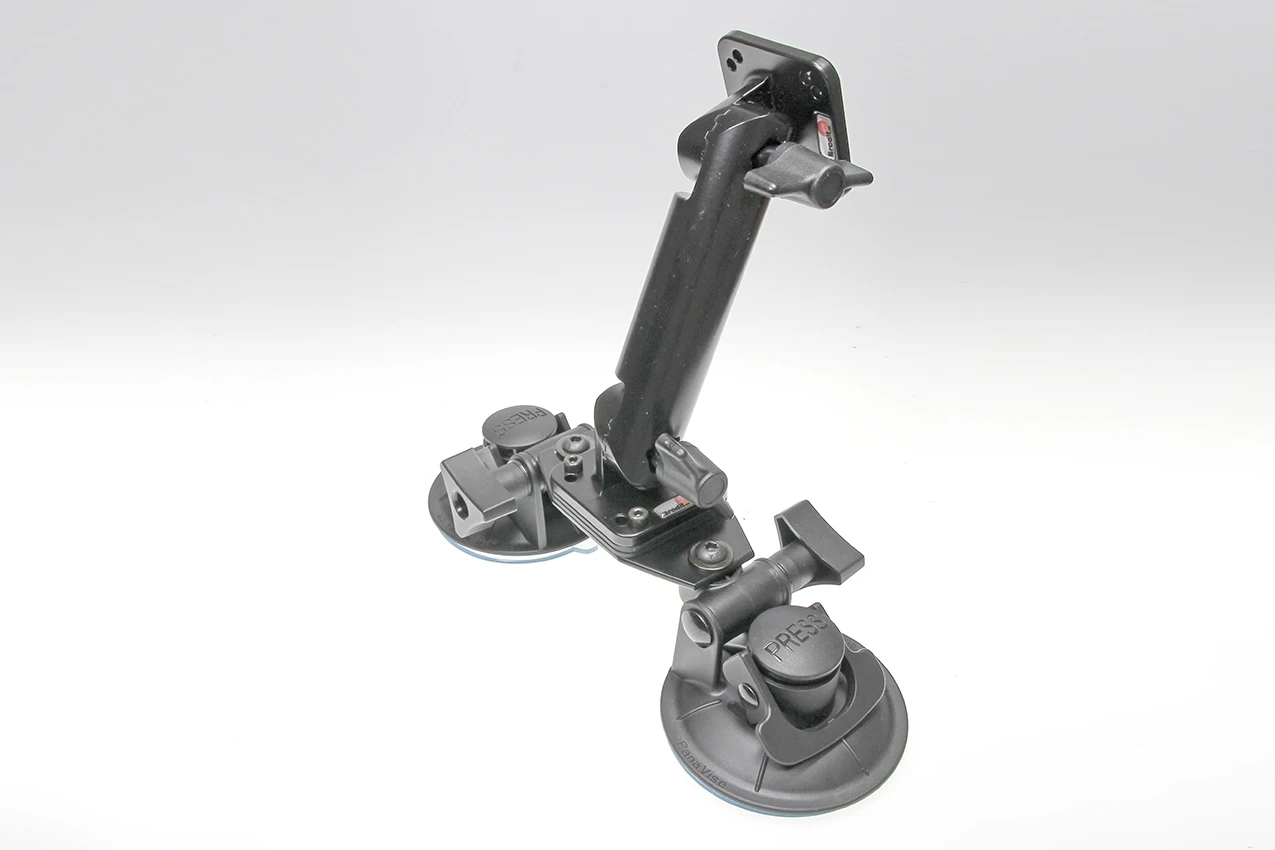

  • 4. Example mounting solution showing.
