Passive holder with tilt swivel
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

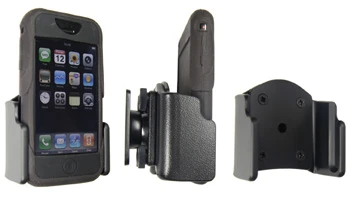

With your iPhone in a holder attached onto the dashboard it is always within easy reach -safe and convenient. The holder is mounted onto a tilt swivel so it is adjustable for avoiding light reflection on the screen. It is easy to put the iPhone in the holder, and to take it out of the holder. Attach onto a ProClip Mounting Platform.
دليل تركيب المنتج
رقم الخطوة 1

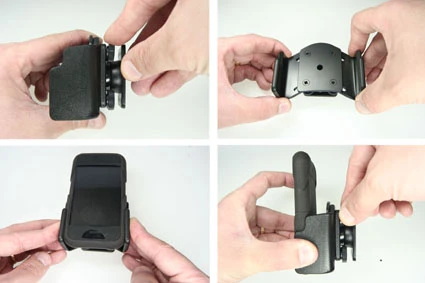

To adjust the holder to your unit: Loosen the screws on the back side of the holder, so the sides of the holders can be adjusted. Place the unit in the holder and press the sides together so the unit is firmly in place. Screw on the screws on the back side of the holder.
رقم الخطوة 2

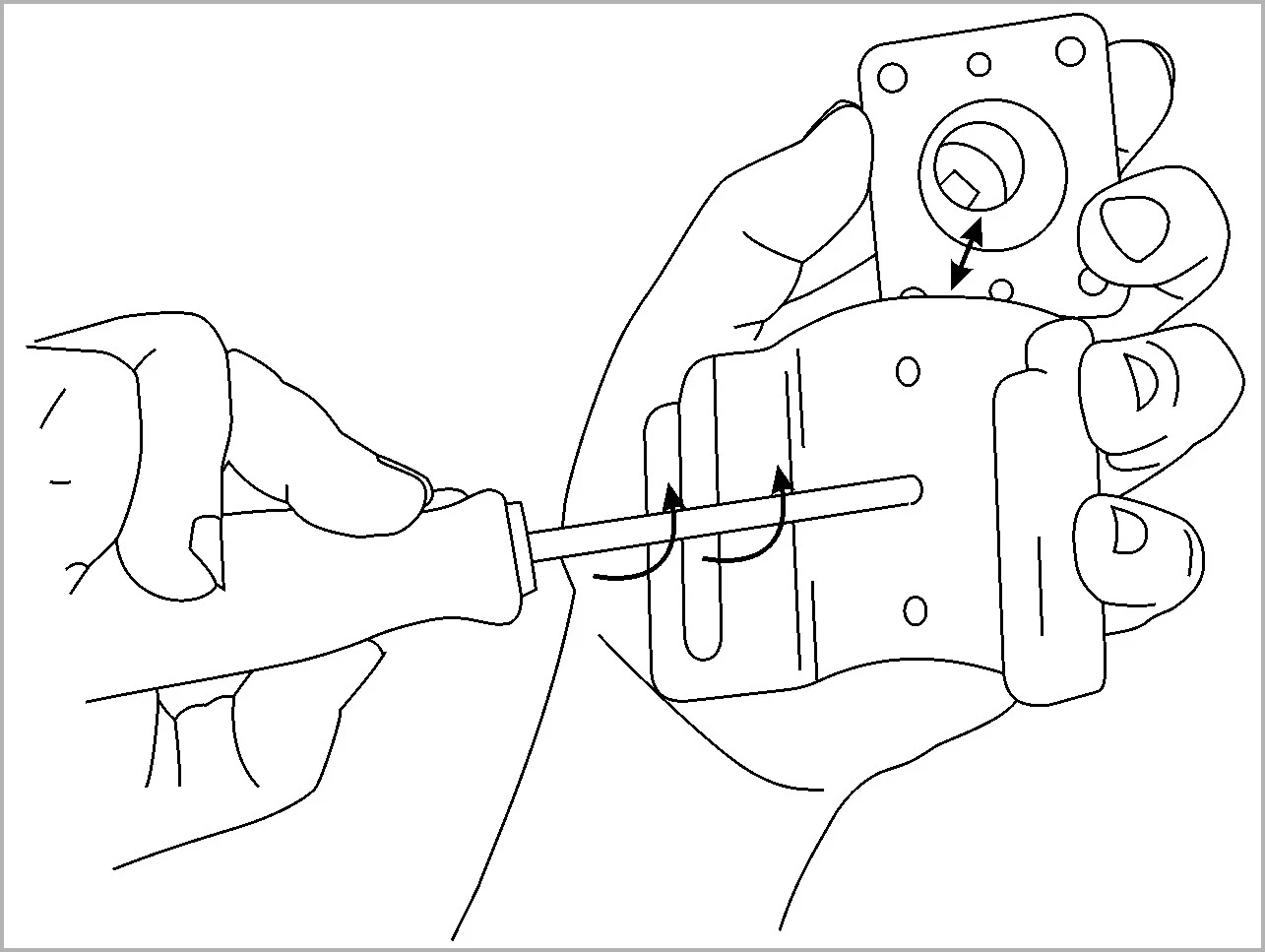

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 3

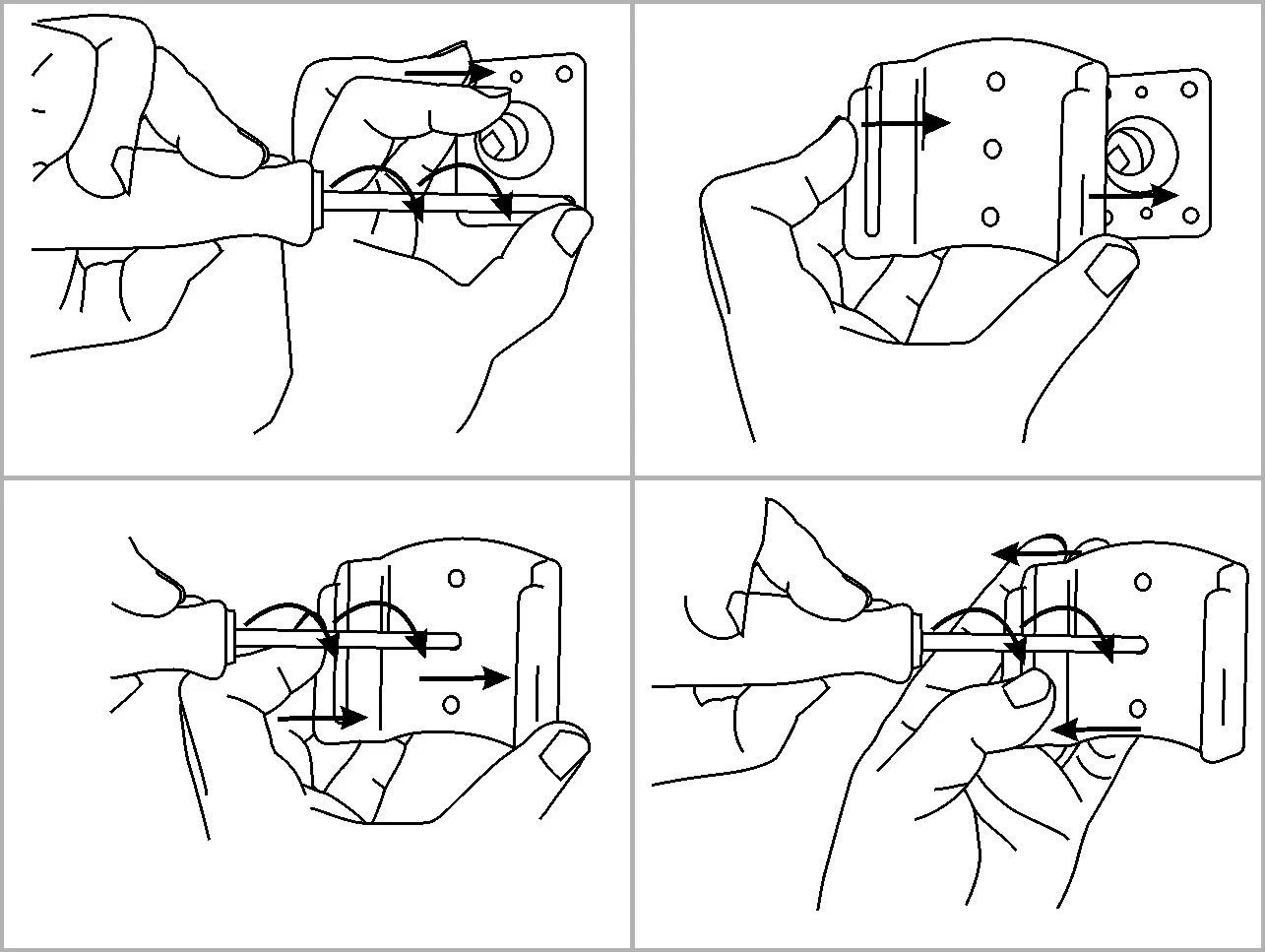

Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Screw a few turns on the screw, just so the thread starts to pull. Pull the holder toward you and hold it slightly tensed, in the same time tighten the screw so the holder is pulled toward the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.
رقم الخطوة 4

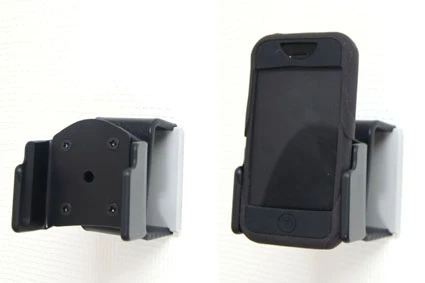

The holder is in place.
