Passive holder with tilt swivel

رقم الصنف : 711452

For device with boot and pistolgrip.

Zebra TC58e

Zebra TC58

more...

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

For device with boot and pistolgrip.

معلومات فنية

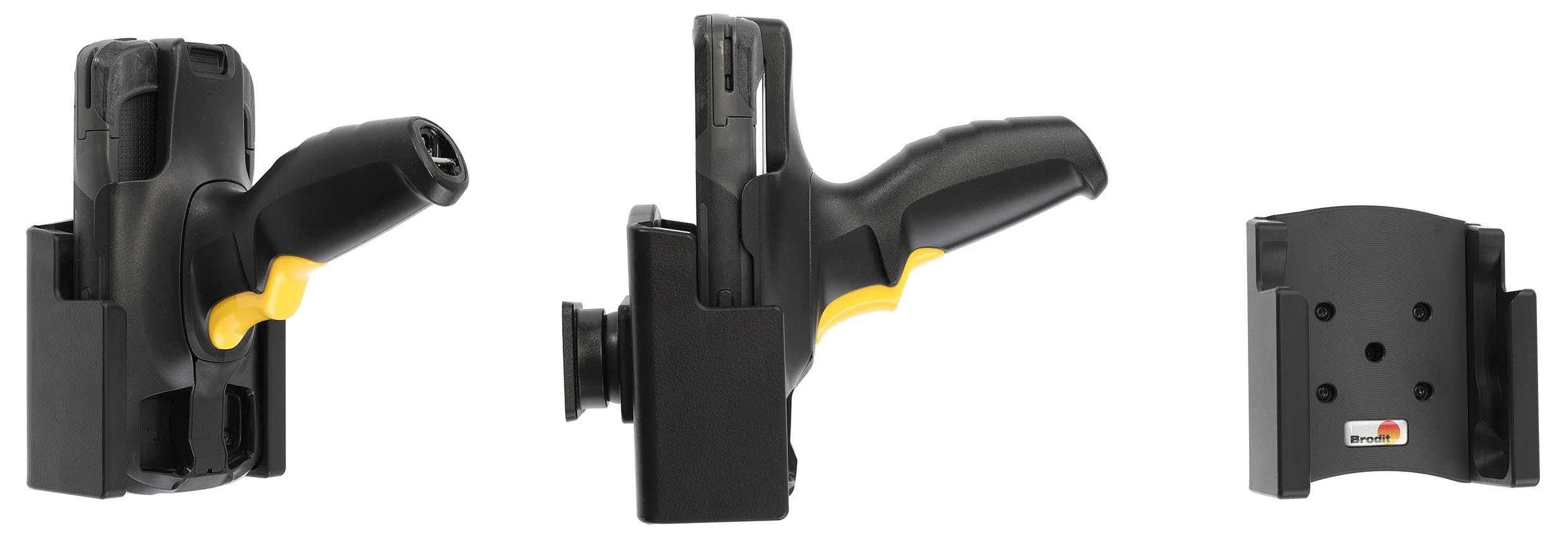

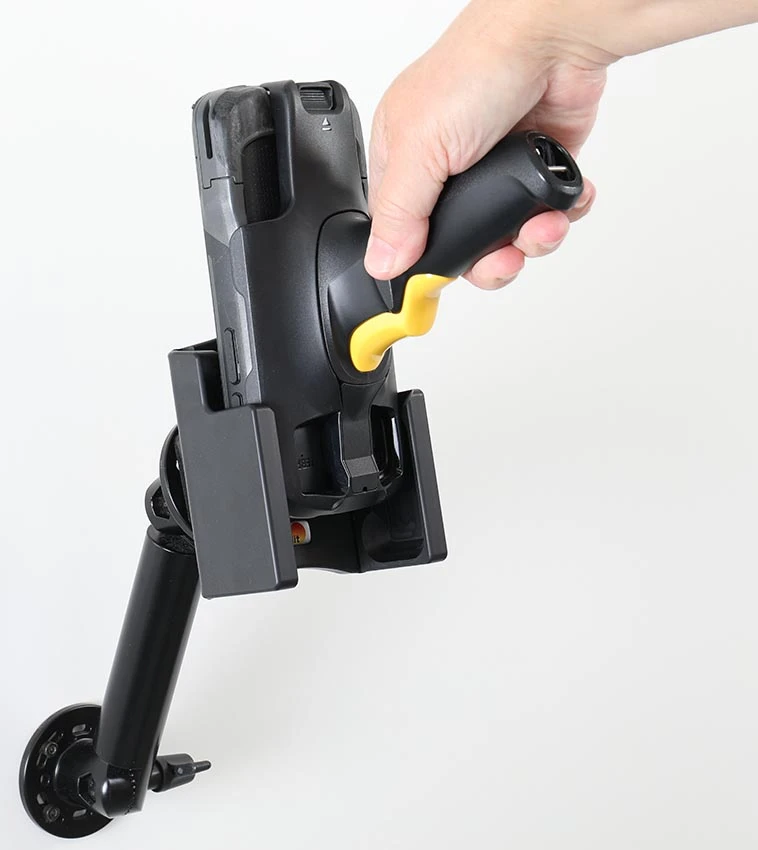

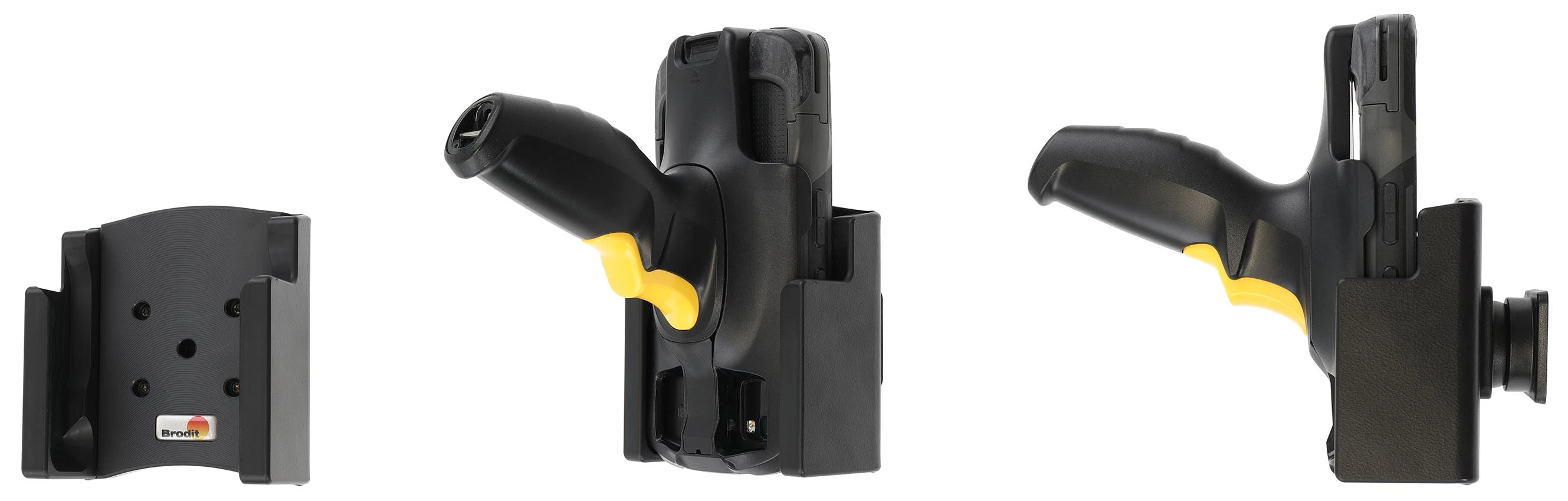

Keep your Zebra device in a holder within easy reach all work day! Neat, discreet and convenient! Custom made design with a perfect, firm fit for device with boot and pistolgrip. The holder accomodates the device face in. This enables for easy docking/undocking of your device with one hand, holding the standard pistol grip hold.

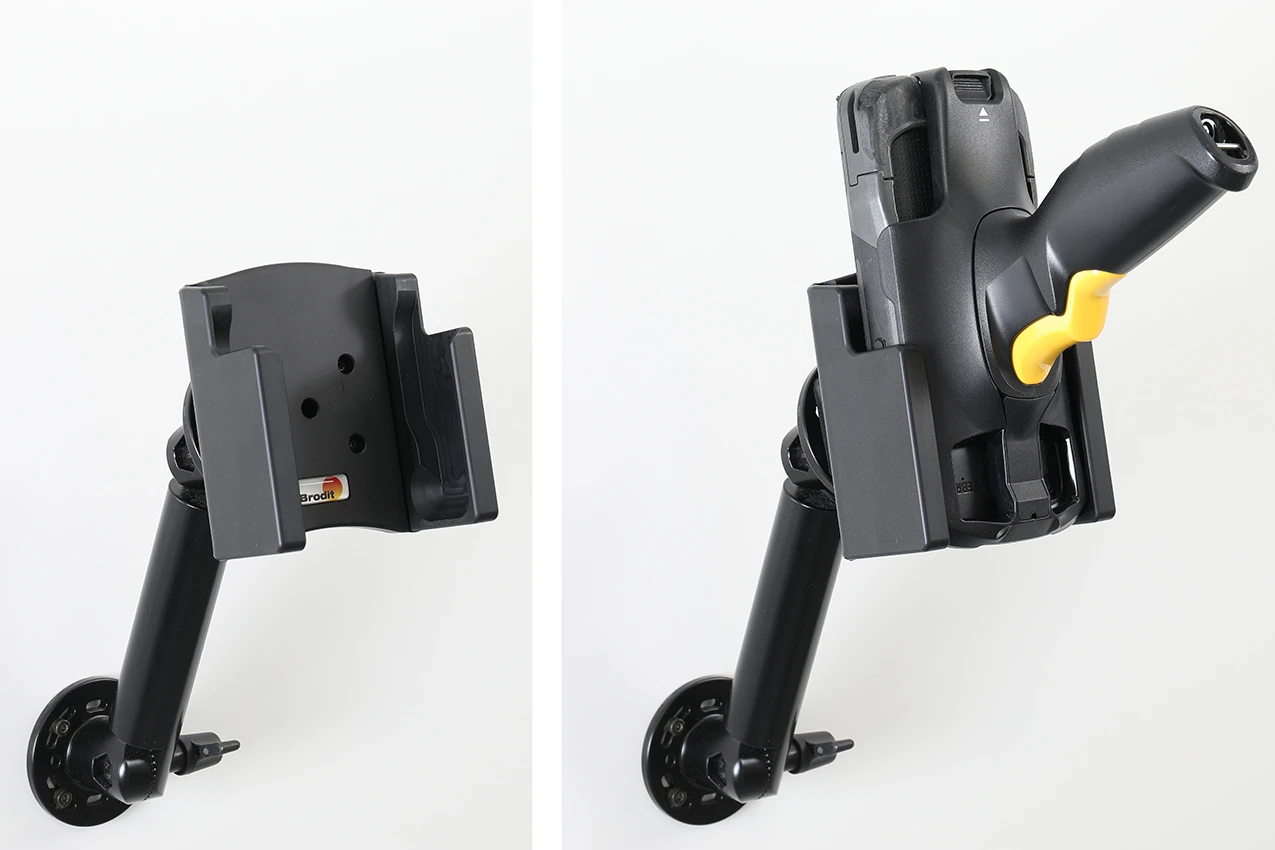

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS plastic. Color: black. Made in Sweden. For easy and optimal installation, attach the holder onto a Pedestal Mount or attach it directly to any surface.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

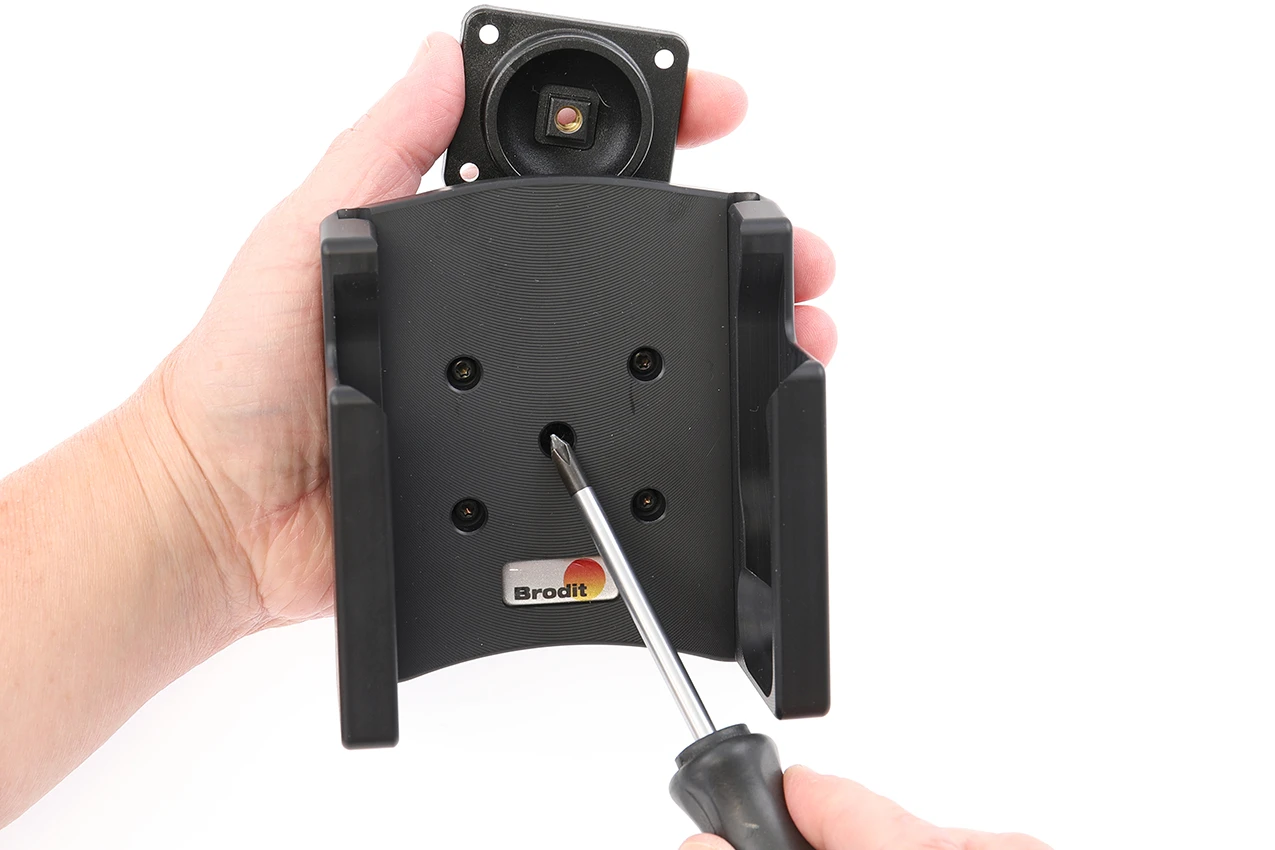

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.

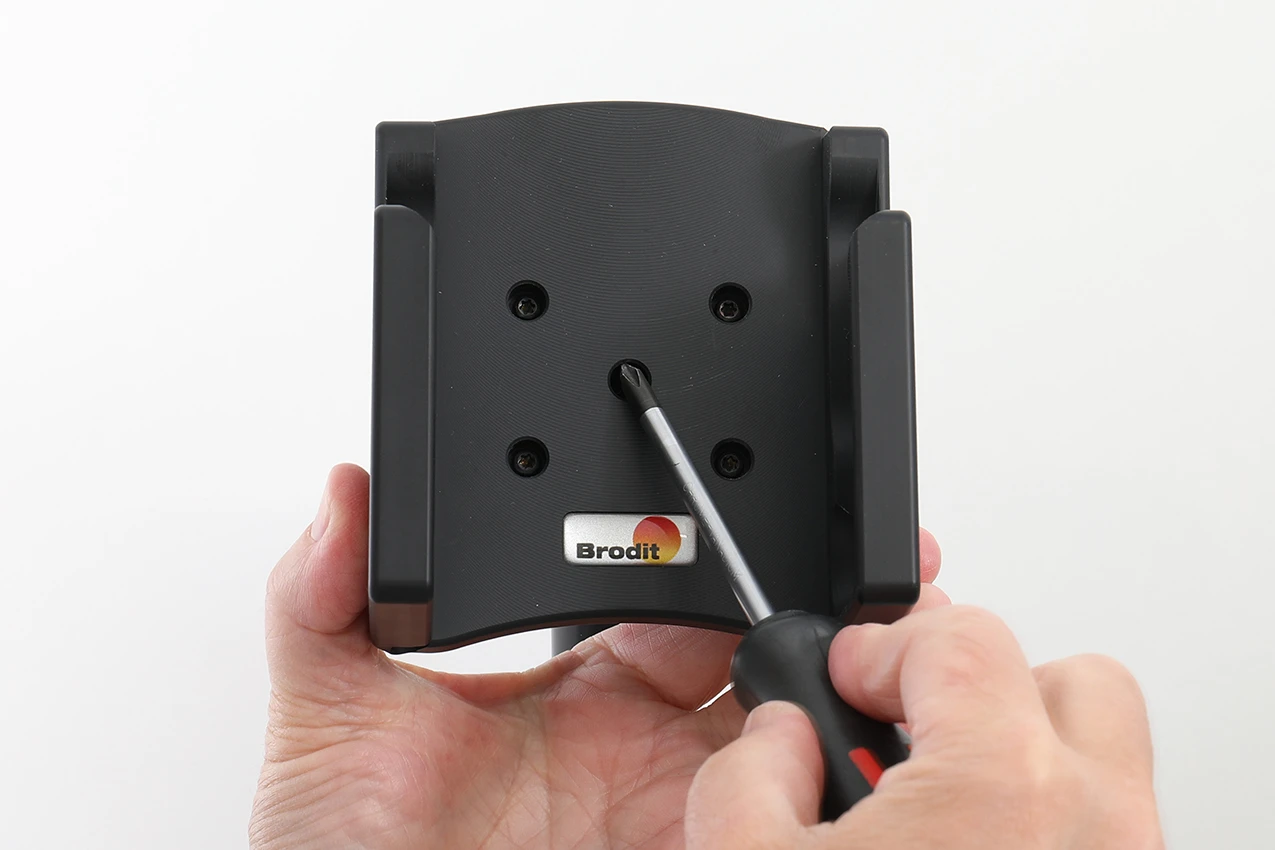

3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw so the holder is firmly in place, but still can be adjusted.

4. The holder is in place.

التوافق

Zebra : TC58e
Zebra : TC58
Zebra : TC53e
Zebra : TC53
