Passive holder with tilt swivel
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

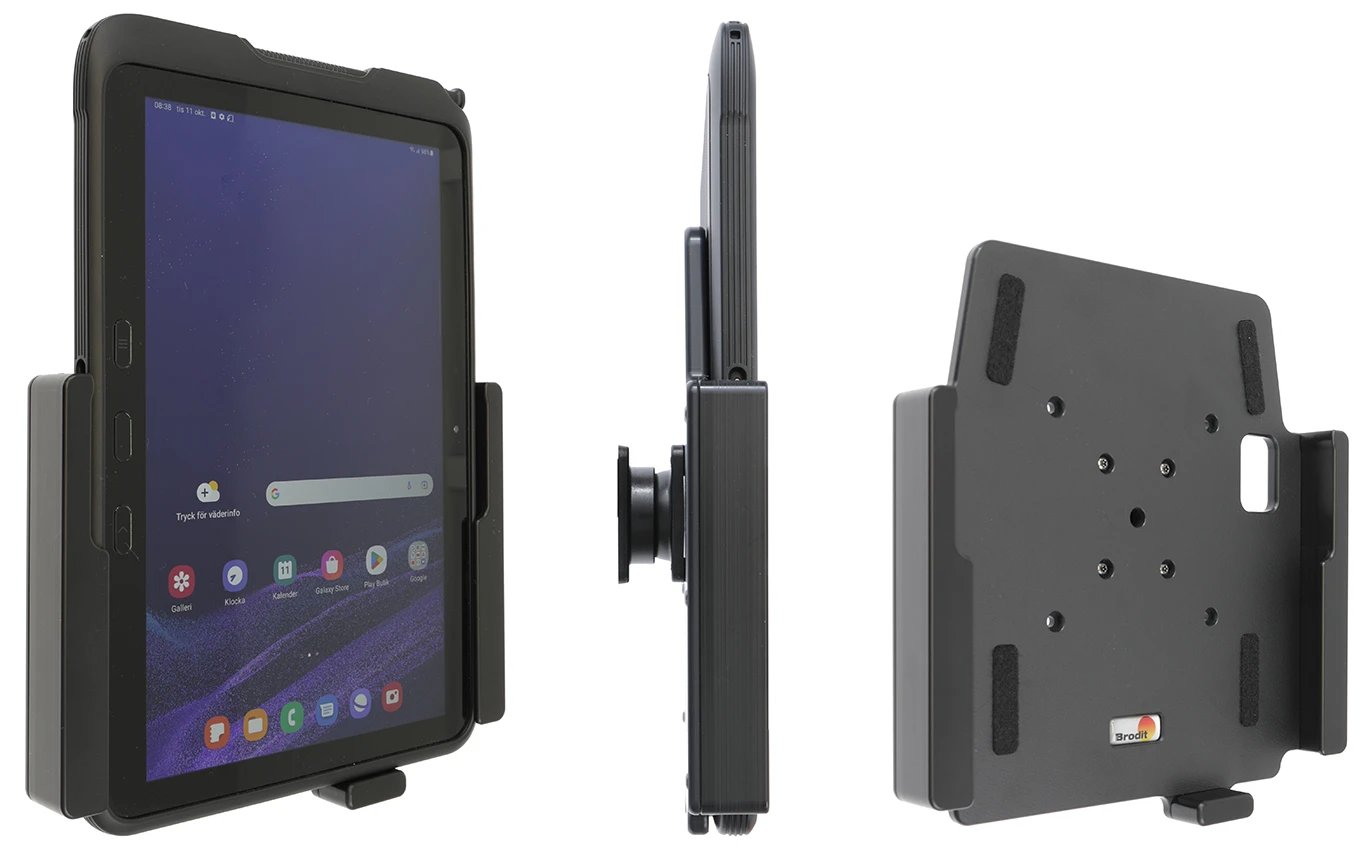

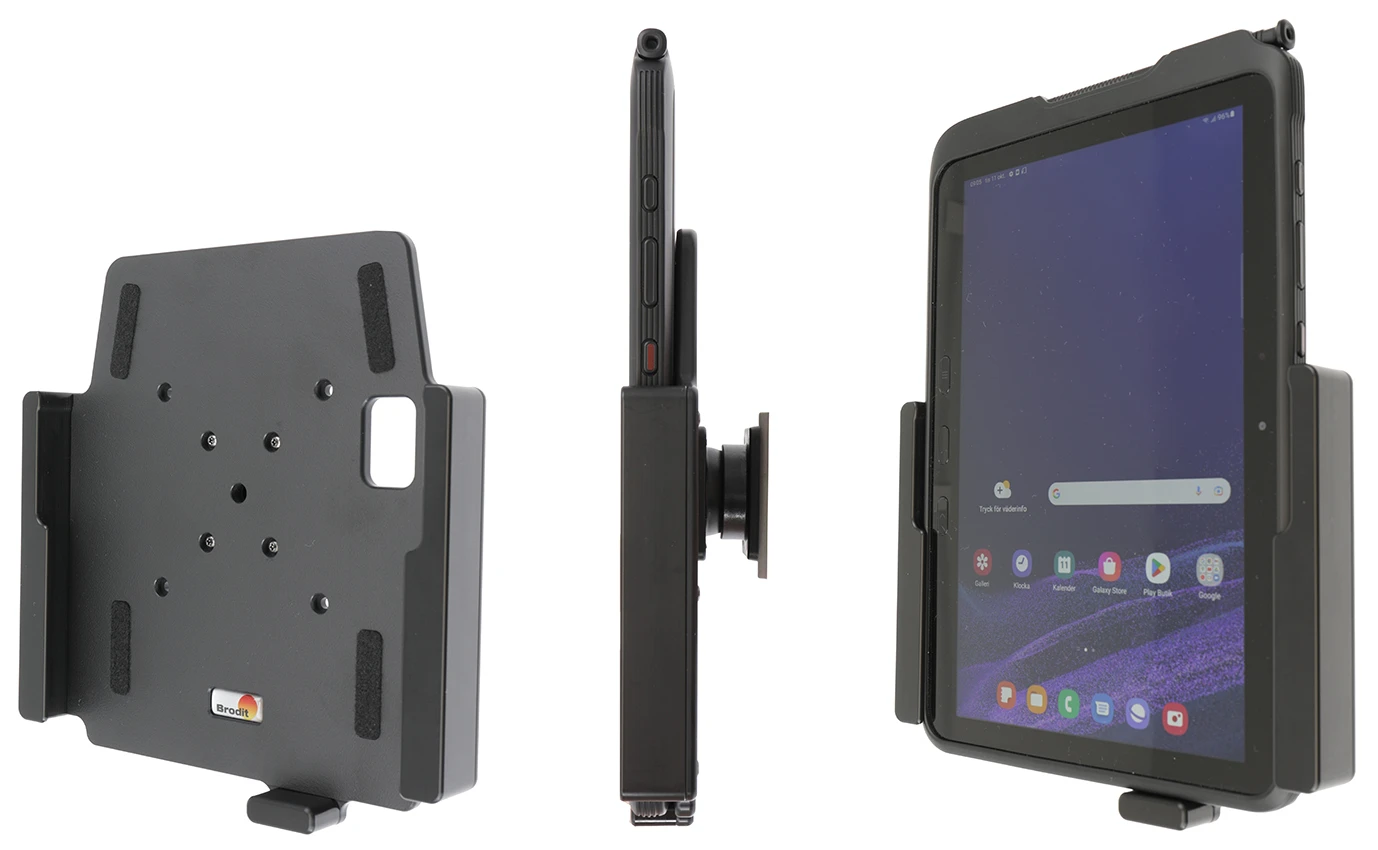

With your tablet in a holder attached in your car you will always have it within easy reach. Safe, neat and convenient! You have full access to the camera and all buttons and outlets when the device is in the holder. You can connect a charging cable to the device when it is in the holder. The passive hodler has a perfect firm fit for device with original skin.
The holder is mounted onto a tilt swivel. This mean that you can adjust the angle in order to avoid light reflection on the screen. You can easily switch between portrait and landscape mode by turning the holder into desired position. It is easy to put the device into place in the holder, and to take it with you when leaving the car. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a Pedestal mount or a headrest mount.
Choose installation placement with care, devices must not be placed in positions where they may block the view or important controls. The cradle should only be attached onto a suitable place. Installations always take place at the customer's own discretion and responsibility.
دليل تركيب المنتج
رقم الخطوة 1

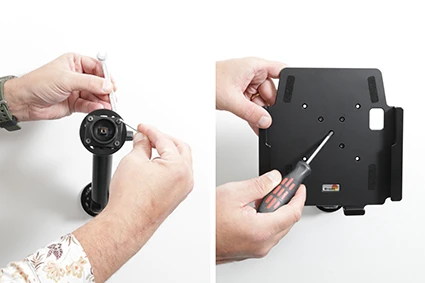

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 2

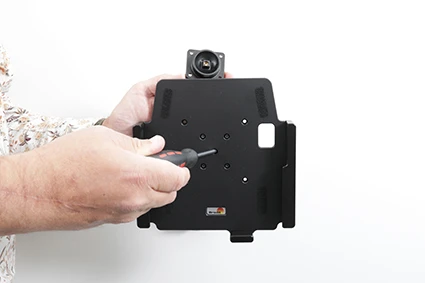

Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.
رقم الخطوة 3

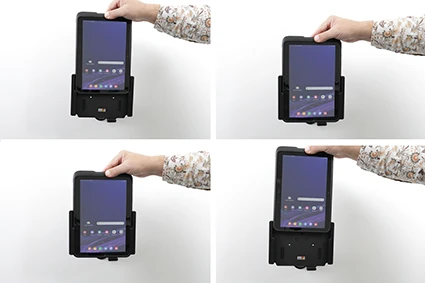

To place the device in the holder: Place the lower part of the device into the holder where the opening between the sidewalls is widest. Flip the upper part of the device forward so the device goes flat into the holder. Slide the device straight downward into the holder. To remove the device from the holder: Press the device straight upward so the lower part reaches the widest part of the opening between the sidewalls. Flip the upper part of the device away from the holder and lift the device out from the holder.
رقم الخطوة 4

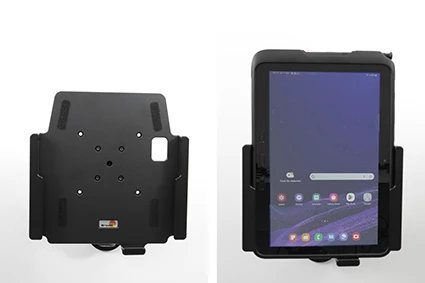

The holder is in place.
