Passive holder with tilt swivel
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

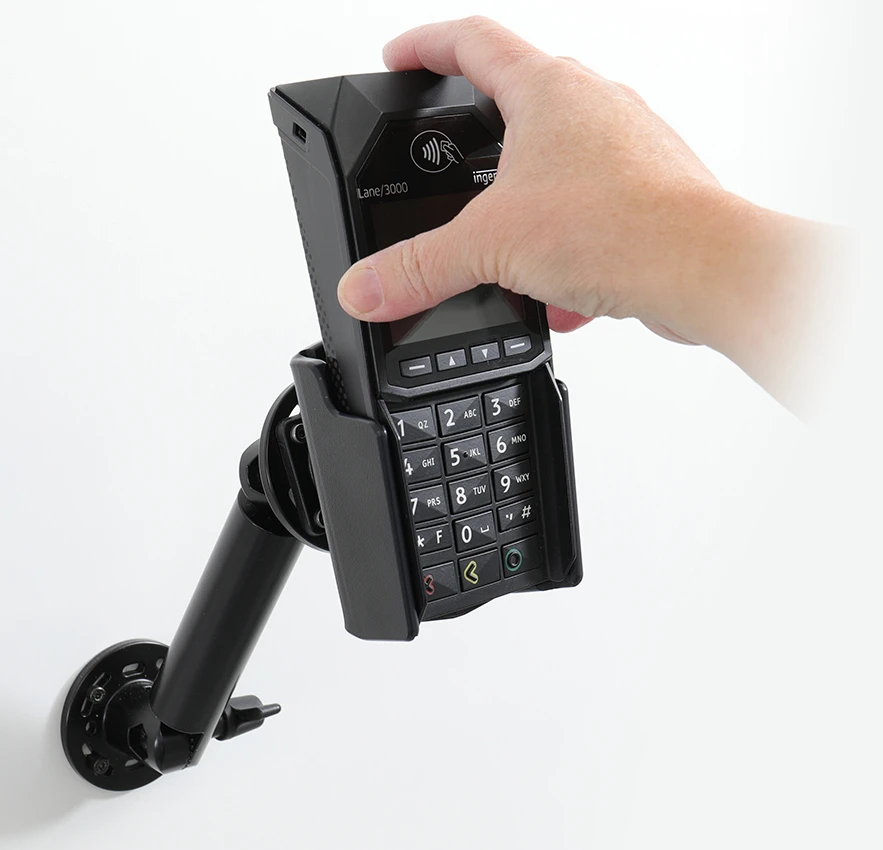

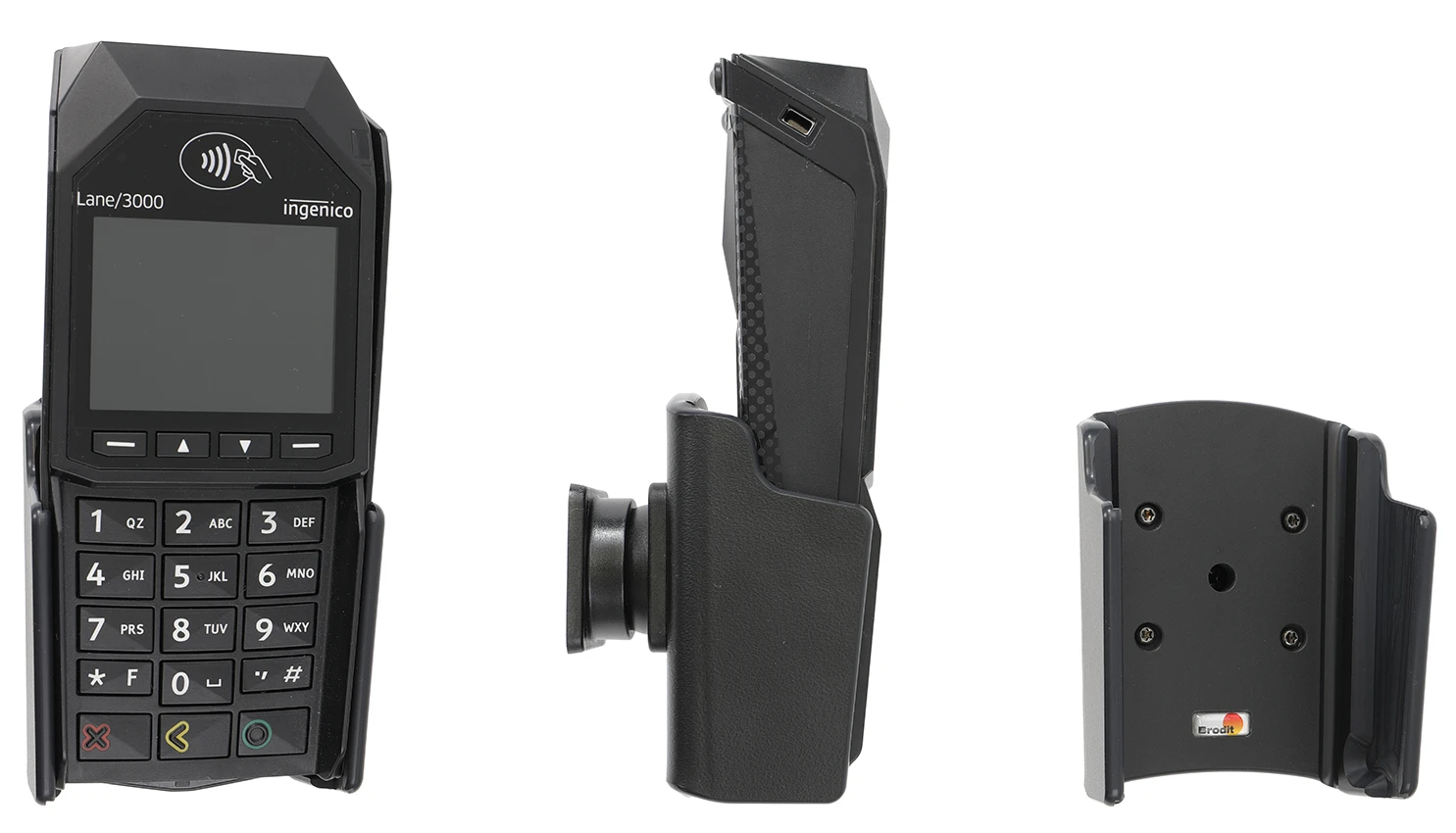

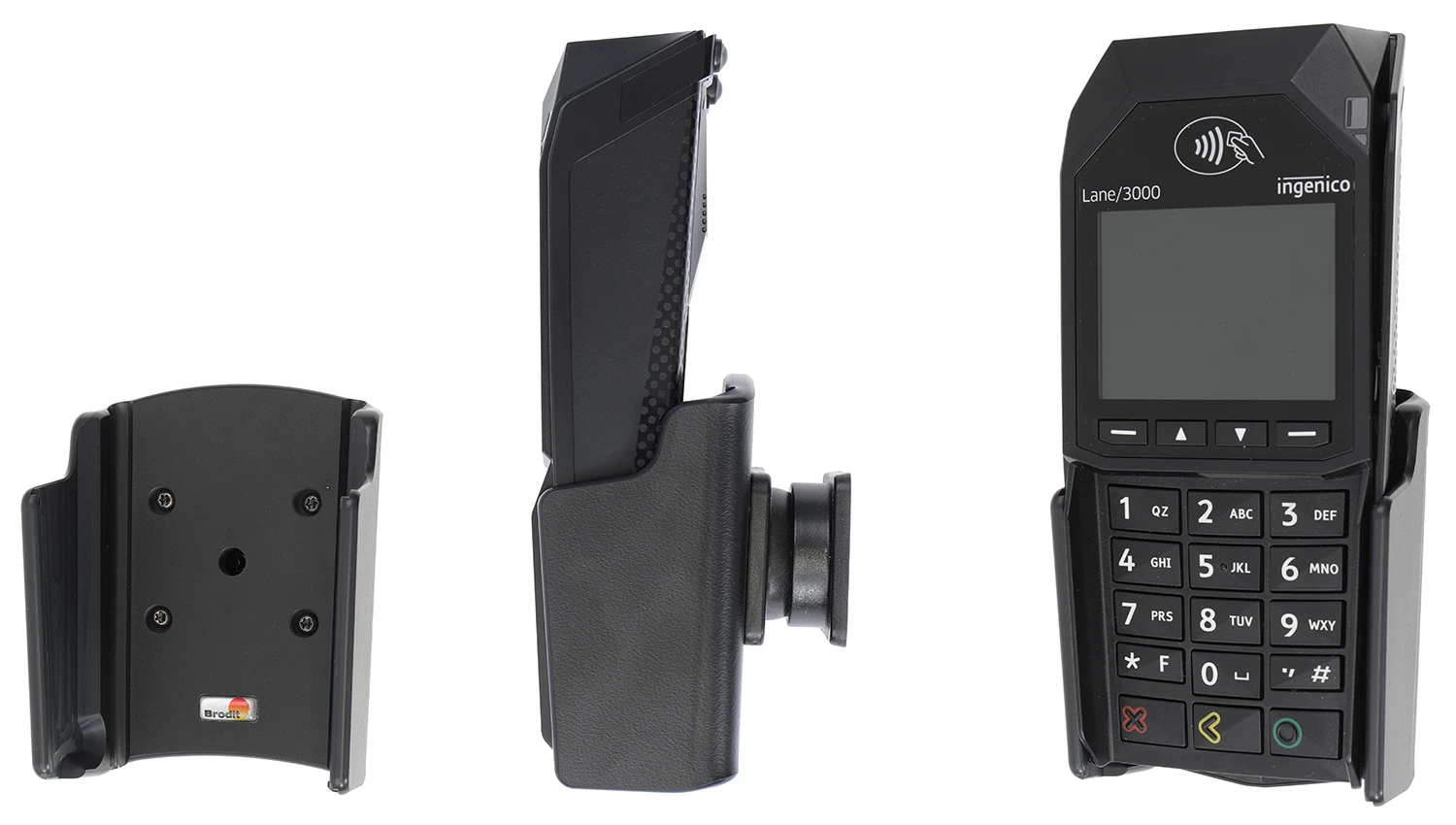

This holder offers an easy and secure way to mount your printer within easy sight and reach all work day! Combining functionality and convenience, Brodit products contribute to an improved working environment. Custom made holder with a perfect, firm fit. It is easy to slide the printer in place in the holder with a one-hand grip, and to take it out of the holder when you need to take it with you.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing and operating. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS plastic. Color: black. Manufactured in Sweden. Attach onto a Pedestal Mount or ProClip mounting platform.
دليل تركيب المنتج
رقم الخطوة 1

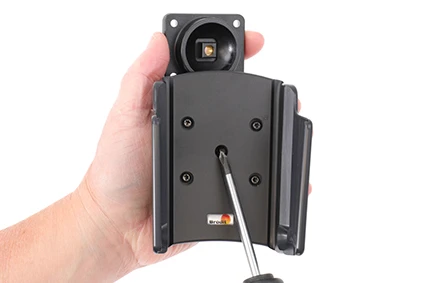

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 2

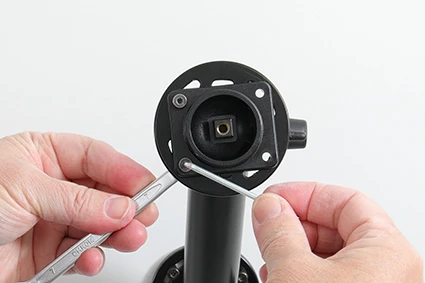

Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.
رقم الخطوة 3

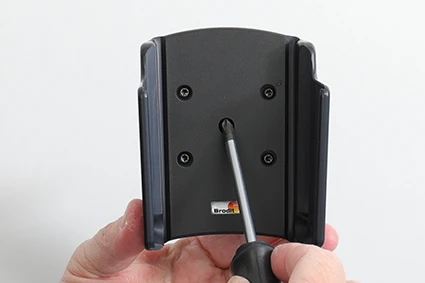

Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 4

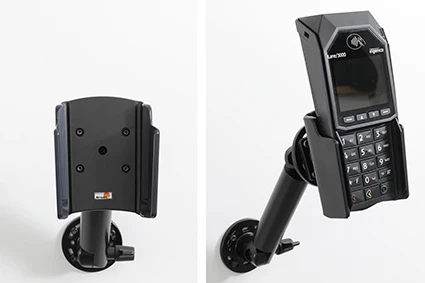

The holder is in place.
