Passive holder with tilt swivel
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

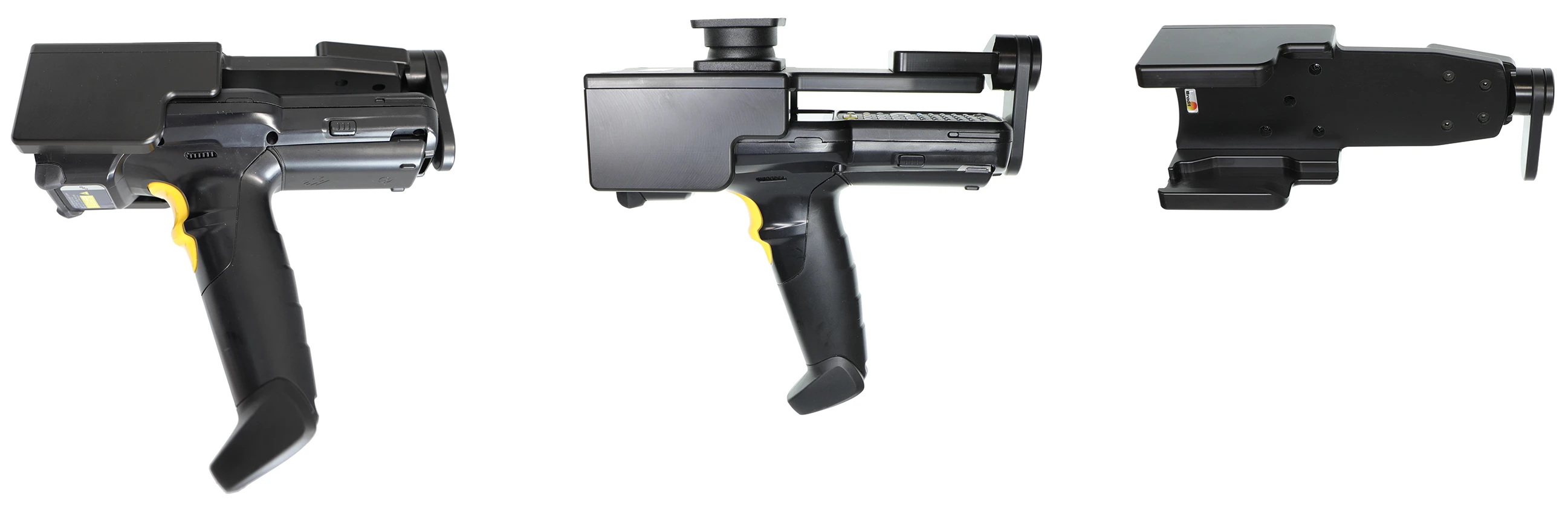

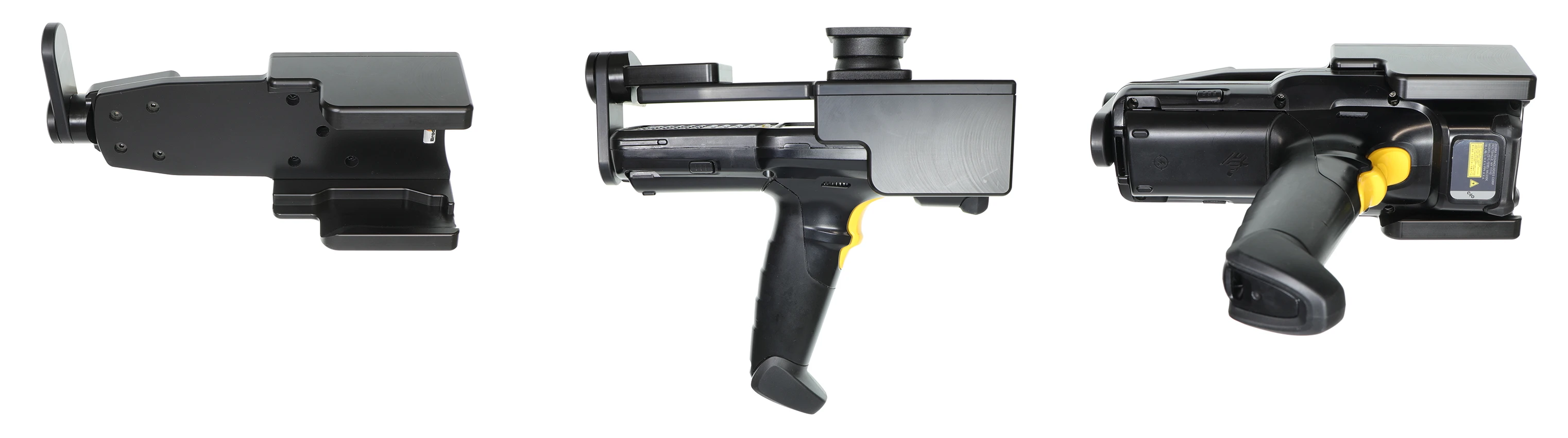

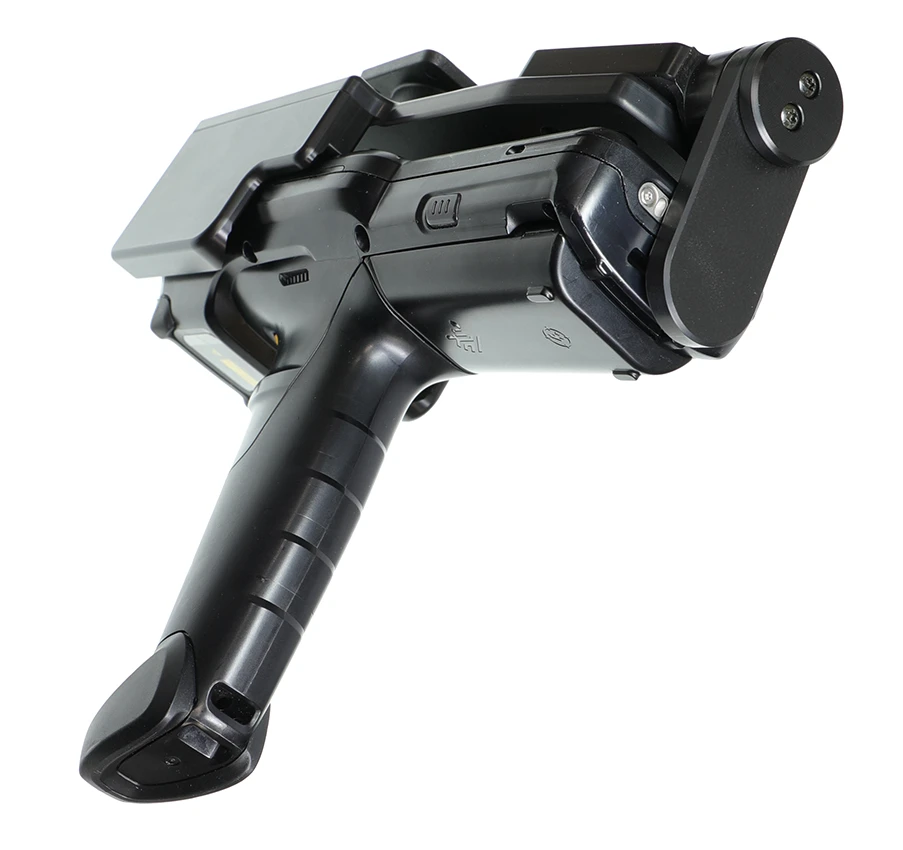

Custom designed holder with a perfect fit for all Zebra MC3300 versions with pistol grip. The device is held into place firmly with the display facing the holder, allowing for easy insert/removal when using the pistol grip. Robust design, very strong construction for every day professional use in rough environments. Keep your device in a passive holder and you will always have it within easy reach! Neat, discreet and convenient.
The holder is equipped with a tilt swivel so you can easily adjust the angle of the device. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a Pedestal Mount.
دليل تركيب المنتج
رقم الخطوة 1

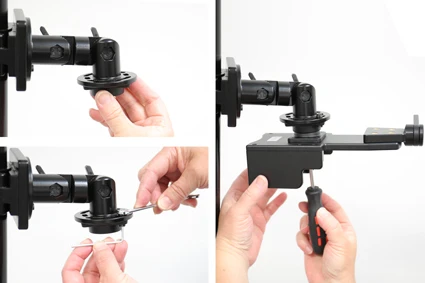

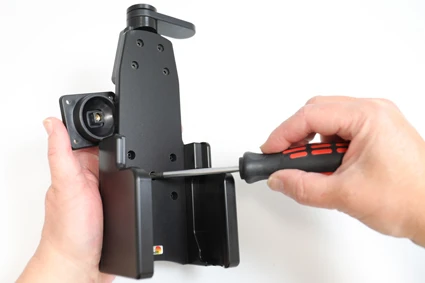

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 2
Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 3

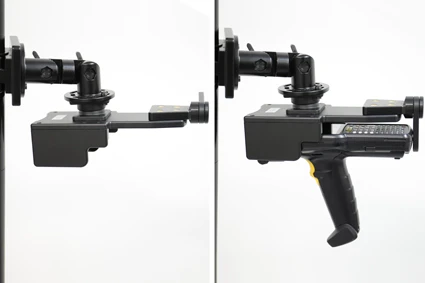

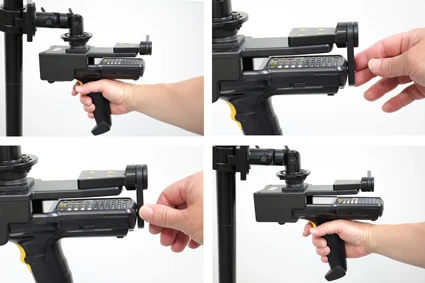

To place the device in the holder: Hold the device in front of the holder and slide it straight into the holder. Turn the swiveling top over the device. To remove the device from the holder: Turn the swiveling top sideways so the device is set free. Pull the device straight out from the holder.
رقم الخطوة 4
The holder is in place.
