Passive holder with tilt swivel
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

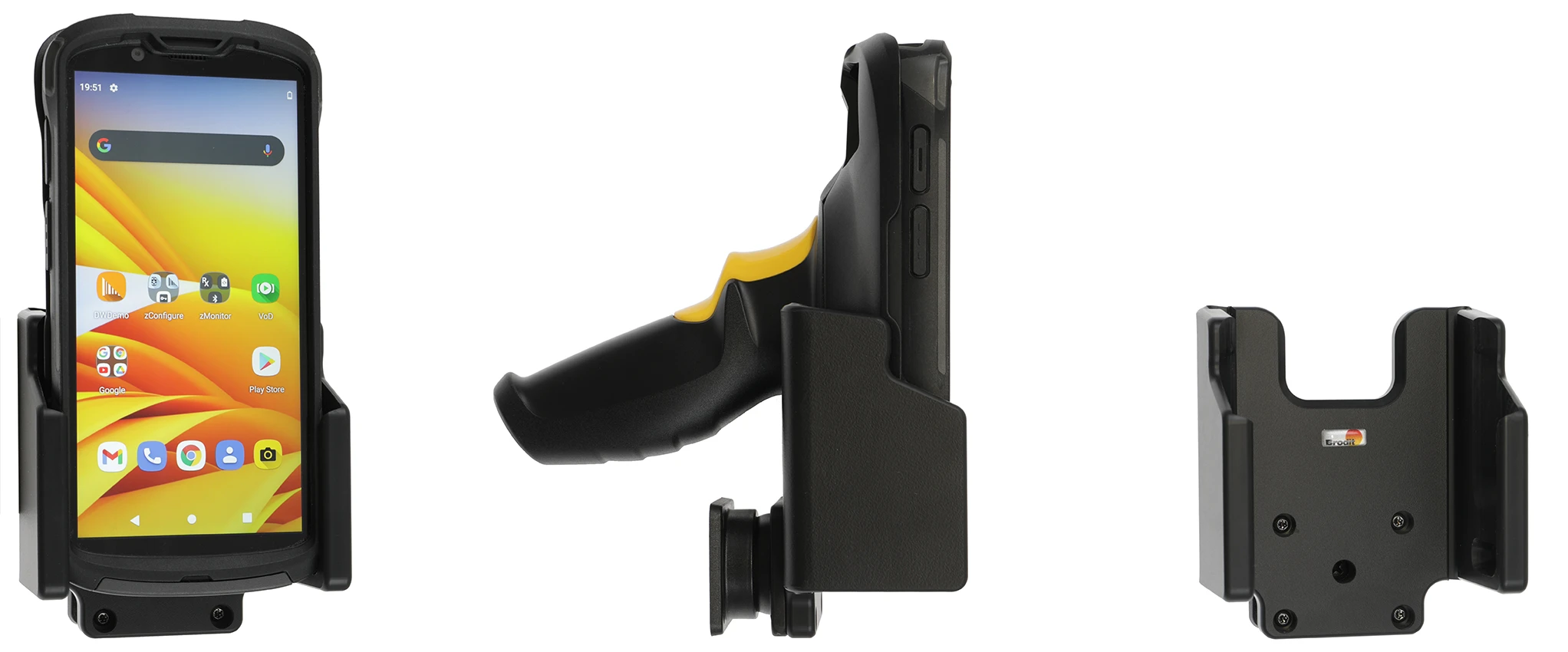

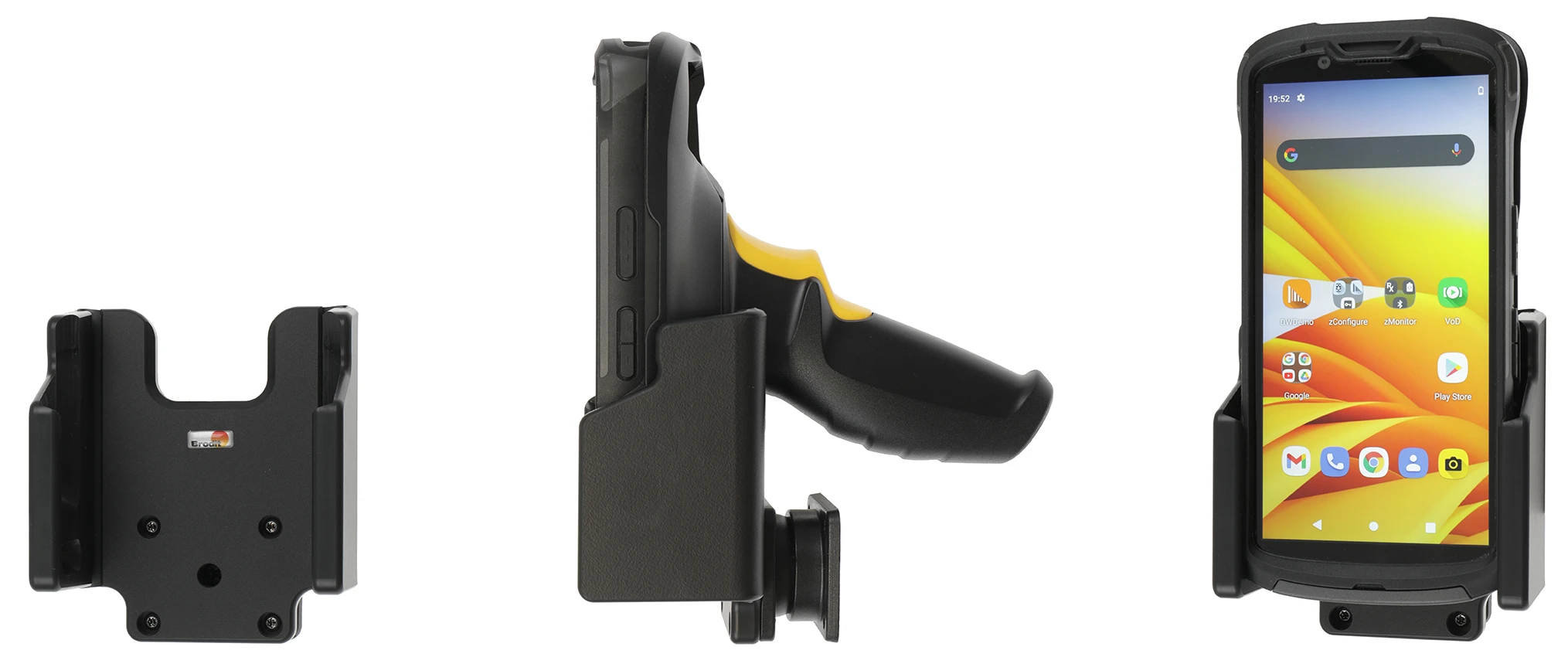

Keep your unit in a passive holder and you will always have it within easy sight and reach! Neat, discreet and convenient. Custom made with a perfect, firm fit. You have full access to all buttons and outlets when the device is in the holder. You can connect a charging cable or portable handsfree to the device when it is in the holder.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Color: black. Made in Sweden. Attach onto a Pedestal Mount.
دليل تركيب المنتج
رقم الخطوة 1

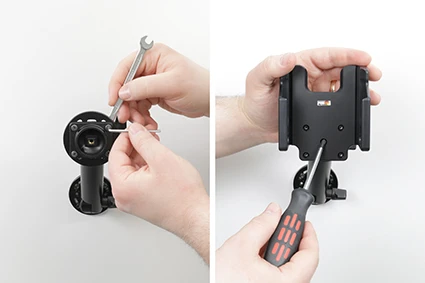

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 2

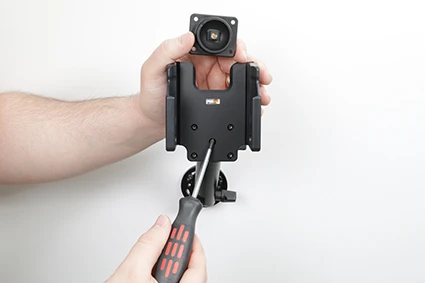

Place the attaching plate on desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the tilt swivel fits. Screw the holder onto the attaching plate.
رقم الخطوة 3

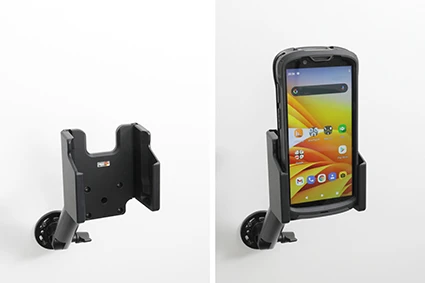

Put the device in place: Hold the device above the mount. Slide/press it straight into the mount so it is porperly held in place. Remove the device: Pull the device straight out from the mount.
رقم الخطوة 4

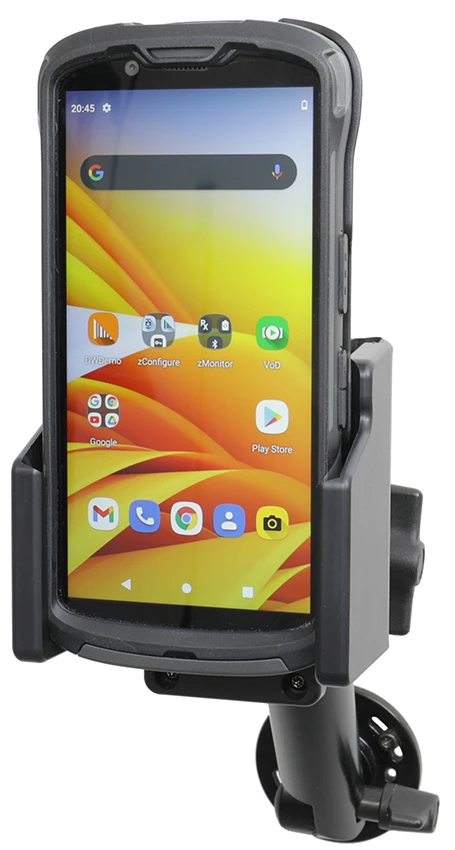

The holder is in place.
