Passive holder with tilt swivel
56 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

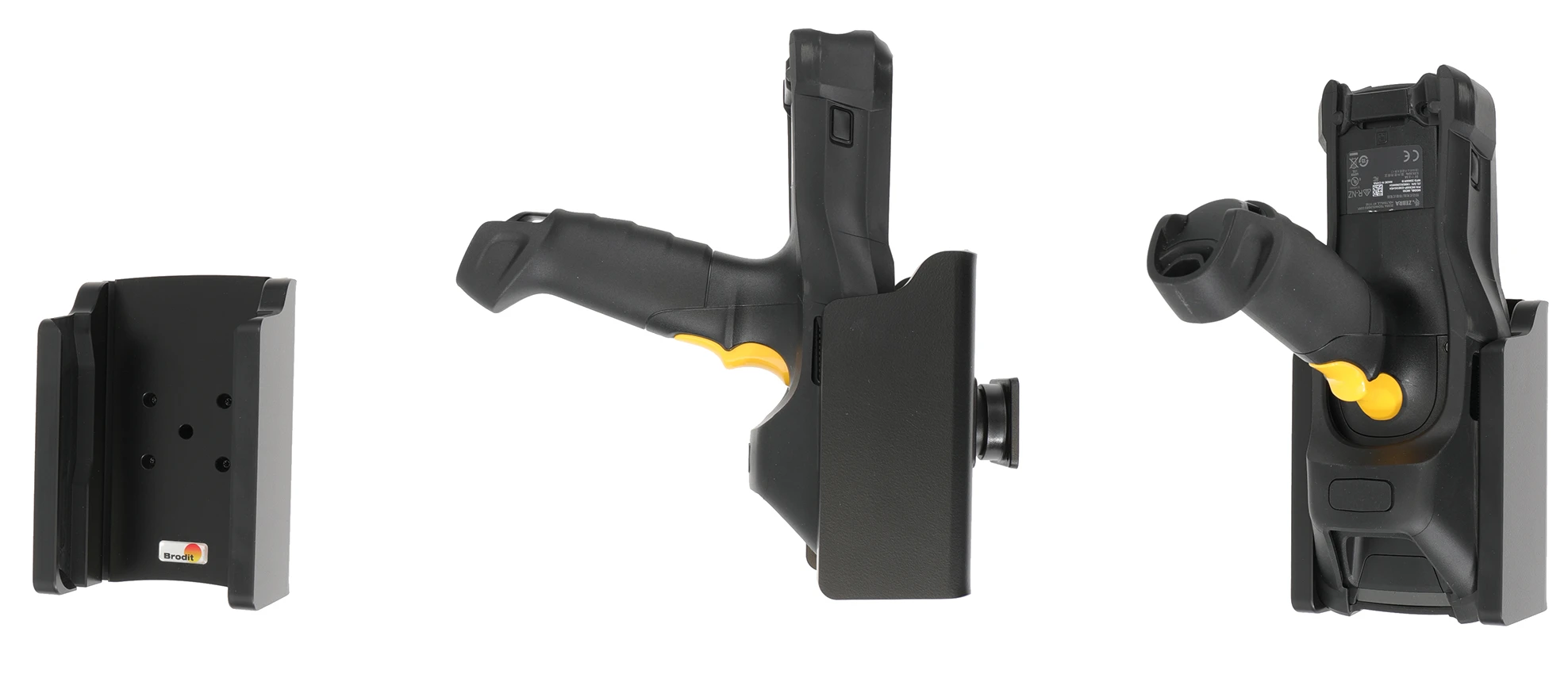

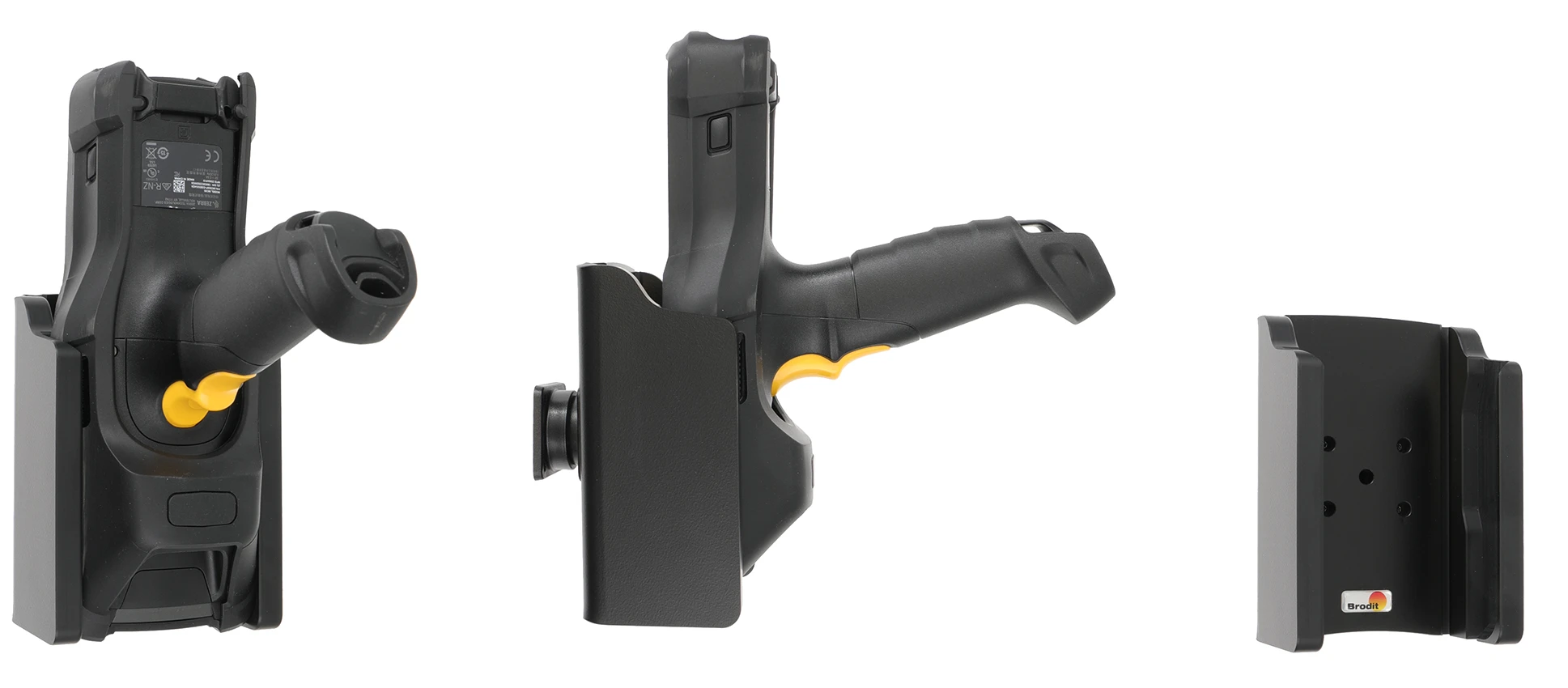

Keep your device in a passive holder and you will always have it within easy sight and reach! Safe and convenient, provides for a better work environment. Custom made with a perfect, firm fit for device with pistol grip. The device is placed face downward/inward in the holder so it is easy to place it in the holder and take it with you with a one-hand grip.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a Pedestal Mount.
دليل تركيب المنتج
رقم الخطوة 1

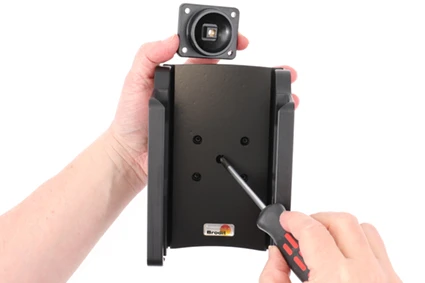

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 2

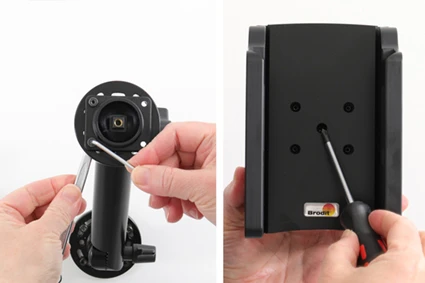

Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 3

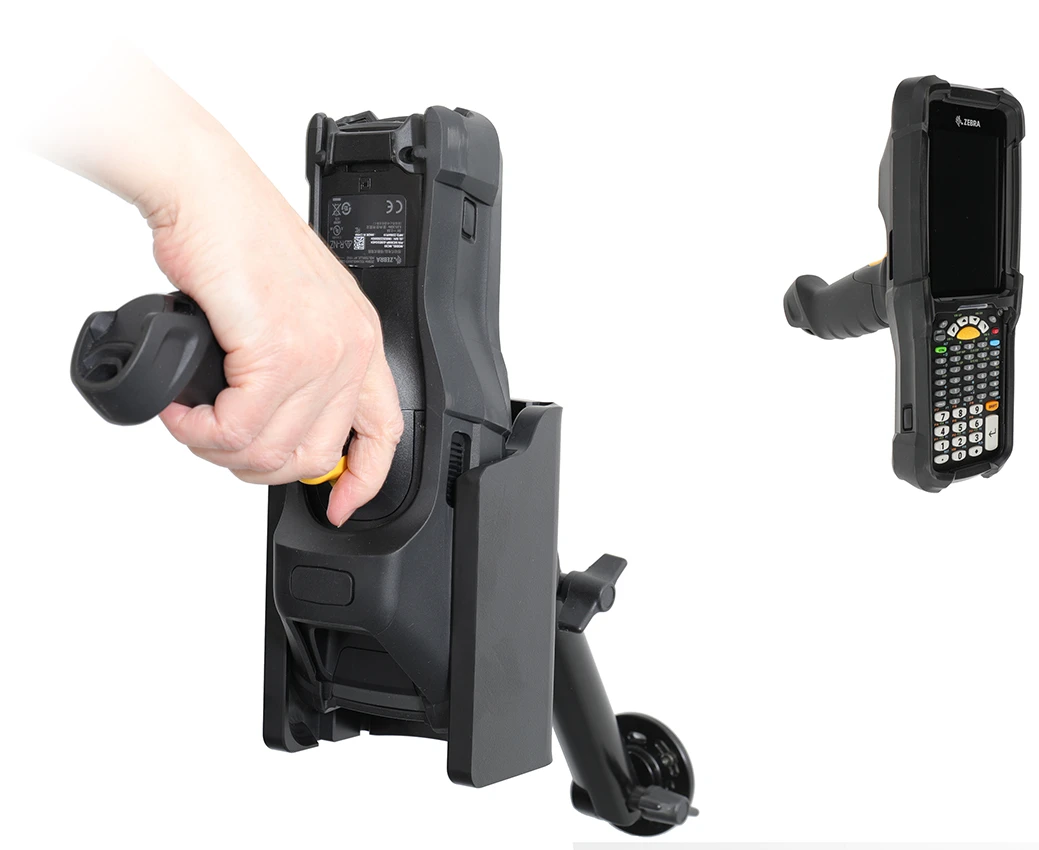

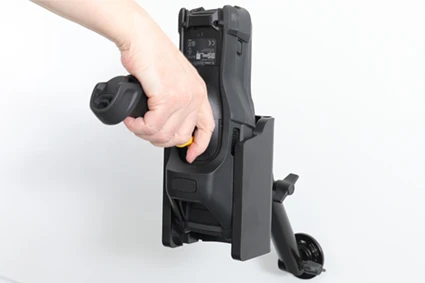

Put the device in place: Hold the device above the mount. Slide/press it straight into the mount so it is porperly held in place. Remove the device: Pull the device straight out from the mount.
رقم الخطوة 4

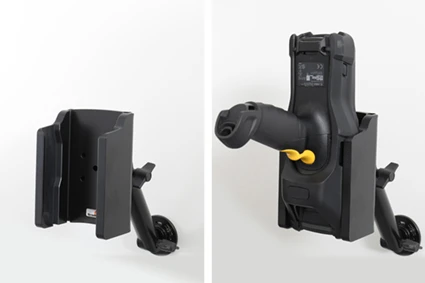

The holder is in place.
