الوصف

With top support for an extra firm installation. Only for horizontal position.

معلومات فنية

The choice for you who want to have you PDA firmly in place, properly attached and still within easy reach. The holder has a strong, robust design to withstand rough handling in professional use. The swiveling top part keeps your device extra securely in place in the holder, it "locks" the device in the holder so that it can not shake the least. It is easy to place the PDA in the holder, and to take it with you when leaving the vehicle. You can attach e.g. a charging cable to the device while in the holder. The holder is equipped with a tilt swivel so you can easily adjust the angle for good viewing. Attach onto a ProClip Mounting Platform or a Pedestal Mount.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

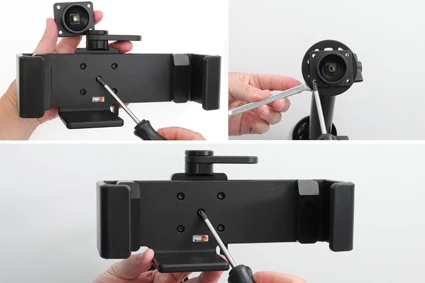

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.

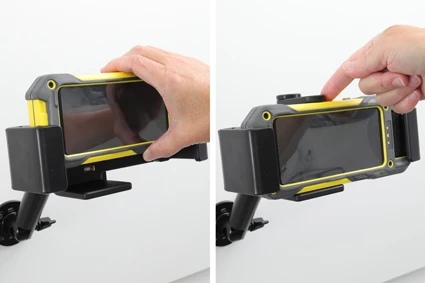

2. To place the device in the holder: Place the device over the holder and slide it straight downward into the holder. Turn the swiveling top support sideways in order to "lock" the device in place in the holder.

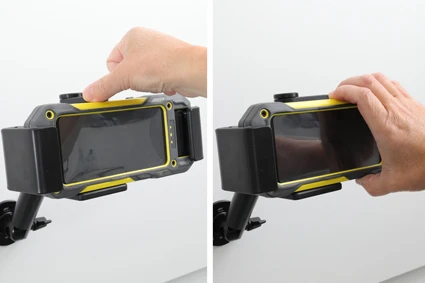

3. To remove the device from the holder: Turn the swiveling top support sideways in order to set the device free. Lift the device straight upward, out from the holder.

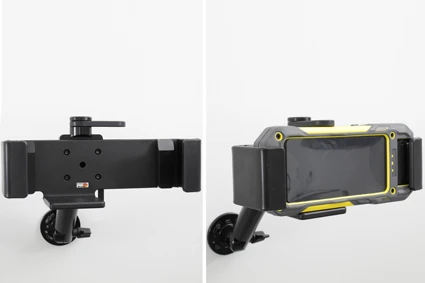

4. The holder is in place.

التوافق

• Cognex : MX-1000
• Cognex : MX-1502
